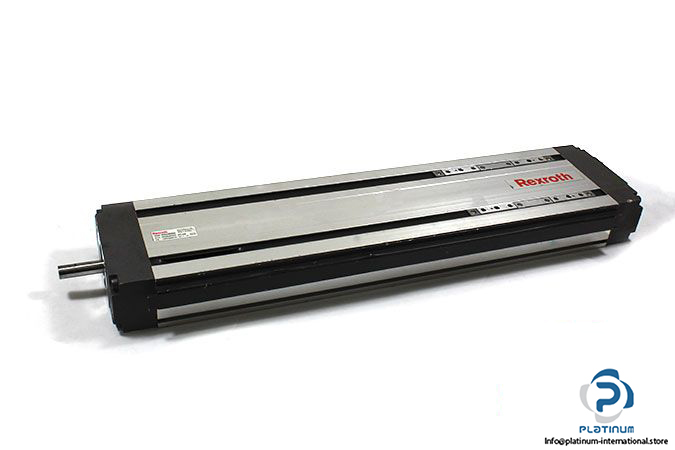

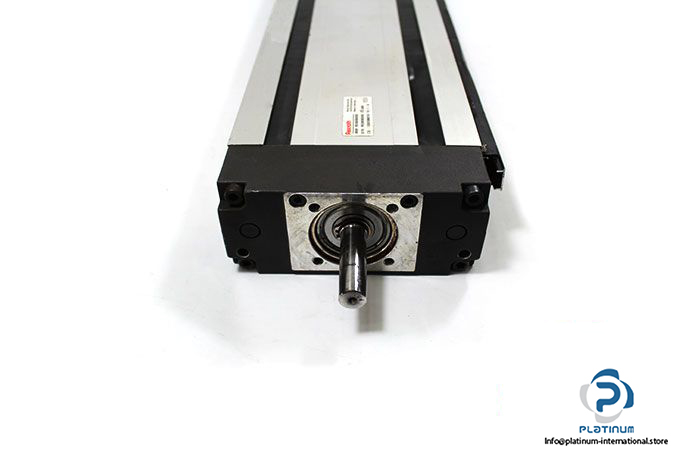

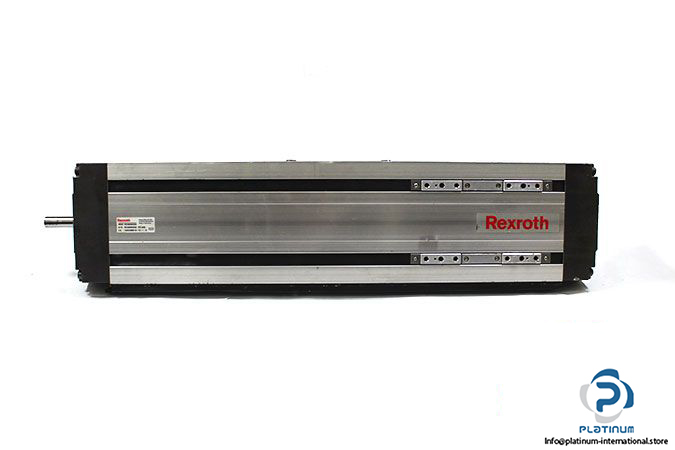

Rexroth R036050000 CKK-Compact Module With Ball Screw Drive
Used
In stock1 unitReady to ship
2 000,00$
Compact Linear Module Bosch Rexroth compact linear module with ball screw drive, designed for high-precision linear motion, heavy load handling, and reliable positioning in industrial automation systems.
ActuatorassemblyAutomationAxisBallBoschCompactControlDriveIndustrialLinearModuleMotionPositioningPrecisionRexrothscrewSysteSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

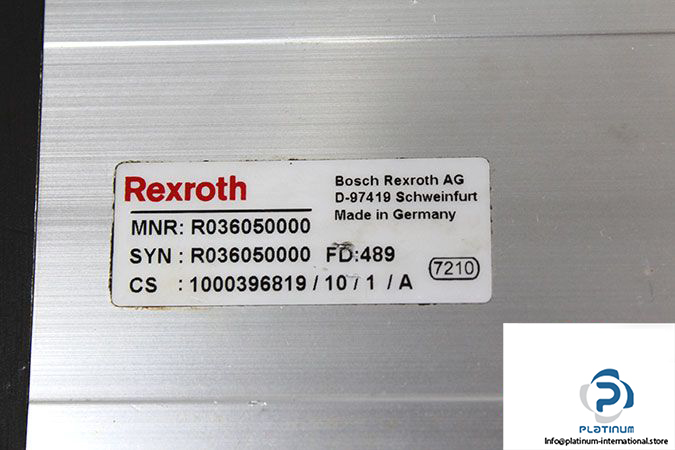

| MNR | R036050000 |
| CS No. | 1000396819/10/1 |
| FD | 489 |
| Code | 7210 |
| Size | 145 |
| Linear axes variant | Ball screw assembly |
| Ball Screw Diameter | 14 mm |

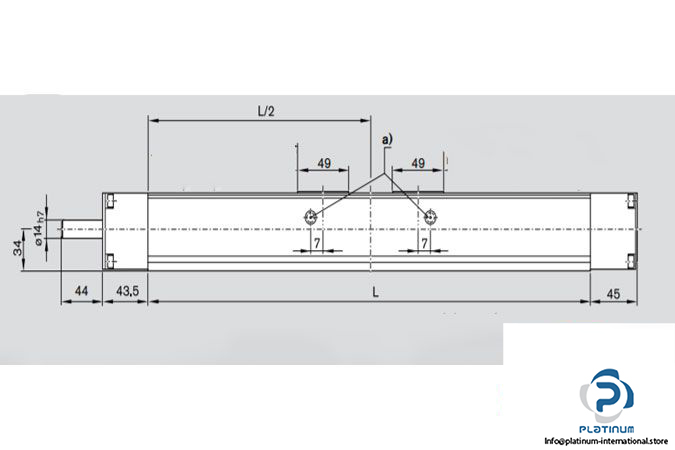

| Length | 548 mm |
| linear velocity | max. 1.27 m/s |
| Acceleration rate | max. 50 m/s² |
| linear Speed | max. 2.53 m/s |
| Maximum drive torque | max. 26.14 Nm |
| Drive direction | CW (Clockwise) |
| Gear ratio | 1 |
| Fz1 | max. 28800 N |
| Fz2 | max. 28800 N |
| Fy | max. 13660 N |
| Dynamic Load Capacity | guideway Cgw: 76025 N, fixed bearing Cfb: 17000 N |

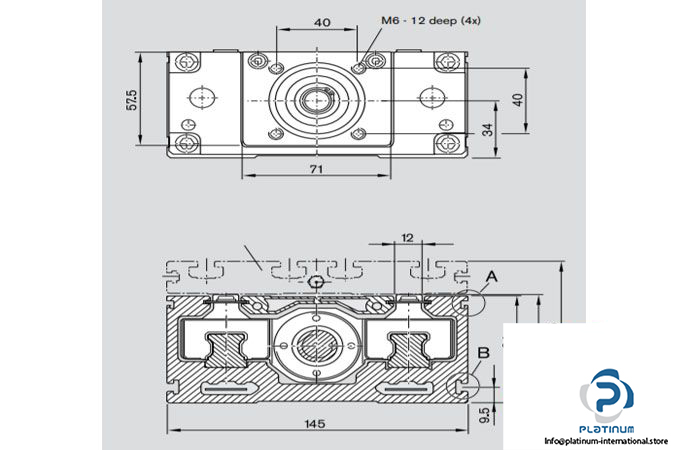

| Profiled rail system A | 145 mm |
| Profiled rail system H1 | 85 mm |
| Profiled rail system H2 | 64 mm |
| Condition | Used |
| SKU | 967297 |
| Weight | 13,8 |
