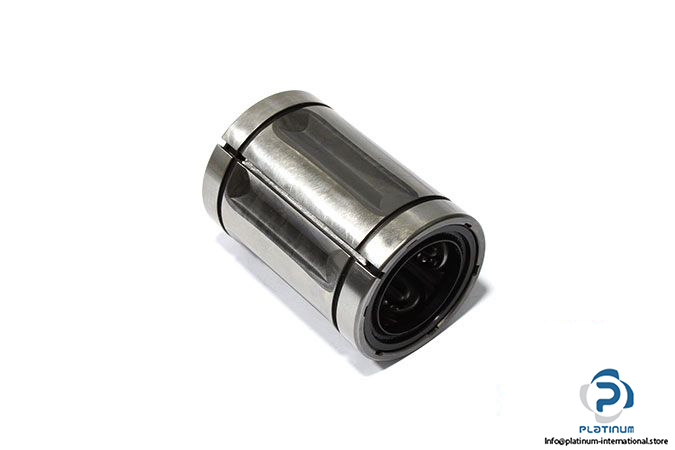

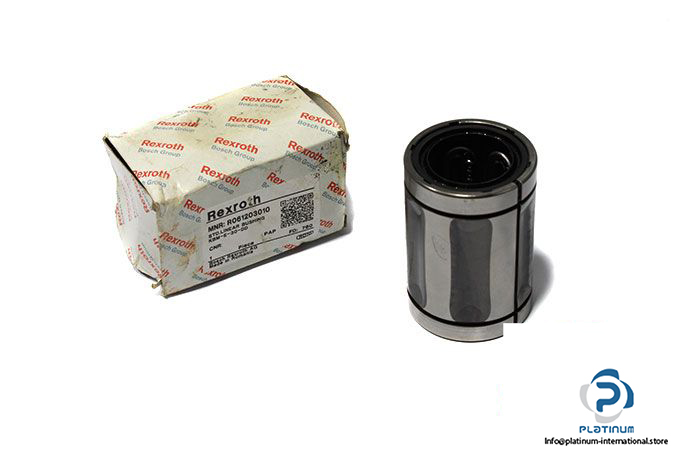

Rexroth R061203010 Standard Linear Bushing

Manufacturer: BOSCH REXROTH

Type: Standard Linear Bushing Adjustable KBM-E-30-DD

MNR: R061203010

Shaft diameter d₀: 30 mm

Form: Adjustable

Rows of Balls: 6

Friction Force F_R: 6 N

Breakaway Force: 18 N

Maximum Acceleration Travel a_max: 100 m/s²

Max. Permissible Speed v_max: 2.5 m/s

Dynamic Load rating:

C_min: 2820 N

C_max: 2980 N

Static Load rating:

C_0min: 2230 N

C_0max: 2860 N

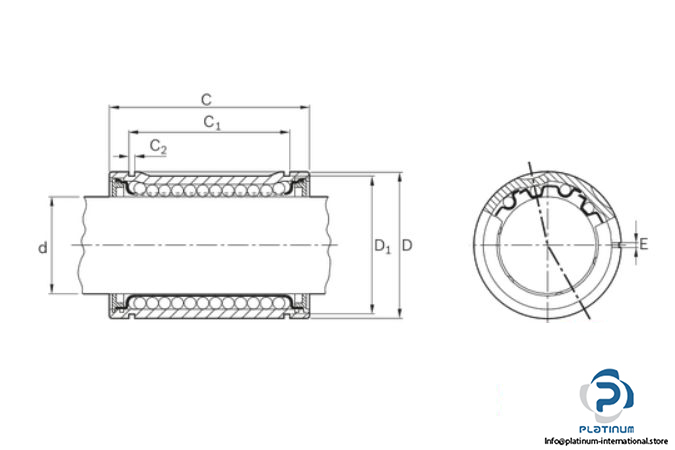

Dimensions:

D: 47 mm

C: 68 mm

E: 2 mm

Seals: With two integrated wiper seals

Permissible Ambient Temperature: -10 … +80 °C

Weight: 0.3 kg
