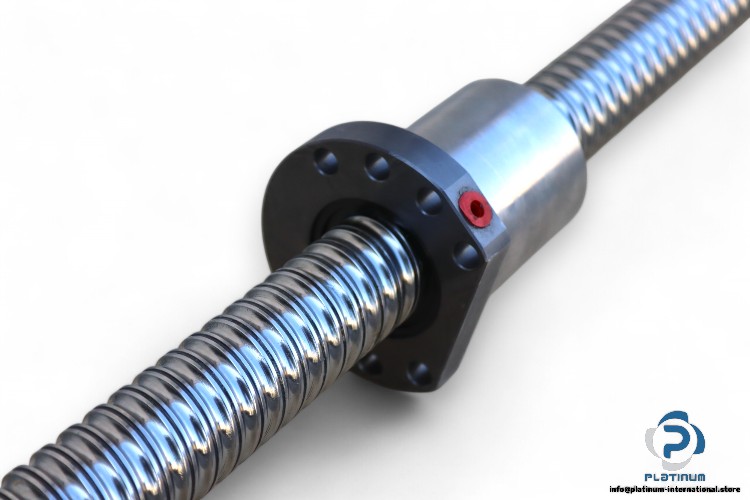

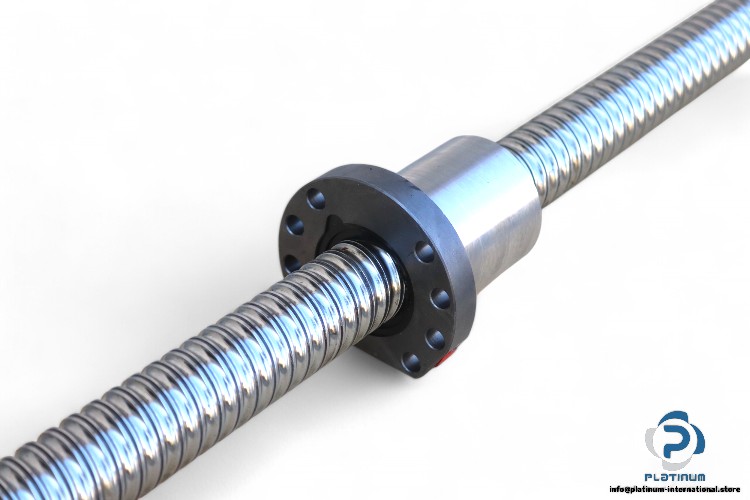

Rexroth R150347085 Ball Screw
New
In stock1 unitReady to ship
999,99$
Manufacturer:
Rexroth
Type:
Flange Nut Ball Screw
Model:
R150247085 (MNR Screw with bearing: R15104E783)
Nominal Diameter:
40 mm,
Lead:
20 mm
With a dynamic load rating of 45500 N and static load rating of 62800 N, this screw features a flange diameter of 93 mm and a threaded length of 2330 mm.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Flange Nut Ball Screw (Single Nut with Flange FEM-E-C)
Manufacturer: Rexroth
Type: Flange Nut Ball Screw (Single Nut with Flange FEM-E-C)
MNR: R150247085

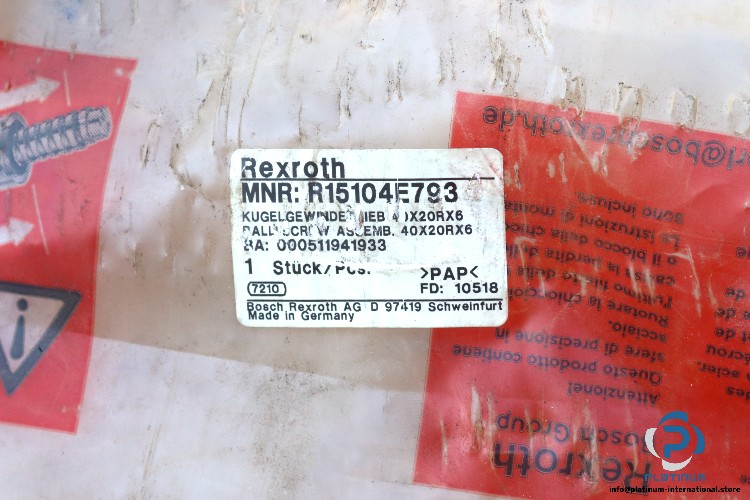

MNR Screw with bearing: R15104E783
Size: 40 x 20 R
Nominal Diameter (dN): 40 mm
Lead (P): 20 mm
- Ball Diameter: 6 mm
- Number of ball track turns: 3
- Number of starts: 2
- Direction of Lead: Right-Hand Thread

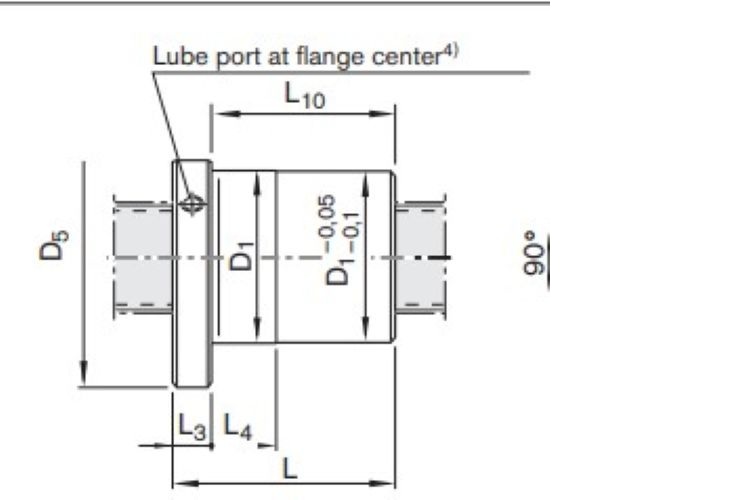

- Dimensions:
- Flange diameter: 93 mm
- Nut outer diameter: 63 mm
- Nut length: 88 mm
- Flange thickness: 15 mm
- Cutting flange width: 81.5 mm

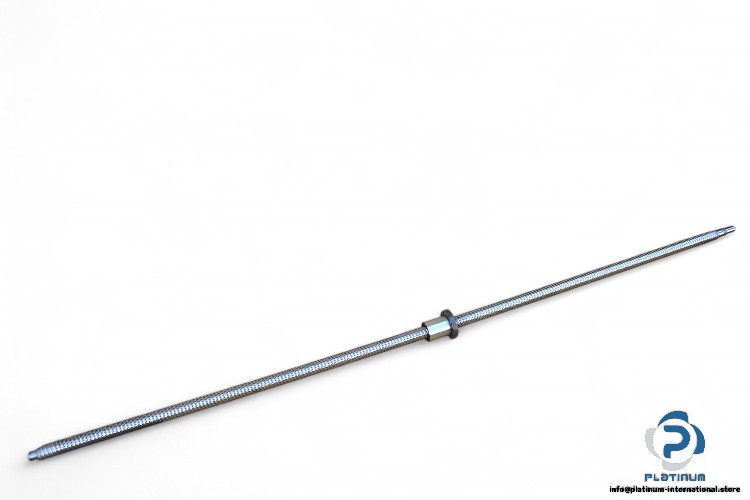

- Threaded length: 2330 mm
- Total screw length: 2440 mm

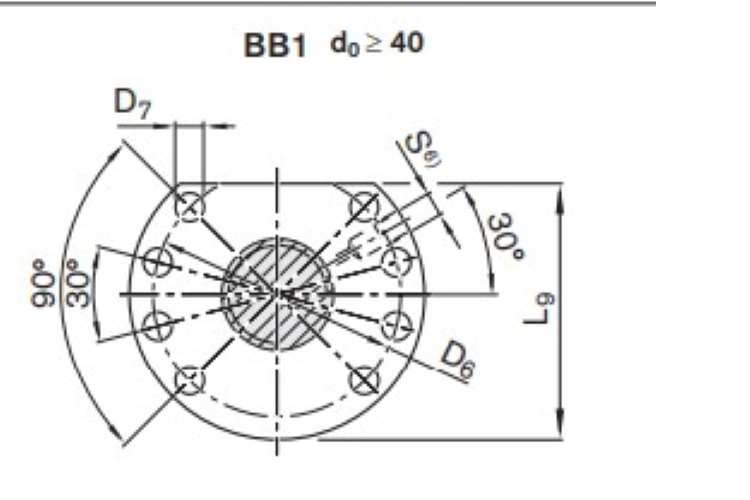

- Hole pattern: BB1
- Lube port machining: M8x1
Load Rating:
- Dynamic: 45500 N
- Static: 62800 N
- Linear speed: 75 m/min
- Operating temperature: -10 °C to 80 °C
