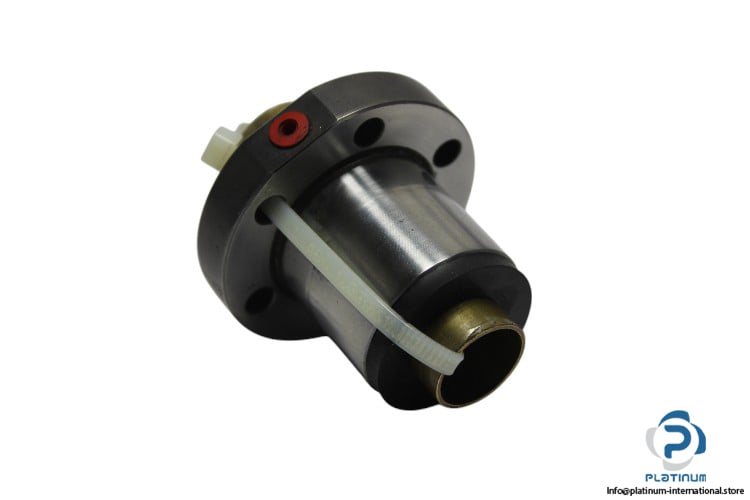

Rexroth R151321013 Flanged Single NUT
New
In stock1 unitReady to ship
399,99$
Flanged Single Nut FEM-E-S
The Rexroth Flanged Single Nut FEM-E-S features a 25 mm nominal diameter, 5 mm lead, and excellent dynamic and static load capacities, making it perfect for high-precision industrial applications.255bearingCapacityComponentdiameterDynamicFEM-E-SflangedforHighIndustrialleadLoadmmMotionNominalnutPrecisionR151321013RexrothRight-HandSingleSystemsThread
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Rexroth Flanged Single Nut FEM-E-S
The Rexroth Flanged Single Nut FEM-E-S is a high-performance linear motion component designed for precision and durability. It features a robust design and high load capacity, making it ideal for industrial systems requiring reliable and stable motion control.
Manufacturer: Rexroth
Type: FLANGED SINGLE NUT FEM-E-S

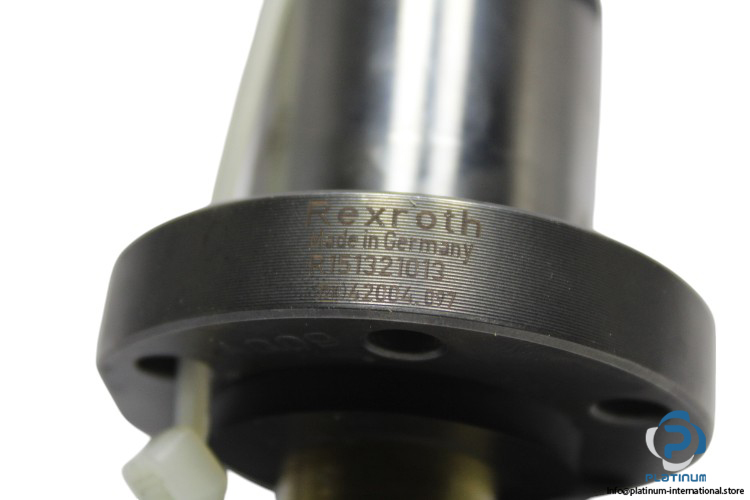

Model No. (MNR): R151321013
With its excellent load capacity and smooth operation, the Rexroth Flanged Single Nut FEM-E-S is an ideal choice for systems requiring high precision and durability in a range of industrial applications.

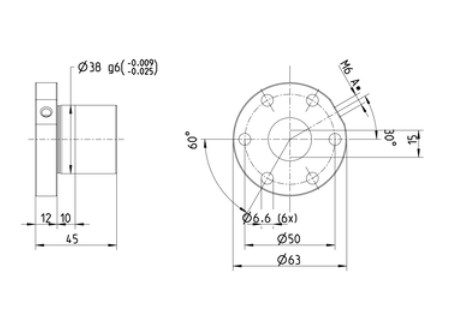

| Size | 25 x 5R x 3 - 4 |
| Nominal Diameter (d0) | 25 mm |
| Ball Diameter (DW) | 3 mm |
| Number of Ball Track Turns (i) | 4 |
| Lead (P) | 5 mm |
| Nut Diameter (D1) | 38 mm |
| Flange Diameter (D5) | 63 mm |
| Nut Length | 45 mm |
| Flange Thickness | 12 mm |
| Hole Pattern | BB4 |
| Direction of Lead | Right-Hand Thread |
| Dynamic Load Capacity (C) | 19100 N |
| Static Load Capacity (C0) | 27200 N |
| Maximum Permissible Speed (vmax) | 30 m/min |
| Permissible Operating Temperature | -10 / +80 °C |
