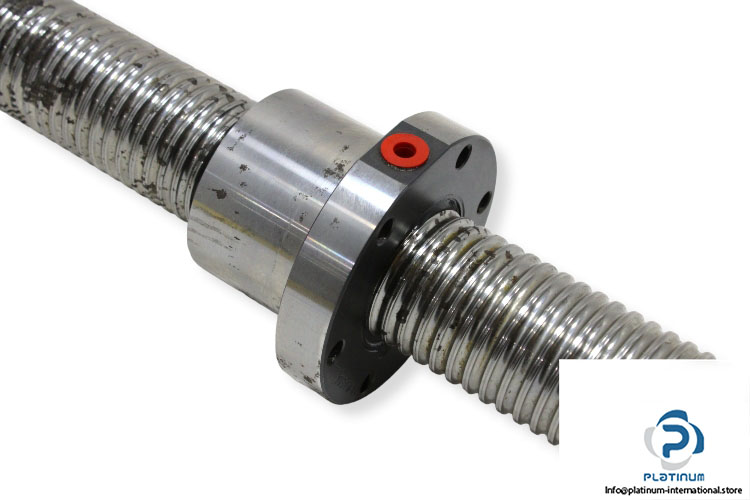

Rexroth R155341003 Single NUT FEM-E-S

Manufacturer: BOSCH REXROTH

Type:  Single Nut FEM-E-S with left-hand lead

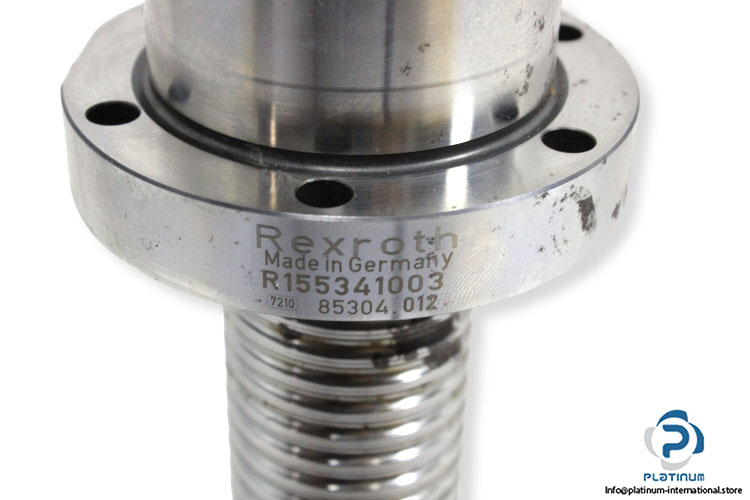

MNR: R1553 410 03

Alternative MNR: R155241003

Size: 40 x 5 L x 3.5 – 5

Nominal Diameter d₀: 40 mm

Ball Diameter D_W: 3.5 mm

Number of ball track turns i: 5

Lead P: 5 mm

Direction of Lead: Left-Hand Thread

Dynamic Load Rating C: 34900 N

Static Load Rating C₀: 64100 N

Linear speed V_max: 19 m/min

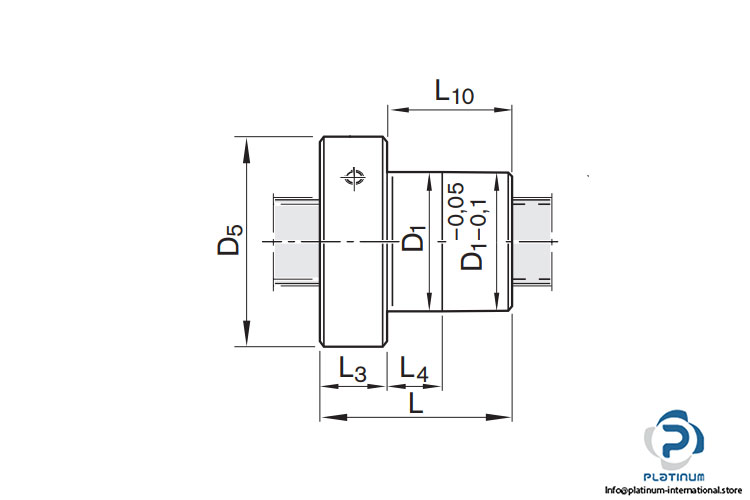

Dimensions:

D₁: 56 mm

D₅: 80 mm

L: 54 mm

L₃: 15 mm

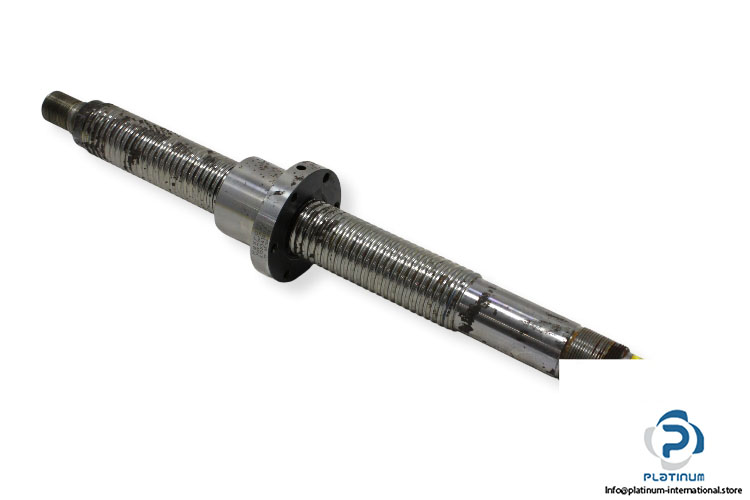

Available screw:

Total length: 490 mm

Path length: 295 mm
