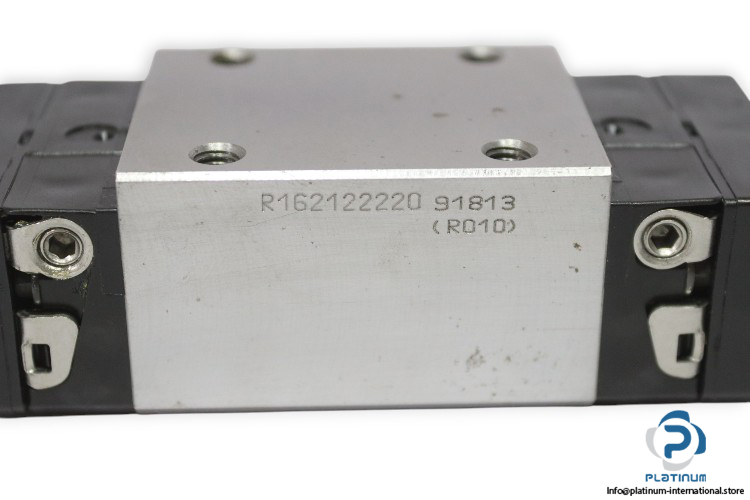

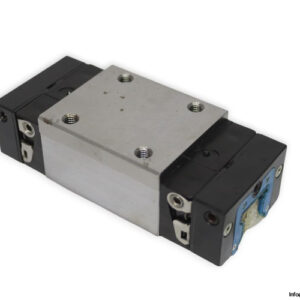

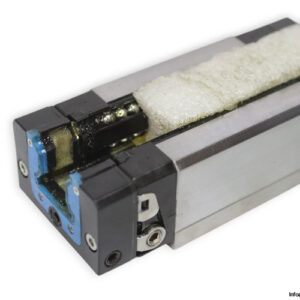

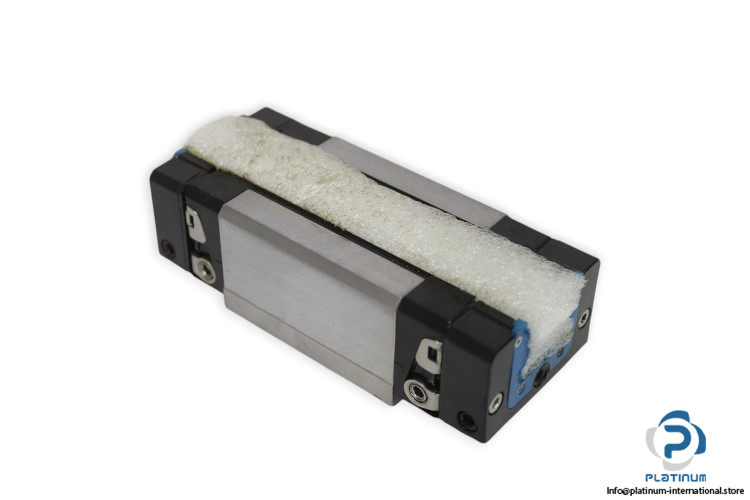

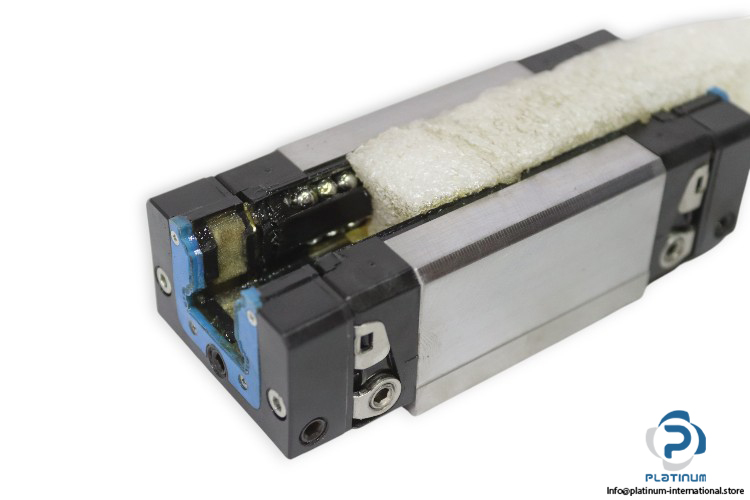

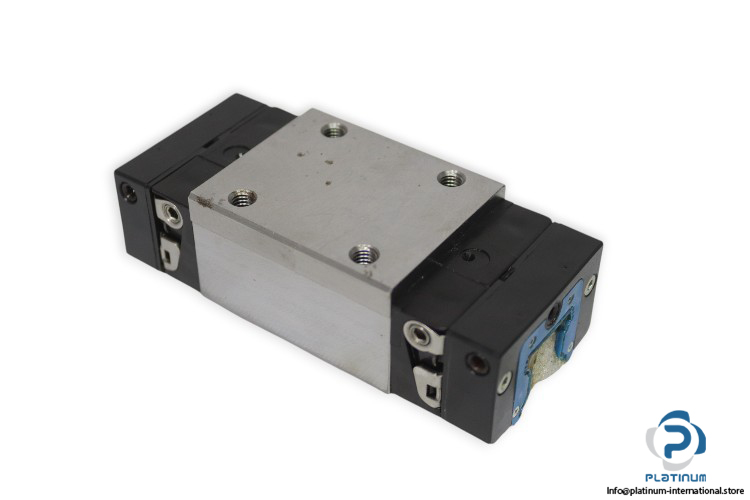

Rexroth R162122220 Ball Runner Block

In stock6 unitsReady to ship

BALL RUNNER BLOCK

Rexroth R162122220 KWD-025-SNH-C2-P-1 ball runner block, 25 mm size, precise class P accuracy, medium C2 preload, 36,000 N dynamic load, 35,900 N static load, and 5 m/s speed capacity.

Manufacturer
REXROTH
SKU
1086926
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

Rexroth R162122220 KWD-025-SNH-C2-P-1 Ball Runner Block

The Rexroth R162122220 KWD-025-SNH-C2-P-1 is a high-precision ball runner block designed for smooth linear guidance and long service life. With medium preload, precise accuracy class, and durable sealing, it delivers excellent performance for demanding automation and motion applications. Compatible rails are available in multiple lengths.

Manufacturer: Rexroth

Type: Ball Runner Block

MNR: R162122220

Model: KWD-025-SNH-C2-P-1

Size: 25 mm

Additional Information

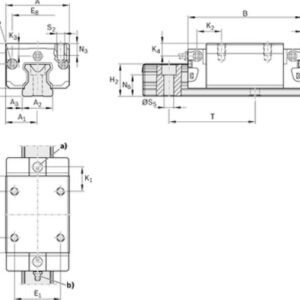

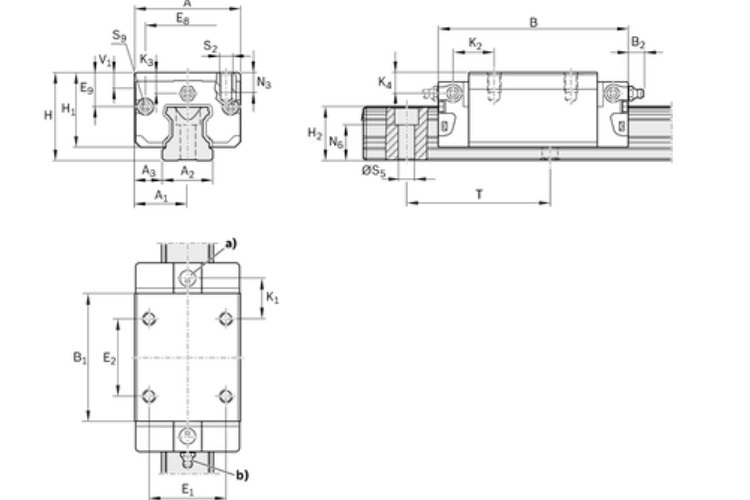

Width (A)48 mm
Length (B)86.2 mm
Height of System (H)40 mm
Height of Block (H1)33.9 mm
E135 mm
E235 mm
FormatSNH “ Slimline, Normal, High
Material (Profiled Rail Systems)SS “ Standard seal
Maximum Acceleration Travel (amax)500 m/s²
Maximum Permissible Speed (vmax)5 m/s
Dynamic Load Capacity C5036,000 N
Dynamic Load Capacity C10028,600 N
Static Load Capacity C035,900 N
Dynamic Torsional Moment Load Capacity Mt50520 Nm
Dynamic Torsional Moment Load Capacity Mt100410 Nm
Static Torsional Moment Load Capacity Mt0510 Nm
Dynamic Longitudinal Moment Load Capacity ML50370 Nm
Dynamic Longitudinal Moment Load Capacity ML100290 Nm
Static Longitudinal Moment Load Capacity ML0360 Nm
Pitch T Guide Rail60 mm
Accuracy ClassP “ Precise
Preload ClassC2 “ Medium preload
Admissible Operating Temperature-10 °C to +80 °C
NoteWe also provide the corresponding rails (guideways) in a wide range of lengths - please ask us if you need rails to match your bearing
