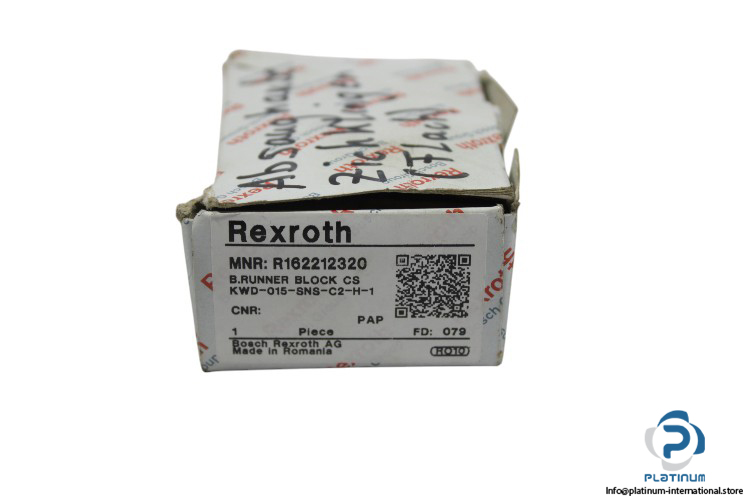

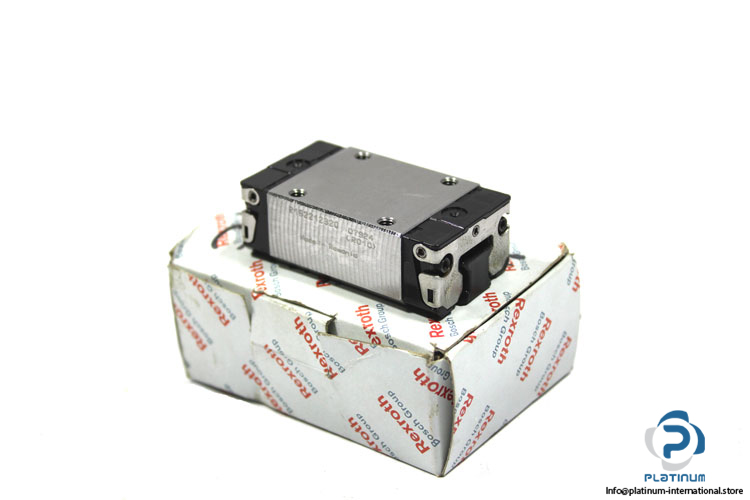

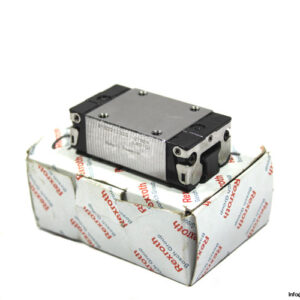

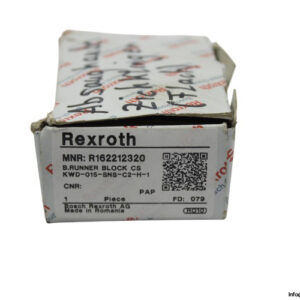

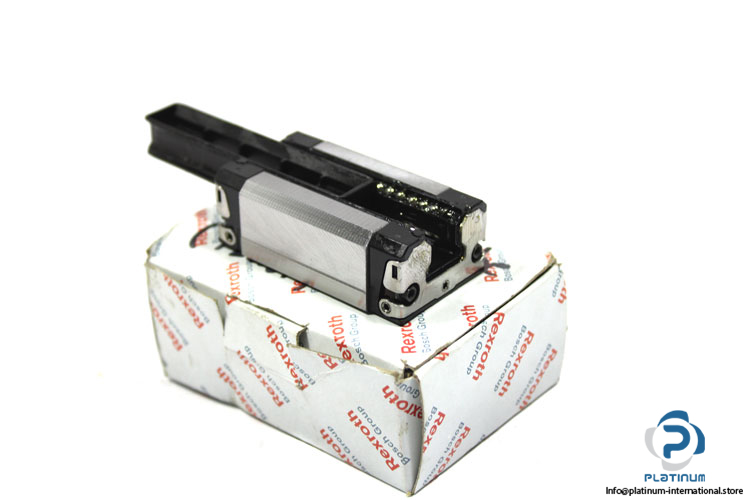

Rexroth R162212320 Ball Runner Block
The Rexroth R162212320 Ball Runner Block is a high-precision linear motion component designed for smooth and efficient movement in industrial applications. With its highly accurate preload class and durable carbon steel construction, this ball runner block ensures optimal performance in automation and high-speed systems.
Manufacturer: Rexroth
Type: Ball Runner Block
MNR: R162212320
Dimensions:
Performance Specifications:
| Size | 15 mm |
| Width (A) | 34 mm |
| Length (B) | 58.2 mm |
| Height of System (H) | 24 mm |
| Height of Block (H1) | 19.90 mm |
| E1 | 26 mm |
| E2 | 26 mm |
| Format | SNS “ Slimline, Normal, Standard Height |
| Material (Profiled Rail Systems) | Carbon Steel |
| Maximum Acceleration Travel (a max) | 500 m/s² |
| Maximum Permissible Speed (v max) | 5 m/s |
| Dynamic Load Capacity (C) | 9860 N |
| Static Load Capacity (C0) | 12700 N |
| Dynamic Torsional Moment Load Capacity (Mt) | 95 Nm |
| Static Torsional Moment Load Capacity (Mt0) | 120 Nm |
| Dynamic Longitudinal Moment Load Capacity (ML) | 68 Nm |
| Static Longitudinal Moment Load Capacity (ML0) | 87 Nm |
| Accuracy Class | H “ Highly Accurate |
| Preload Class | C2 “ Medium Preload |
| Admissible Operating Temperature | -10 to +80 °C |
