Rexroth R162431420 Ball Runner Block

Name: REXROTH R162431420 BALL RUNNER BLOCK
SKU: 1086788
Availability: LimitedAvailability

New

In stock11 unitsReady to ship

BALL RUNNER BLOCK CARBON STEEL

Rexroth R162431420 KWD-035-SLH-C1-N-1 Ball Runner Block, slimline long high design, 35 mm nominal size, with high load capacity and precision guidance for linear motion systems.

Manufacturer

REXROTH

SKU

1086788

Category

Linear Motion

Condition

New

Accuracy Ball Block C1 Capacity Carbon Guide High KWD-035-SLH-C1-N-1 Linear Load long Motion N Preload R162431420 Rexroth Runner Slimline Steel

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

REXROTH R162431420 KWD-035-SLH-C1-N-1 BALL RUNNER BLOCK CARBON STEEL

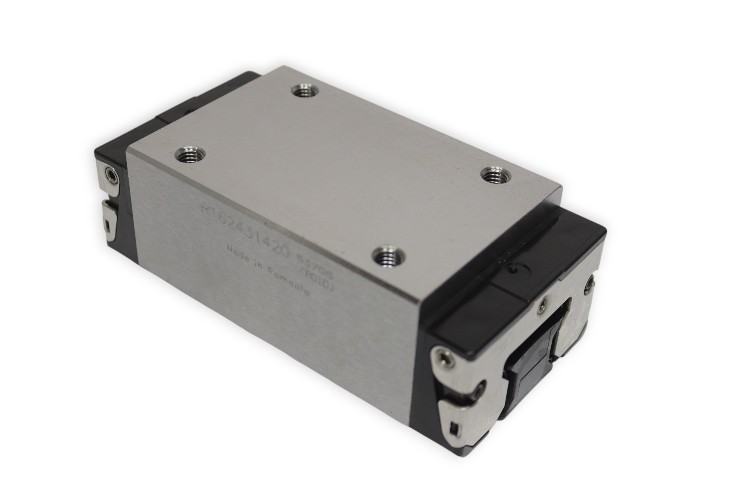

The Rexroth R162431420 KWD-035-SLH-C1-N-1 Ball Runner Block is a slimline, long, and high precision block designed for linear motion applications. Manufactured from durable carbon steel, it ensures excellent load capacity, rigidity, and reliability for industrial systems.

Manufacturer: Rexroth

Type: Ball Runner Block Carbon Steel

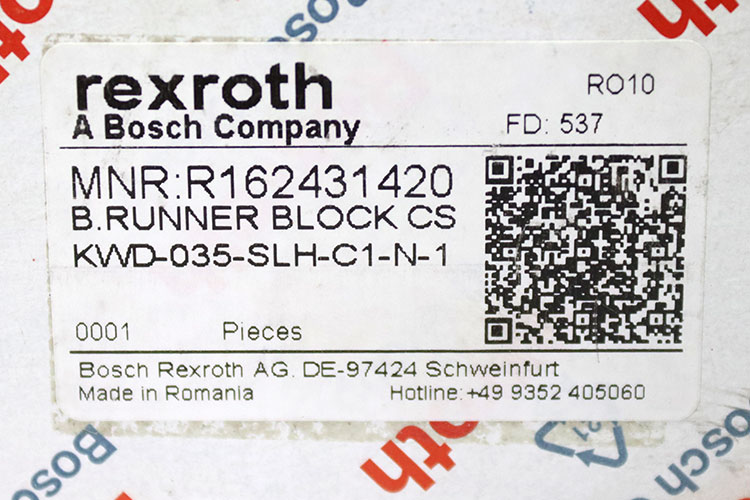

MNR: R162431420

Model: KWD-035-SLH-C1-N-1

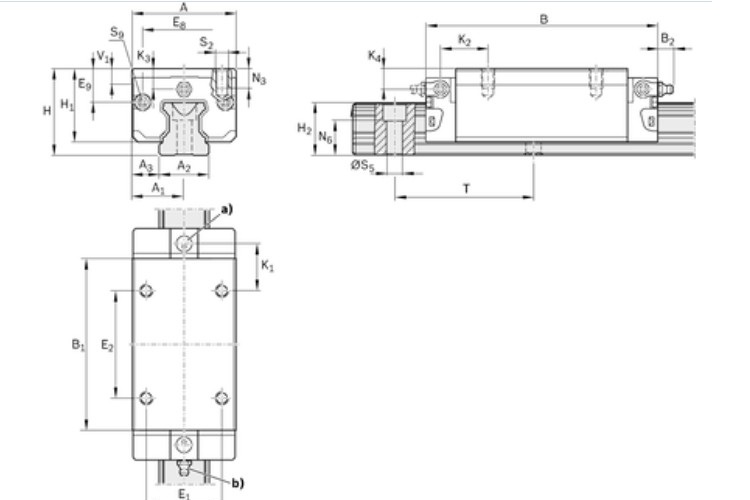

Nominal Size	35 mm
Width of Runner Block	70 mm
Length of Runner Block	139 mm
Height of Runner Block	47.4 mm
Height Runner Block with Guide Rail	55 mm
E1	50 mm
E2	72 mm
Dynamic Load Capacity C50	84000 N
Dynamic Load Capacity C100	66700 N
Static Load Capacity C0	116000 N
Dynamic Torsional Moment Load Capacity Mt50	1810 Nm
Dynamic Torsional Moment Load Capacity Mt100	1440 Nm
Static Torsional Moment Load Capacity Mt0	2500 Nm
Dynamic Longitudinal Moment Load Capacity ML50	1630 Nm
Dynamic Longitudinal Moment Load Capacity ML100	1290 Nm
Static Longitudinal Moment Load Capacity ML0	2240 Nm
Pitch T Guide Rail	80 mm
Format SLH	Slimline, Long, High
Preload Class	C1 (Low preload)
Accuracy Class	N (Standard)
Note	We also provide the corresponding rails (guideways) in a wide range of lengths - please ask us if you need rails to match your bearing
