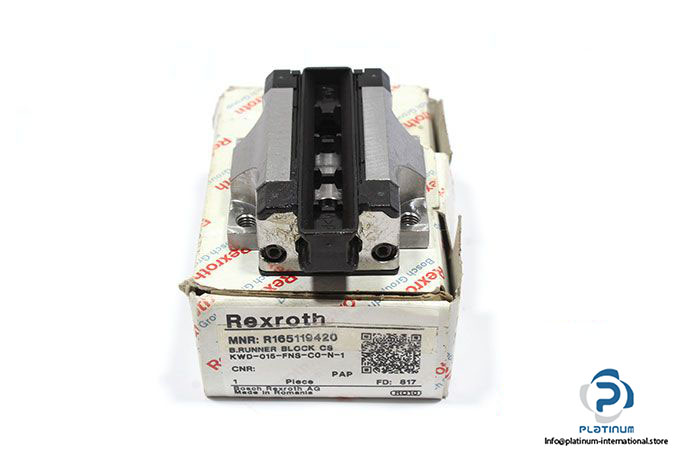

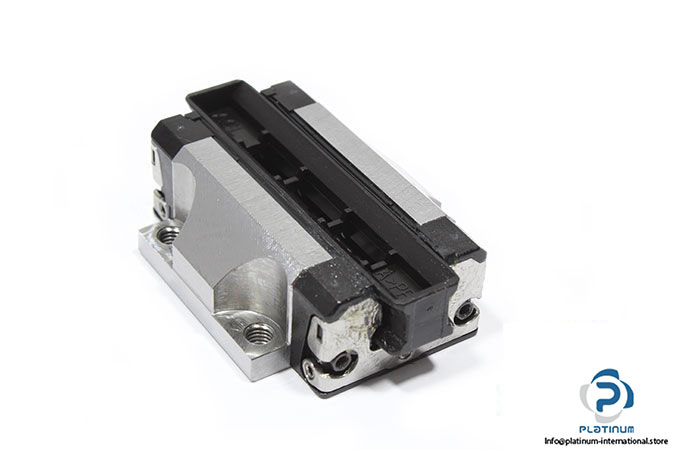

Rexroth R165119420 Ball Runner Block FNS

Manufacturer: Bosch Rexroth

Type: Ball Runner Block FNS

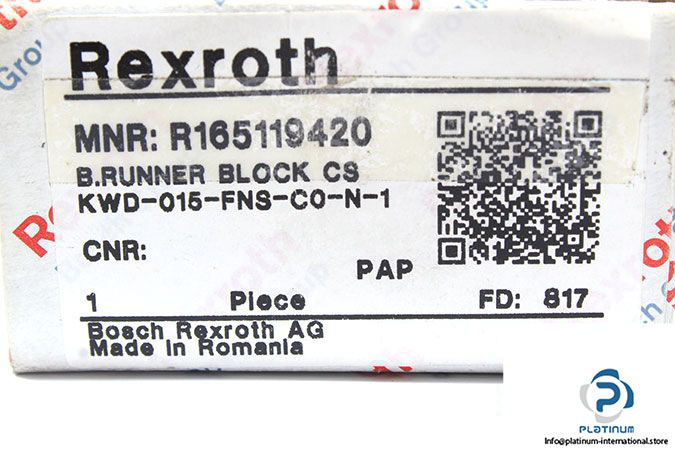

MNR: R165119420

Size: 15 mm

Mechanical Format: KWD

Design: FNS – Flanged, normal, standard height

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 9860 N

Static Load Capacity C₀ : 12700 N

Dynamic Torsional Moment Load Capacity M_t:  95 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 68 Nm

Accuracy Class: N – Normal

Preload Class: C0 – Without preload (clearance)

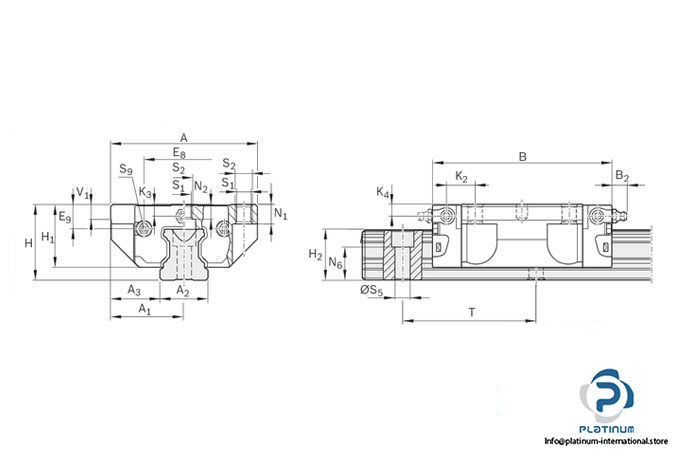

Dimensions

Width ( A ): 47 mm

Length ( B ): 58.2 mm

Height ( H₁ ): 19.9 mm

Admissible Operating Temperature: -10… +80 °C
