Rexroth R165131424 Ball Runner Block FNS

Manufacturer: REXROTH
Type: Ball Runner Block FNS

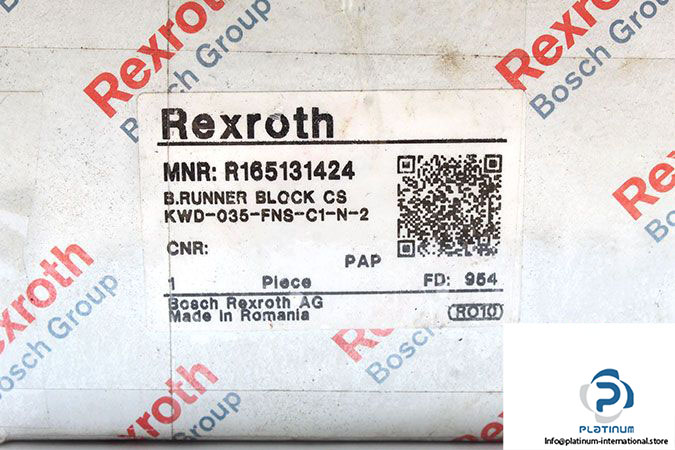

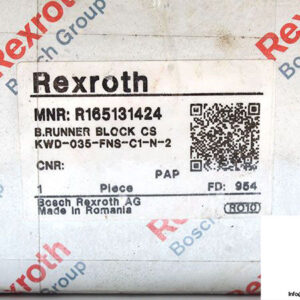

MNR: R1651 314 24

Size: 35 mm
Format: FNS – Flanged, normal, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 51800 N
Static load rating C0: 80900 N
Dynamic Torsional Moment Load Capacity M_t: 1110 Nm
Static torsional moment load capacity Mt0: 1740 Nm
Dynamic longitudinal moment load capacity ML: 720 Nm
Static longitudinal moment load capacity ML0: 1130 Nm
Accuracy Class: N – normal
Preload Class:           C1 – Low preload

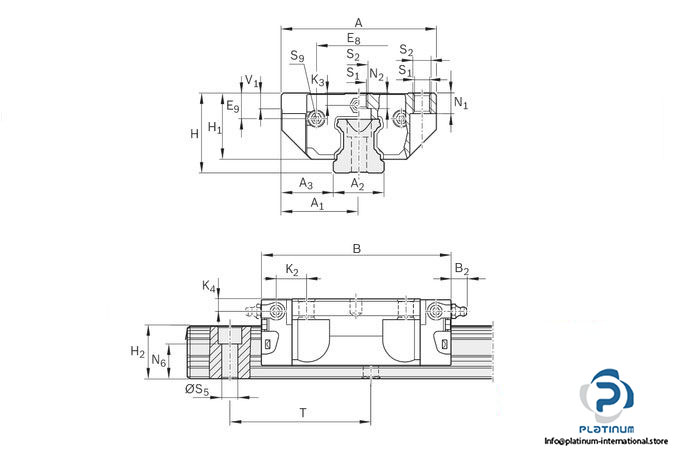

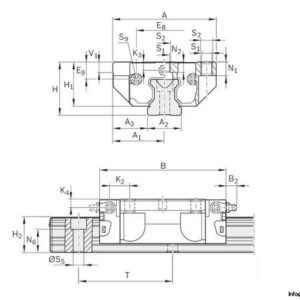

Dimensions
Width (A): 100 mm
Length (B): 110.5 mm
Height of system(H): 48 mm
Height of block (H₁): 40.4 mm
E1: 82 mm
E2: 62 mm
Admissible Operating Temperature: -10 °C … +80 °C
