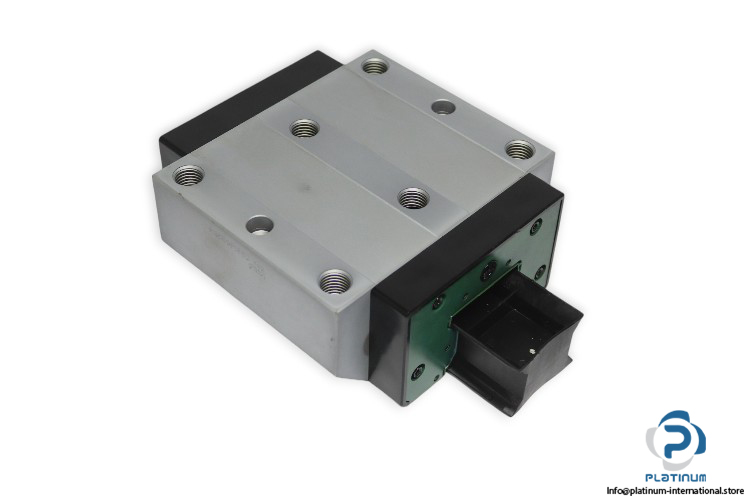

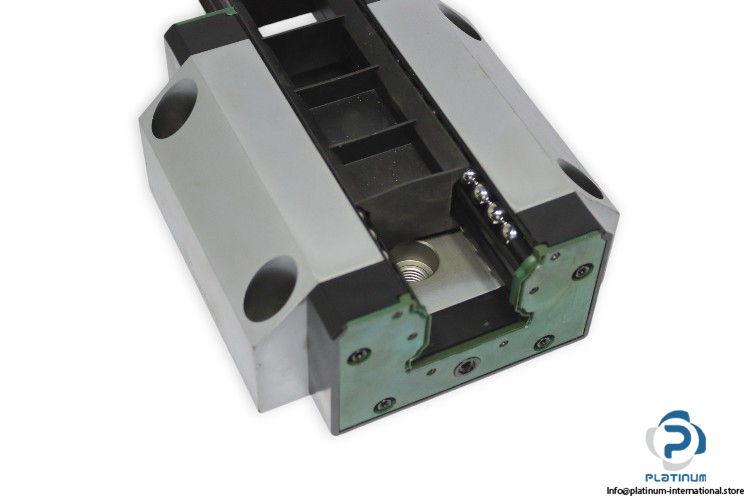

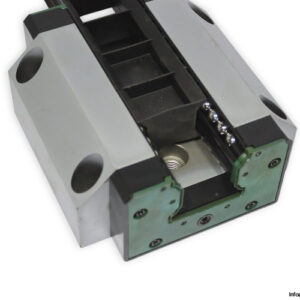

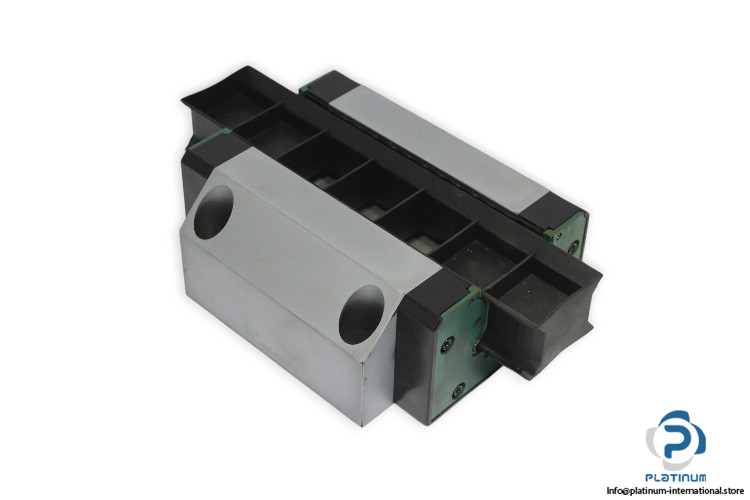

Rexroth R165161360 Ball Runner Block
Manufacturer: REXROTH
Type: BALL RUNNER BLOCK FNS

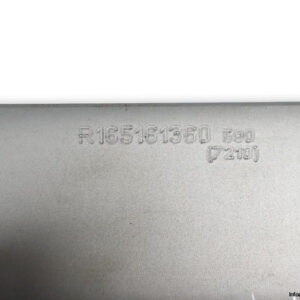

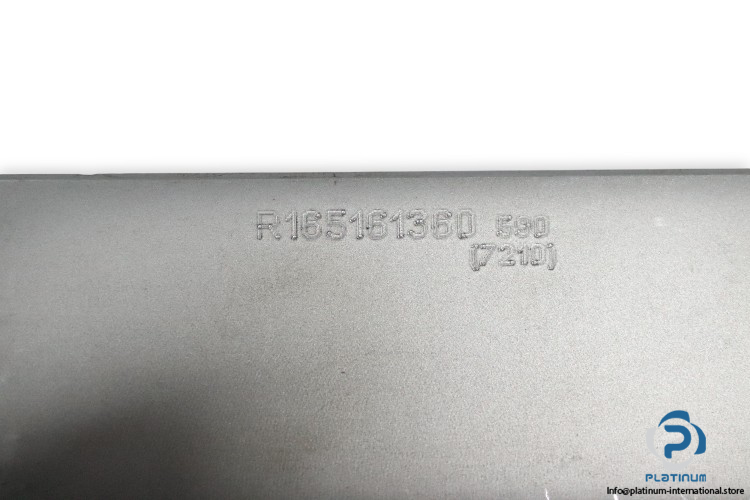

MNR: R1651 613 60
Size: 65 mm

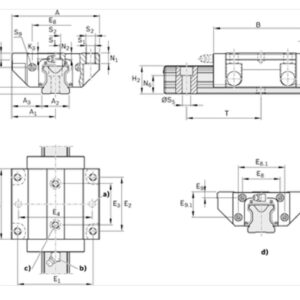

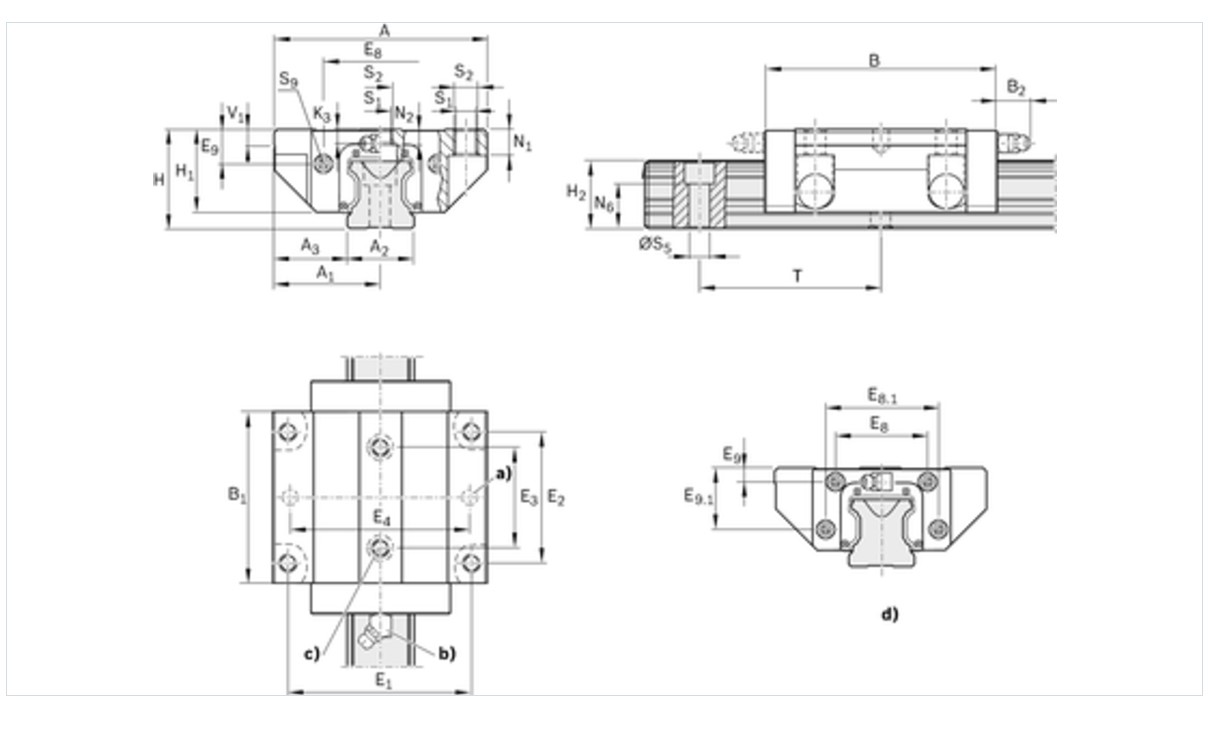

Dimensions
Width (A): 170 mm
Length (B): 188 mm
Height of runner block: 76 mm
Height runner block with guide rail: 90 mm
E1: 142 mm
E2: 110 mm
Format: FNS – flange, normal, standard height
Material (profiled rail systems): Hard chrome plated
Dynamic Load Capacity C: 172000 N
Static Load Capacity C0 : 280000 N
Dynamic Torsional Moment Load Capacity Mt: 6810 Nm
Static torsional moment load capacity Mt0: 11100 Nm
Dynamic longitudinal moment load capacity ML: 4560 Nm
Static longitudinal moment load capacity ML0: 7400 Nm
Accuracy Class: H – Highly accurate
Preload Class: C1 – Low preload
Seal: SS – Standard seal
