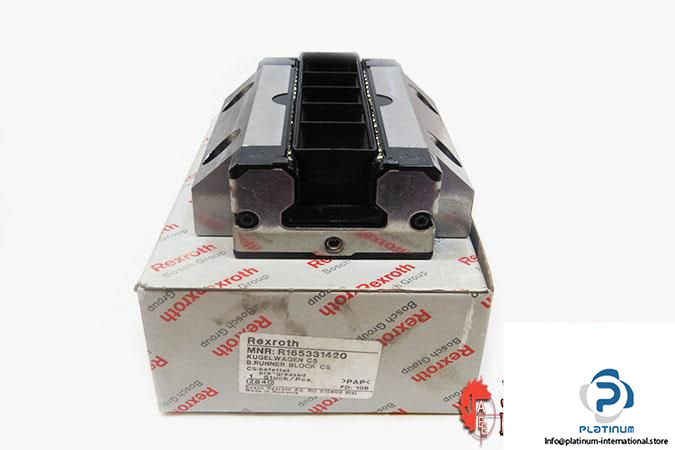

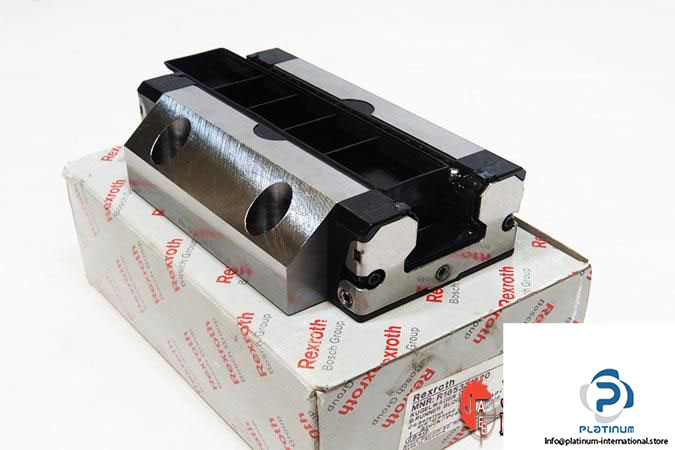

Rexroth R165331420 Ball Runner Block FLS

Manufacturer: Bosch Rexroth

Type: Ball Runner Block FLS

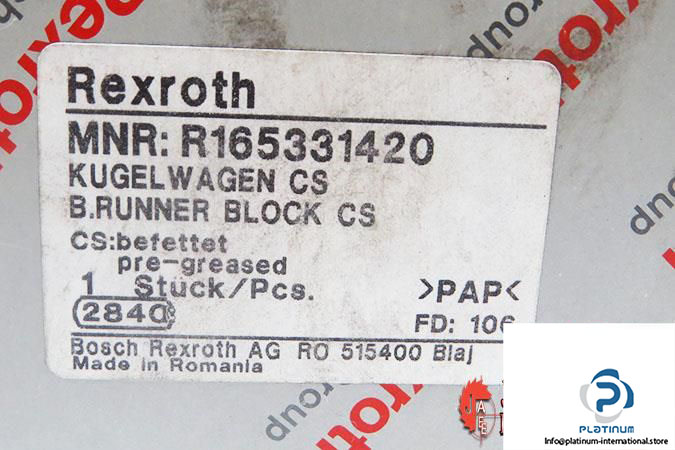

MNR: R 165331420

Size: 35 mm

Mechanical Format: KWD

Design: FLS – Flanged, long, standard height

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 66700 N

Static Load Capacity C₀ : 116000 N

Dynamic Torsional Moment Load Capacity M_t:  1440 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 1290 Nm

Accuracy Class: N – Normal accurate

Preload Class: C1 – Low preload

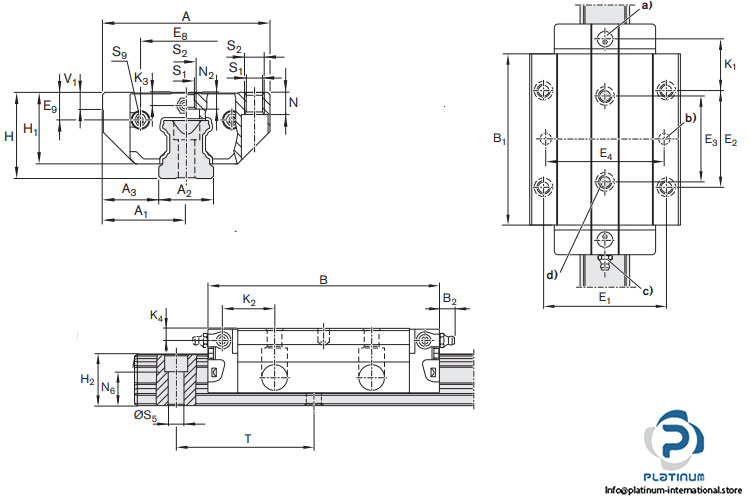

Dimensions

Width (A): 100 mm

Length (B): 139 mm

Height (H): 48 mm

Block Height (H₁): 40.4 mm

E₁: 82 mm

E₂: 62 mm

Admissible Operating Temperature: -10… +80 °C
