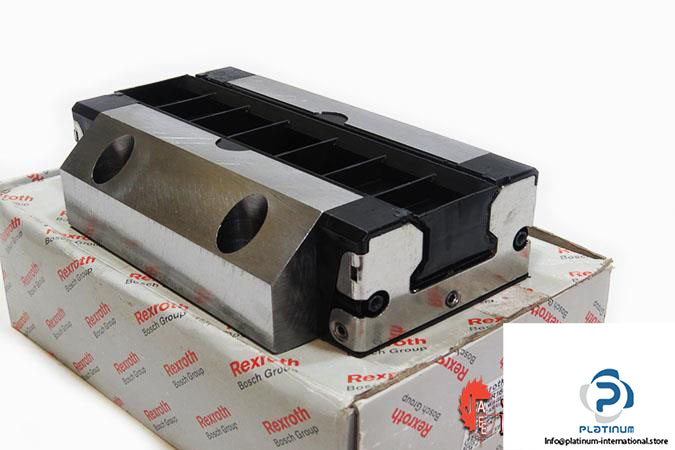

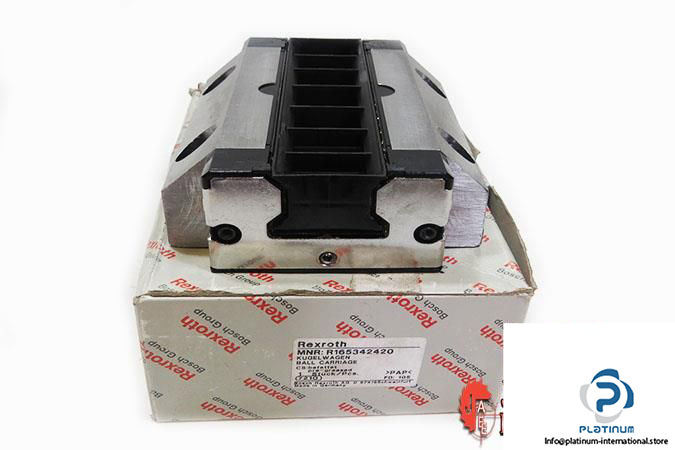

Rexroth R165342420 Ball Carriage
New
Available on request
220,00$
Ball Runner Block FLS Rexroth R1653 424 20 size 45 ball runner block with long flanged design, carbon steel construction, and 111000 N dynamic load capacity for industrial linear motion applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

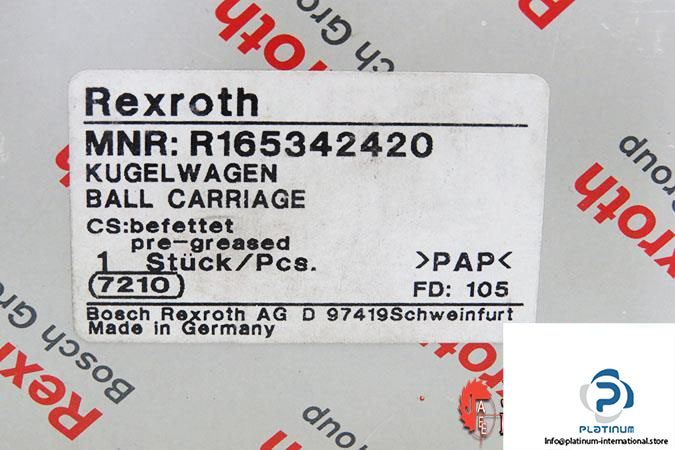

| MNR | R1653 424 20 |
| Size | 45 mm |
| Format | FLS, flanged, long, standard height |
| Material (profiled rail systems) | Carbon steel |
| Maximum Acceleration Travel amax | 500 m/s² |
| Maximum Permissible Speed vmax | 5 m/s |
| Dynamic Load Capacity C | 111000 N |
| Static Load Capacity C0 | 190000 N |
| Dynamic Torsional Moment Load Capacity Mt | 3010 Nm |
| Mt0 | 5120 Nm |
| Dynamic longitudinal moment load capacity ML | 2730 Nm |
| Static longitudinal moment load capacity ML0 | 4660 Nm |
| Accuracy Class | N – normal |
| Preload Class | C2 – Average preload |
| Dimensions Width (A) | 120 mm |
| Length (B) | 174.1 mm |
| Height of system (H) | 60 mm |
| Height of block (H1) | 50.3 mm |
| E1 | 100 mm |
| E2 | 80 mm |
| Admissible Operating Temperature | -10 °C … +80 °C |
| Condition | New |
