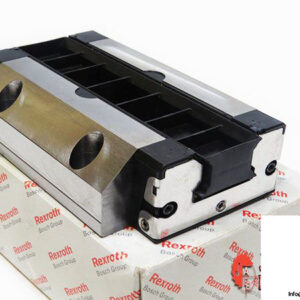

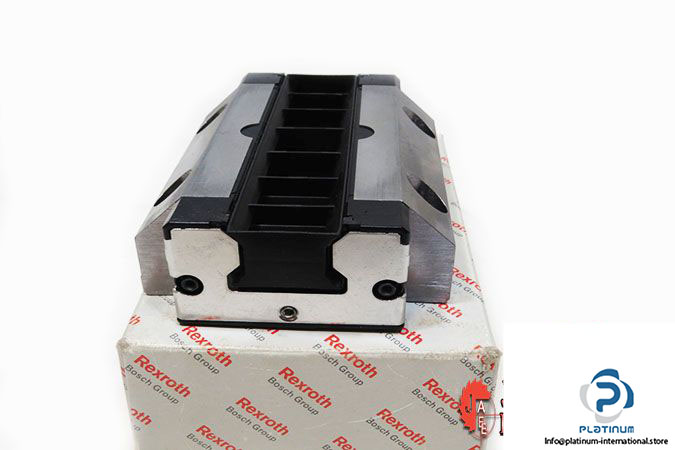

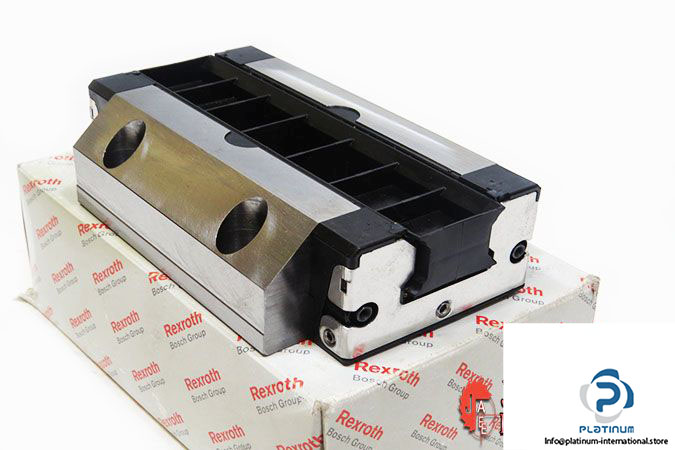

Rexroth R165349420 Ball Runner Block FLS

Manufacturer: REXROTH
Type: Ball Runner Block FLS

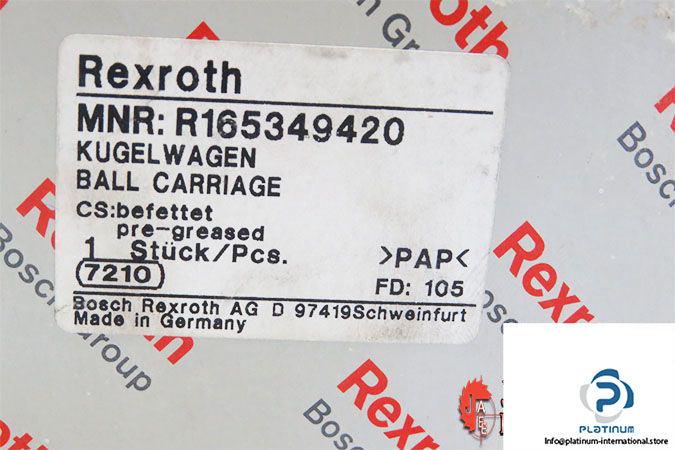

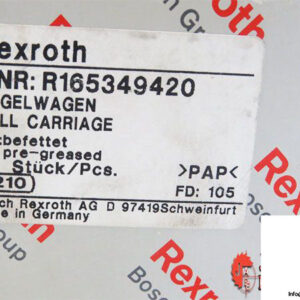

MNR: R1653 494 20

Size: 45 mm
Format: FLS – flanged, long, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 111000 N
Static load rating C0: 190000 N
Dynamic Torsional Moment Load Capacity M_t:  3010 Nm
Static torsional moment load capacity Mt0: 5120 Nm
Dynamic longitudinal moment load capacity ML: 2730 Nm
Static longitudinal moment load capacity ML0: 4660 Nm
Accuracy Class: N – normal
Preload Class: C0 – Without preload
Dimensions
Width (A): 120 mm
Length (B): 174.1 mm
Height of system(H): 60 mm
Height of block (H₁): 50.3 mm
E1: 100 mm
E2: 80 mm
Admissible Operating Temperature: -10 °C … +80 °C
