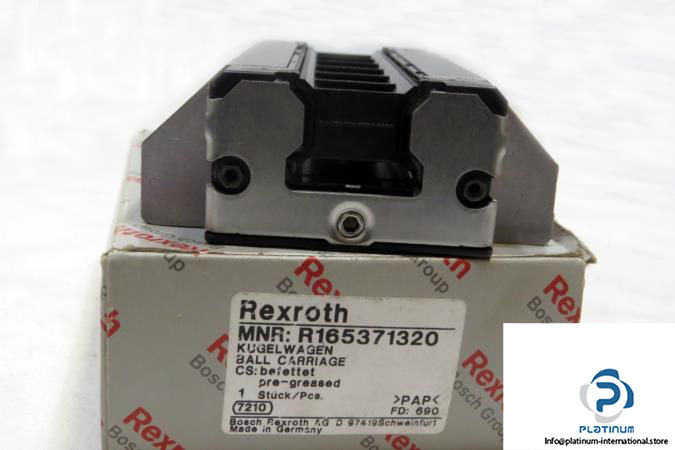

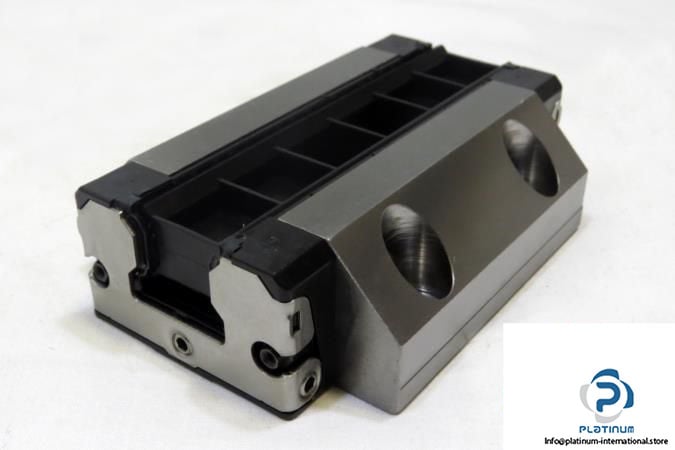

Rexroth R165371320 Ball Runner Block FLS

Manufacturer: Bosch Rexroth

Type: Ball Runner Block FLS

MNR: R 165371320

Size: 30 mm

Mechanical Format: KWD

Design: FLS – Flanged, long, standard height

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 46000 N

Static Load Capacity C₀ : 66900 N

Dynamic Torsional Moment Load Capacity M_t:  800 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 740 Nm

Accuracy Class: H – Highly accurate

Preload Class: C1 – Low preload

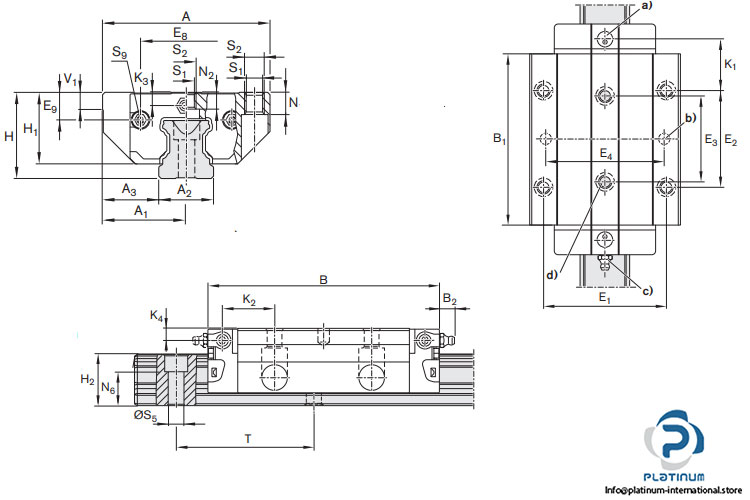

Dimensions

Width (A): 90 mm

Length (B): 119.7 mm

Height (H): 42 mm

Block Height (H₁): 35.35 mm

E₁: 72 mm

E₂: 52 mm

Admissible Operating Temperature: -10… +80 °C

Successors MNR: R165371420  / R165371422
