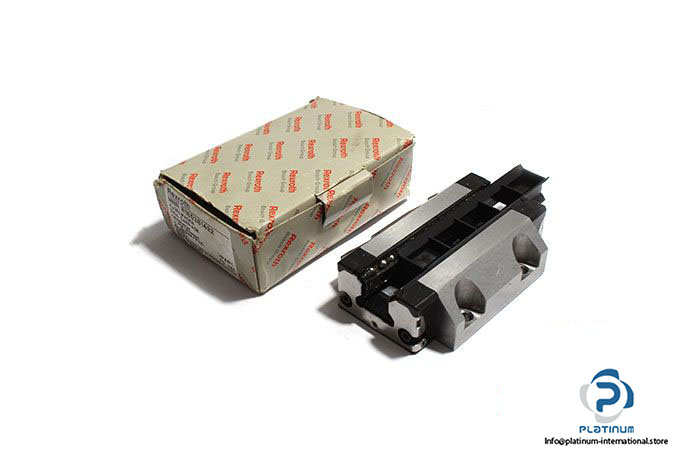

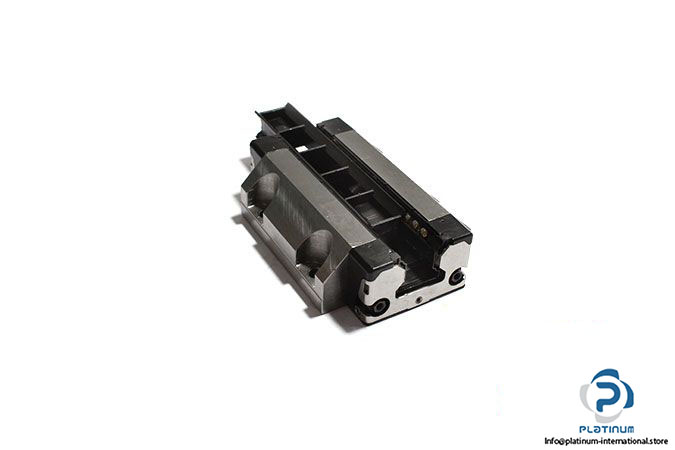

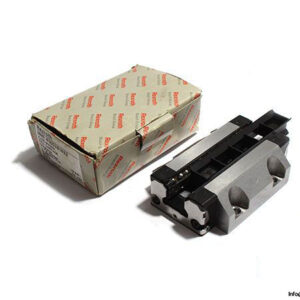

Rexroth R165381422 Ball Runner Block FLS

Manufacturer: REXROTH
Type: Ball Runner Block FLS
MNR: R1653 814 22

Size: 20 mm
Design: FLS – Flanged, Long, Standard Height
Material (profiled rail systems): Carbon steel
Seals: with ball chain
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 29600 N
Static Load Capacity C₀ : 41800 N
Dynamic Torsional Moment Load Capacity M_t:  380 Nm
Mt0: 540 Nm
Dynamic longitudinal moment load capacity ML: 340 Nm
Static longitudinal moment load capacity ML0: 490 Nm
Accuracy Class: N – Normal
Preload Class: C1 – low preload

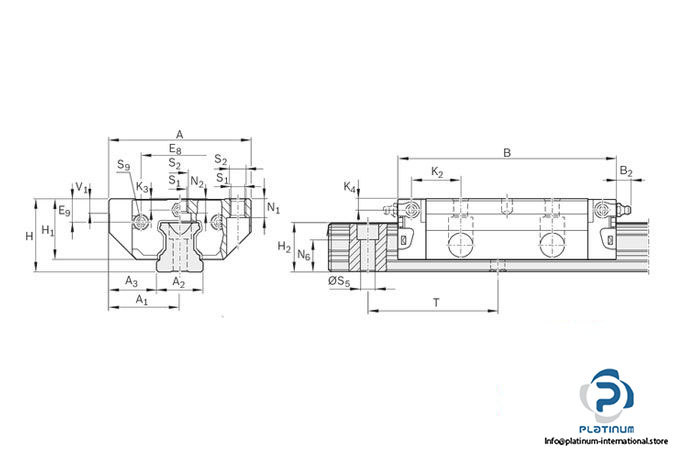

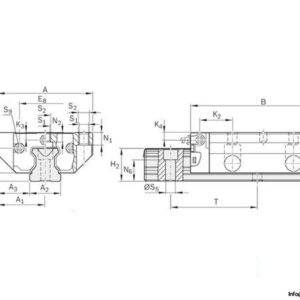

Dimensions
Width (A): 63 mm
Length (B): 91 mm
Height of system(H): 30 mm
Height of block (H₁): 25.35 mm
E1: 53 mm
E2: 40 mm
Admissible Operating Temperature: -10 °C … +80 °C
