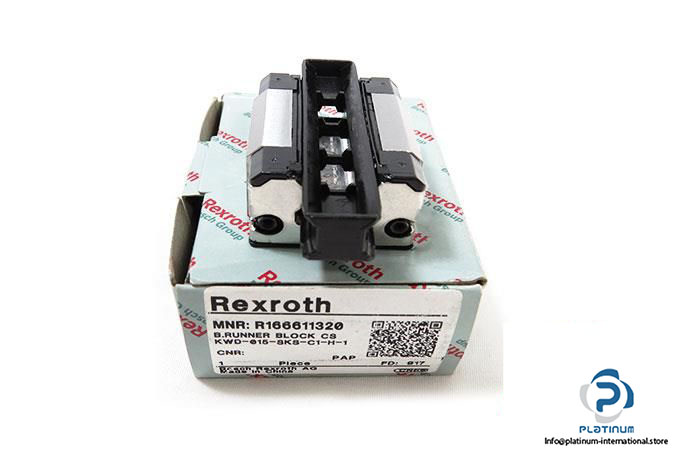

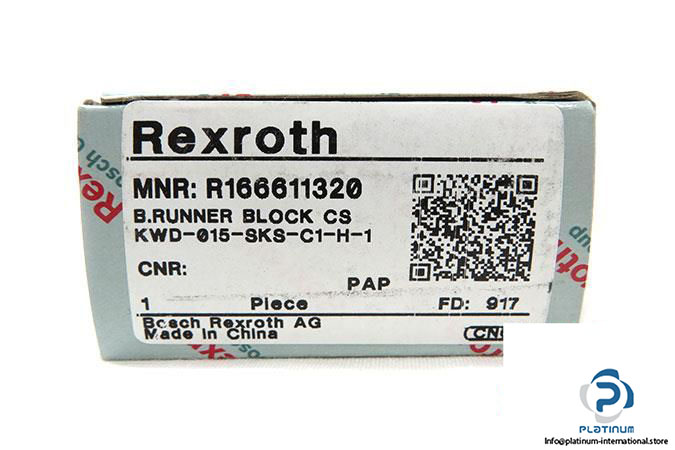

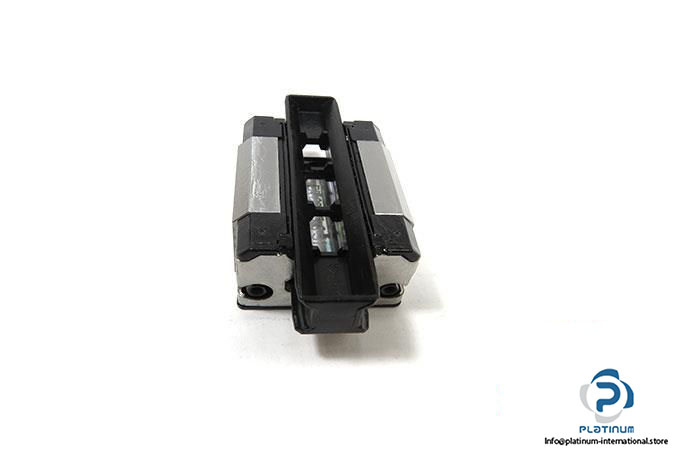

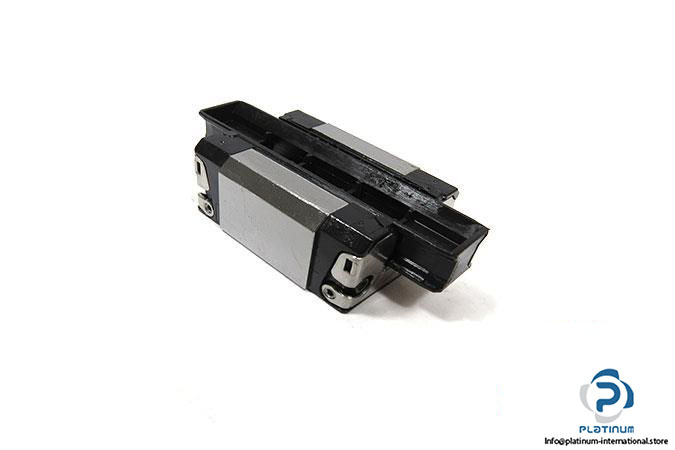

Rexroth R166611320 Ball Runner Block SKS

Manufacturer: REXROTH
Type: Ball Runner Block SKS
MNR: R1666 113 20

Size: 15 mm
Format: SKS – slimline, short, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 6720 N
Static Load Capacity C₀ : 7340 N
Dynamic Torsional Moment Load Capacity M_t:  65 Nm
Static torsional moment load capacity Mt0: 71 Nm
Dynamic longitudinal moment load capacity ML: 29 Nm
Static longitudinal moment load capacity ML0: 32 Nm
Accuracy Class: H – Highly accurate
Preload Class: C1 – low preload
Dimensions
Width (A): 34 mm
Length (B): 44.7 mm
Height of system(H): 24 mm
Height of block (H₁): 19.90 mm
E1: 26 mm
Admissible Operating Temperature: -10 °C … +80 °C
