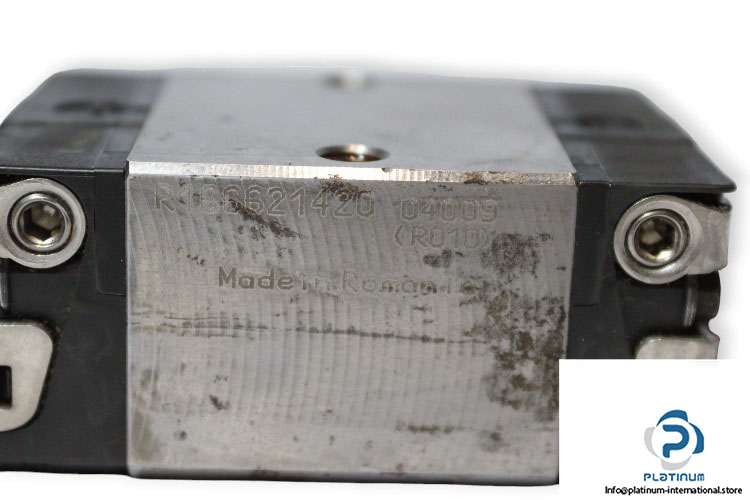

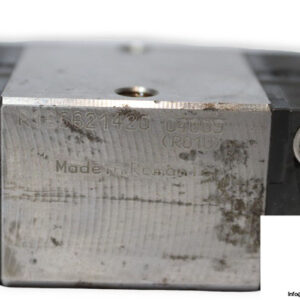

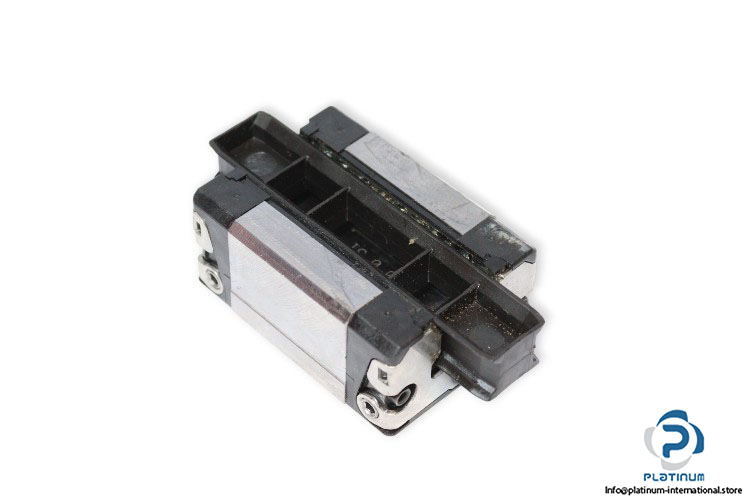

Rexroth R166621420 Runner Block

Manufacturer: REXROTH
Type: Ball Runner Block SKS
MNR: R1666 214 20

Size: 25 mm
Format: SKS – slimline, short, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 19800 N
Static Load Capacity C₀ : 21200 N
Dynamic Torsional Moment Load Capacity M_t:  280 Nm
Static torsional moment load capacity Mt0: 300 Nm
Dynamic longitudinal moment load capacity ML: 130 Nm
Static longitudinal moment load capacity ML0: 140 Nm
Accuracy Class: N – Normal
Preload Class: C1 – low preload
Dimensions
Width (A): 48 mm
Length (B): 67 mm
Height of system (H): 36 mm
Height of block (H₁): 29.90 mm
E1: 35 mm
Admissible Operating Temperature: -10 °C … +80 °C
