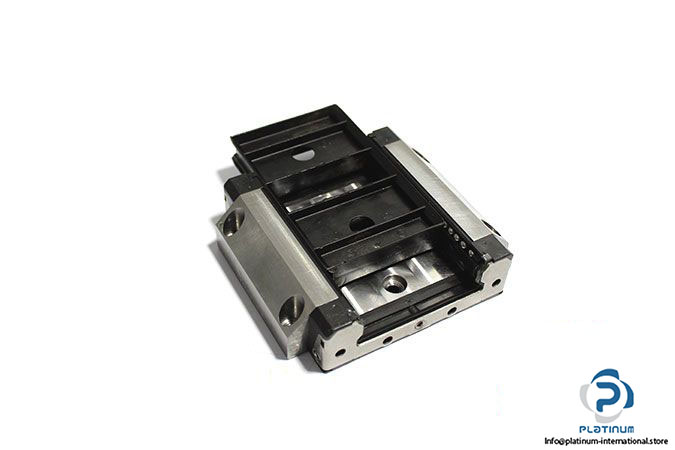

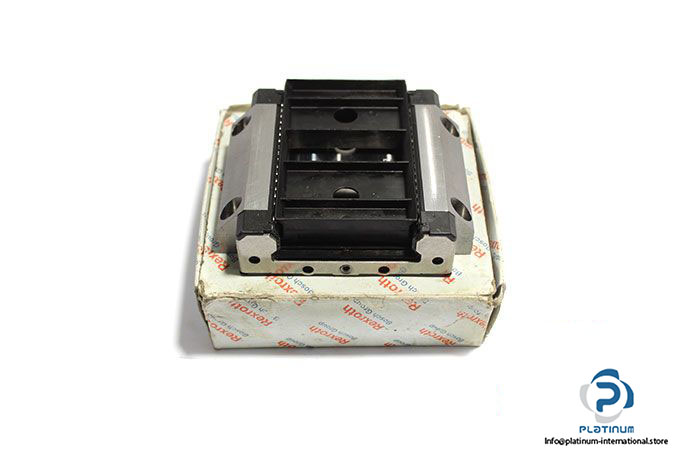

Rexroth R167121420 Ball Runner Block BNS

Manufacturer: REXROTH
Type: Ball Runner Block BNS
MNR: R1671 214 20

Size: 25/70 mm
Design: BNS – Wide, Normal, Standard Height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 36200 N
Static Load Capacity C₀ : 50200 N
Dynamic Torsional Moment Load Capacity M_t:  1350 Nm
Mt0: 1870 Nm
Dynamic longitudinal moment load capacity ML: 490 Nm
Static longitudinal moment load capacity ML0: 680 Nm
Accuracy Class: N – normal
Preload Class: C1 – low preload

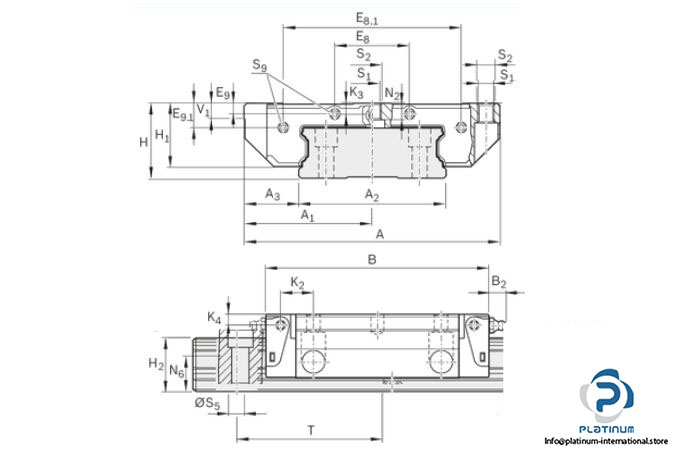

Dimensions
Width (A): 120 mm
Length (B): 105 mm
Height of system(H): 35 mm
Height of block (H₁): 29.75 mm
E1: 107 mm
E2: 60 mm
Admissible Operating Temperature: -10 °C … +80 °C
