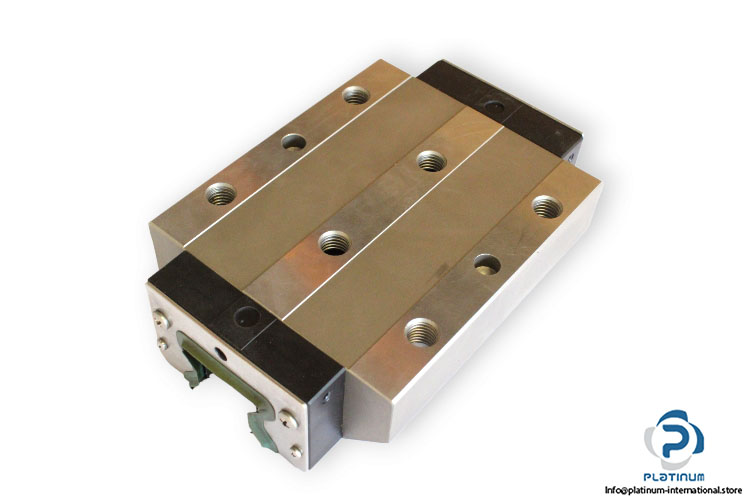

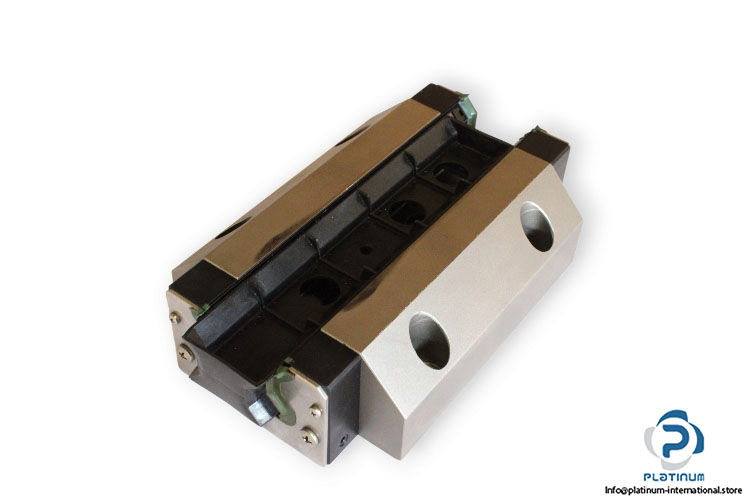

Rexroth R185352210 Roller Runner Block FLS

Manufacturer: Bosch Rexroth
Type: ROLLER RUNNER BLOCK FLS

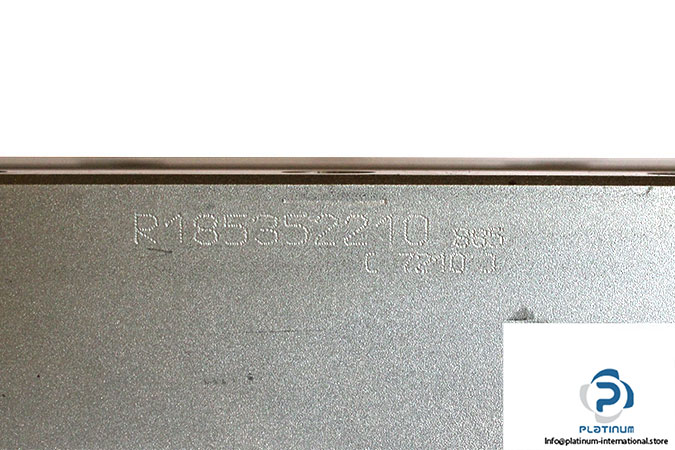

MNR: R 185352210

Size: 55 mm
Mechanical Format: RWA
Design: FLS – Flange, Long, Standard height
Format: CS – Carbon Steel
Maximum Acceleration Travel a_max: 150 m/s²
Maximum Permissible Speed v_max: 4 m/s
Dynamic Load Capacity C: 174000 N
Static Load Capacity C₀: 374900 N
Dynamic Torsional Moment Load Capacity M_t:  5100 Nm
Dynamic Longitudinal Moment Load Capacity M_L: 4420 Nm
Accuracy Class: P
Preload Class: C2

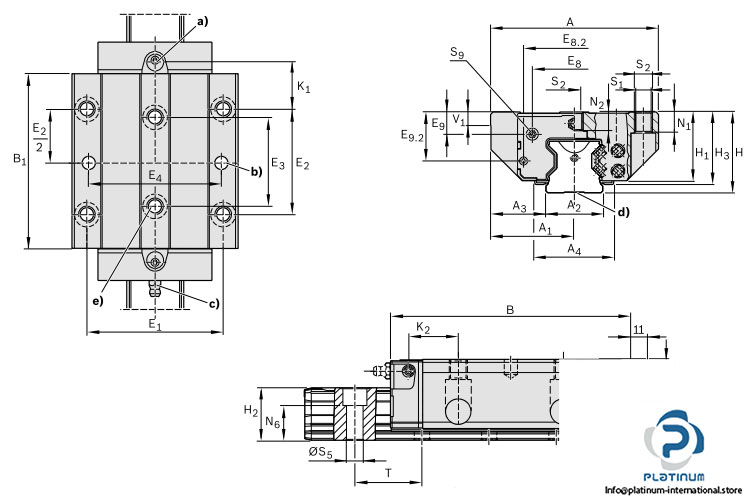

Dimensions
Width (A): 140 mm
Length (B): 209.65 mm
Block Height (H₁): 58 mm
Total height (H): 70 mm
E₁: 116 mm
E₂: 95 mm
E₃: 70 mm
E₄: 74.2 mm
Admissible Operating Temperature: -10 … +80 °
