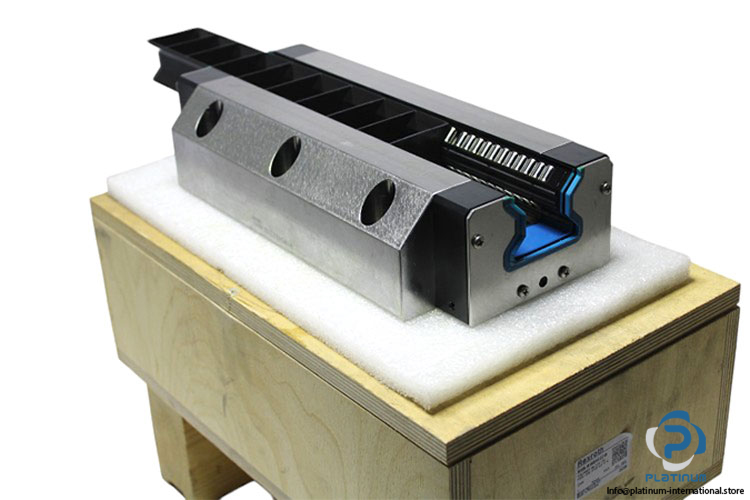

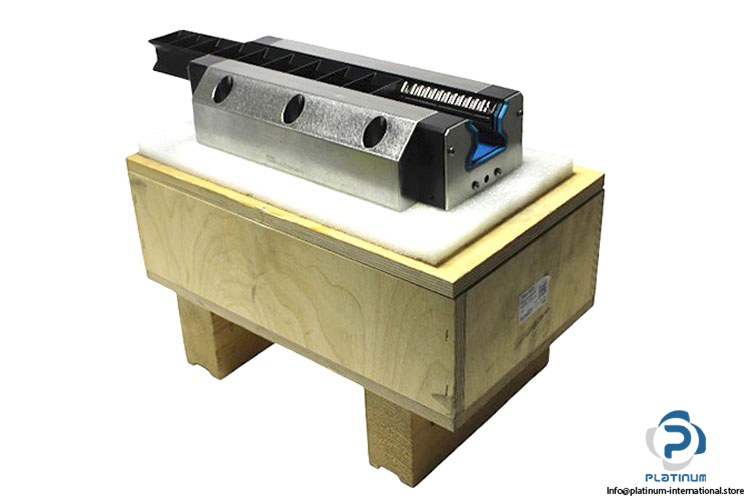

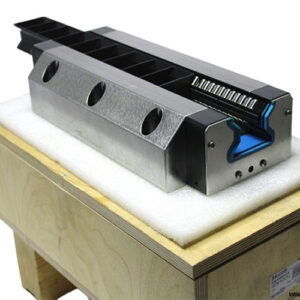

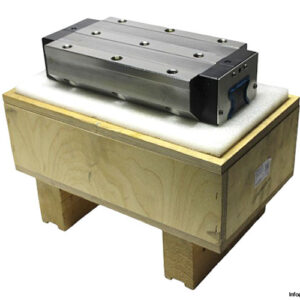

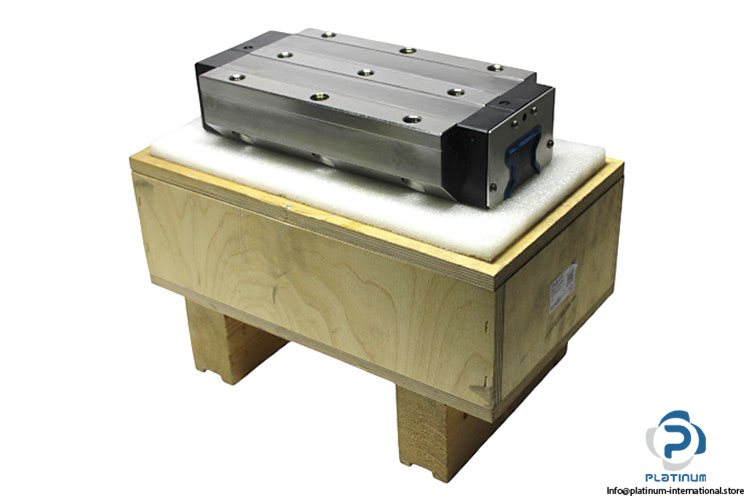

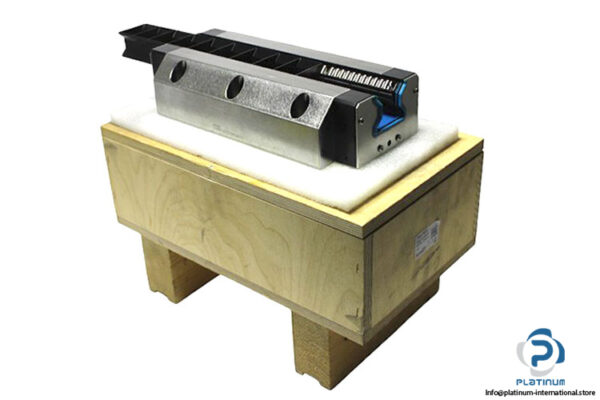

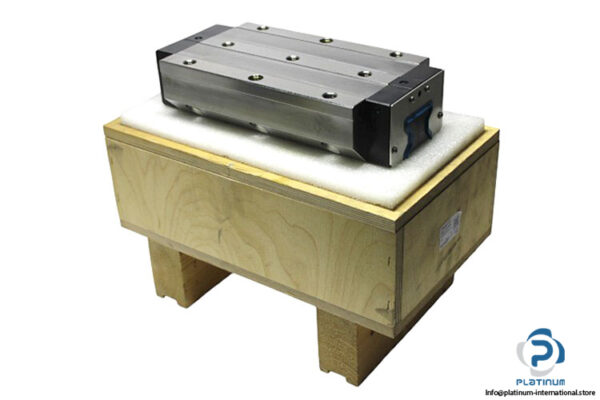

Rexroth R185462210 Roller Runner Block

Rexroth Roller Runner Block R185462210

The Rexroth Roller Runner Block R185462210 is designed for high-performance linear motion applications, offering precision and durability. With a dynamic load capacity of 366,800 N and a static load capacity of 792,800 N, it supports efficient linear motion systems. It is constructed with carbon steel for enhanced strength and operates under various conditions with an admissible operating temperature range of -10°C to +80°C.

🔧 Technical Specifications:

• Manufacturer: Rexroth
• Type: Roller Runner Block

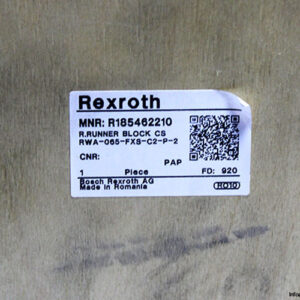

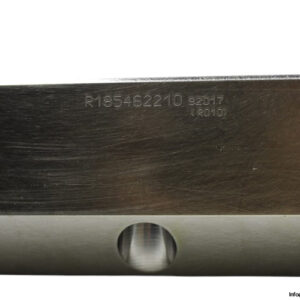

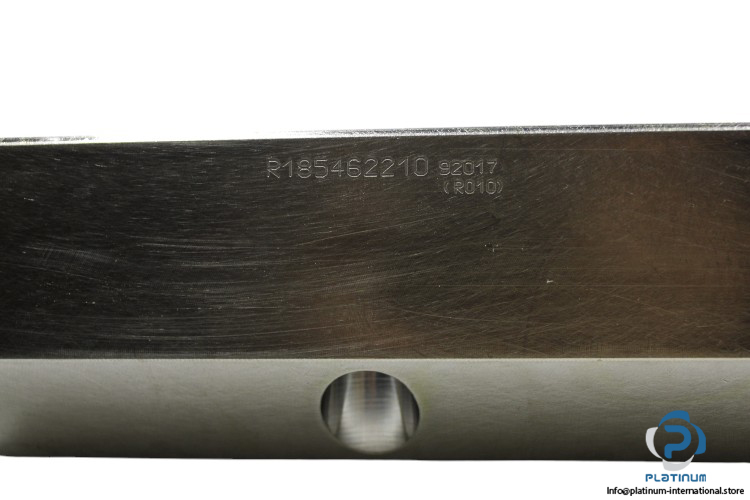

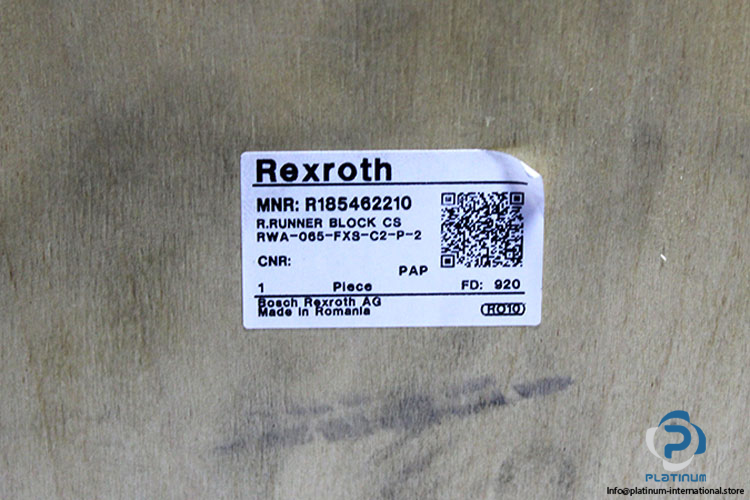

• Model Number: R185462210

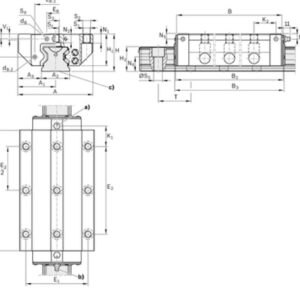

• Size: 65 mm

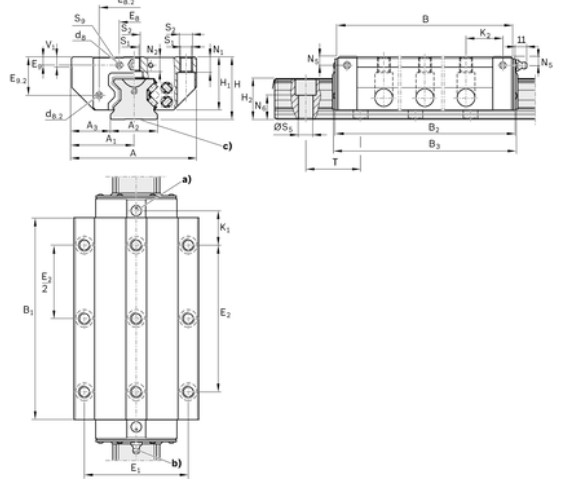

• Width (A): 170 mm
• Length (B): 335 mm
• Height of System (H): 90 mm
• Height of Block (H1): 76 mm
• E1: 142 mm
• E2: 200 mm
• Format: FXS – flange, extra-long, standard height
• Material (Profiled Rail Systems): Carbon steel
• Maximum Acceleration Travel (amax): 150 m/s²
• Maximum Permissible Speed (vmax): 3 m/s
• Dynamic Load Capacity (C): 366,800 N
• Static Load Capacity (C0): 792,800 N
• Dynamic Torsional Moment Load Capacity (Mt): 13,030 Nm
• Static Torsional Moment Load Capacity (Mt0): 28,170 Nm
• Dynamic Longitudinal Moment Load Capacity (ML): 15,760 Nm
• Static Longitudinal Moment Load Capacity (ML0): 34,060 Nm
• Accuracy Class: P – Precise
• Preload Class: C2 €“ Medium preload
• Admissible Operating Temperature: -10°C to +80°C

This roller runner block ensures precision, high load capacities, and versatile applications, ideal for robust industrial systems.
