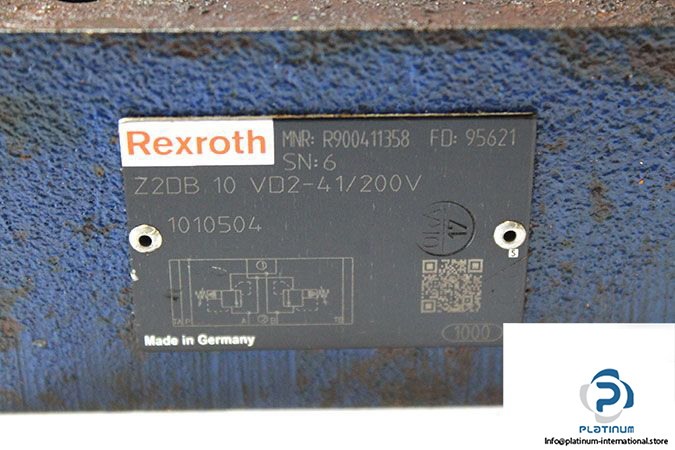

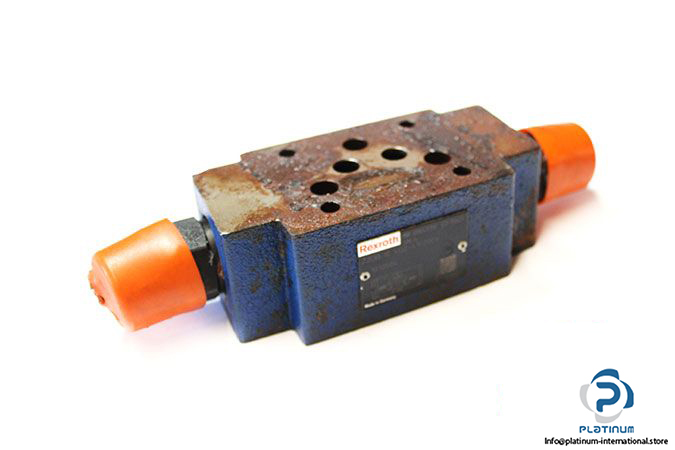

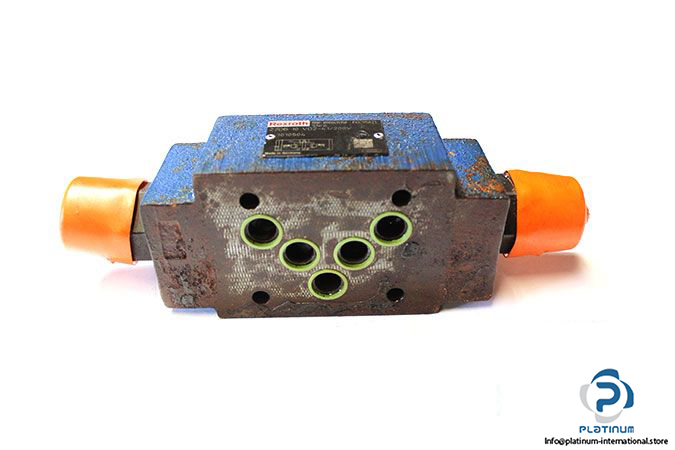

Rexroth R900411358 Pressure Relief Valve Pilot Operated

Manufacturer: Rexroth Hydraulics

Type: Pressure Relief Valve Pilot Operated

Model: Z2DB10VD2-41/200V

MNR: R900411358



Size: 10

Adjustment Element: Sleeve with Hexagon and Protective Cap

Maximum Set Pressure:200 bar

Ambient Temperature Range: –20 …. +80 ^oC

Maximum Operating Pressure: 315 bar

Maximum Flow Rate: 100 l/min

Hydraulic Fluid Temperature Range: –20 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sup-plate

Weight: 2.85 kg
