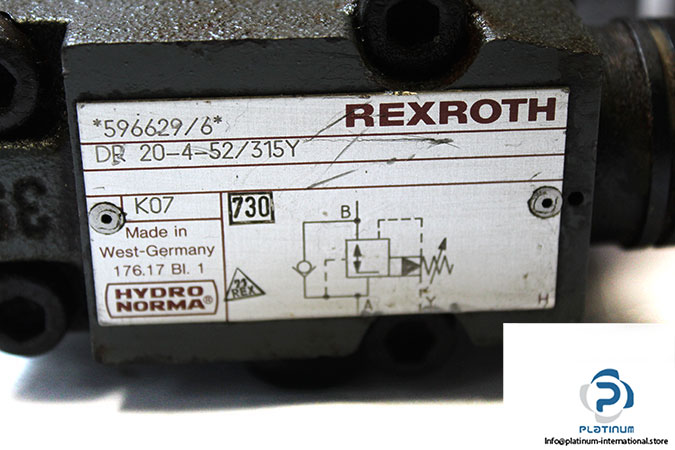

Rexroth R900596629 Pressure Reducing Valve Pilot Operated

Manufacturer: REXROTH

Type: Pressure Reducing Valve Pilot Operated

Model: DR20-4-52/315Y

MNR: R900596629

Size: 20

Pressure Setting: 315 bar

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at port B: 350 bar

Operating Pressure Range at port A: 10 to 350 bar

Maximum Back Pressure at port Y: 350 bar

Maximum Flow Rate: 300 L/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sub-Plate
