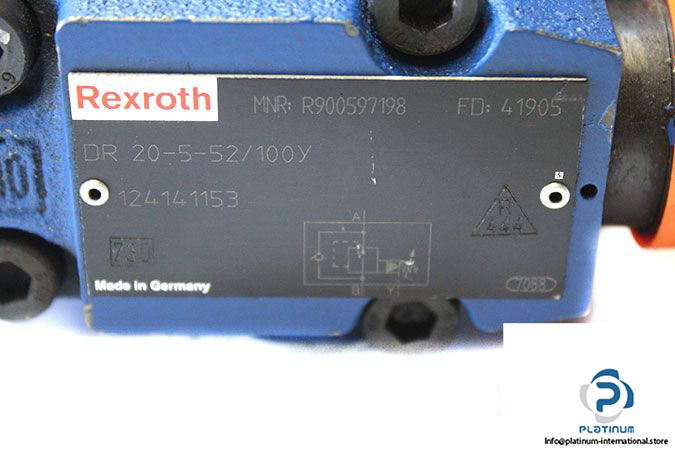

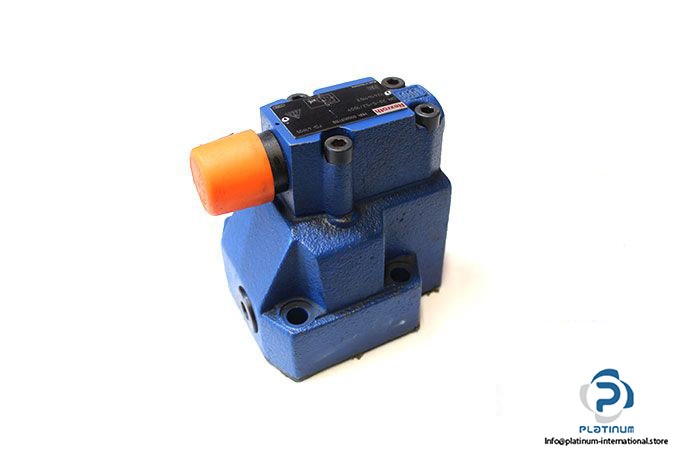

Rexroth R900597198 Pressure Reducing Valve Pilot Operated

Manufacturer: MANNESMANN REXROTH

Type: Pressure Reducing Valve Pilot Operated

Model: DR20-5-52/100Y

MNR: R900597198

Size: 20

Pressure Setting: 100 bar

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at port B: 350 bar

Operating Pressure Range at port A: 10 to 350 bar

Maximum Back Pressure at port Y: 350 bar

Maximum Flow Rate: 300 L/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

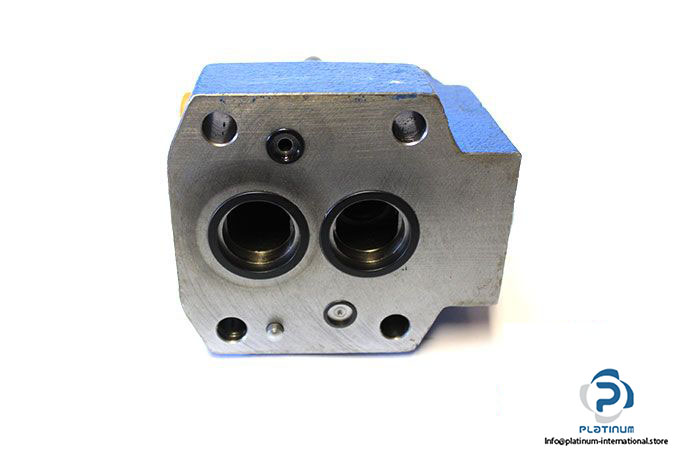

Connection: Sub-Plate

Weight: 5.30 kg
