Rexroth R901061351 Directional Valve Pilot Operated

Manufacturer: Rexroth

Type: Directional Valve Pilot Operated

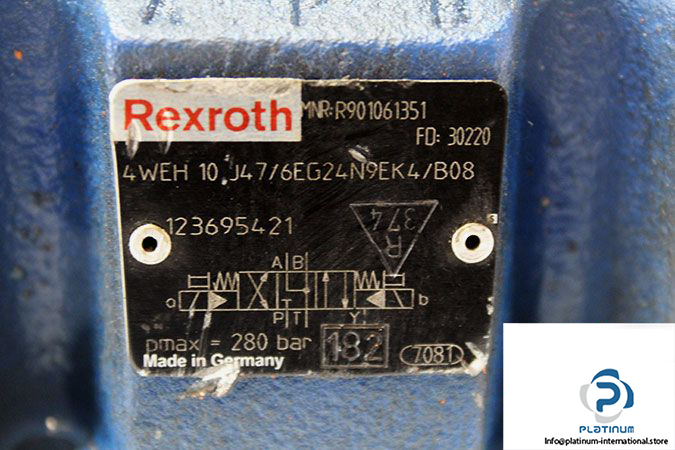

Model: 4WEH 10 J47/6EG24N9EK4/B08

MRN: R901061351

Size: NG 10

Type of Actuation: Electrohydraulic

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure at Ports P, A, B: 280 bar

Maximum Pilot Pressure: 250 bar

Fluid: Oil

Maximum Flow Rate: 1100 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 2.8 … 500 mm²/s

Connection: Sup-Plate

Weight: 5.31 kg
