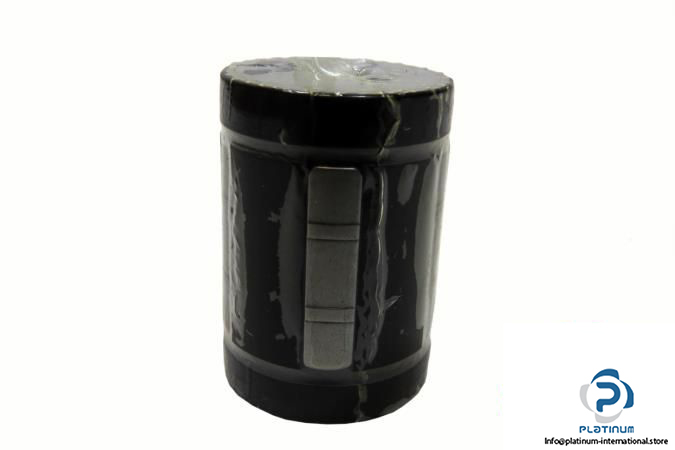

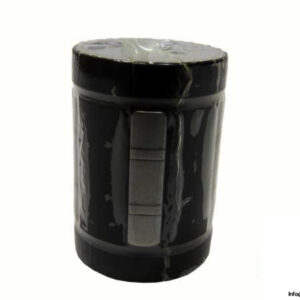

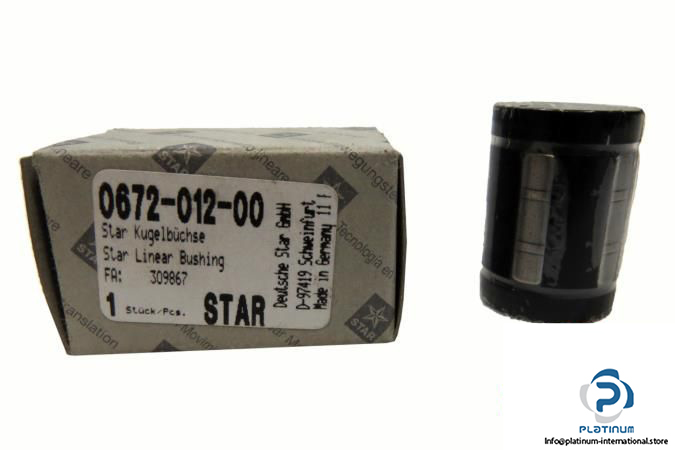

Rexroth Star 067201200 Linear Bushing

Manufacturer: REXROTH STAR
Type: Super Linear Bushing KBB

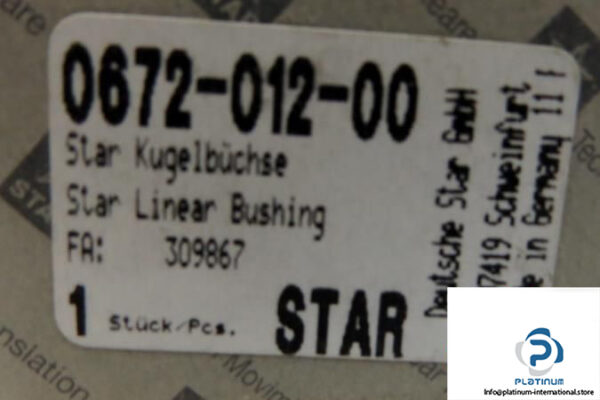

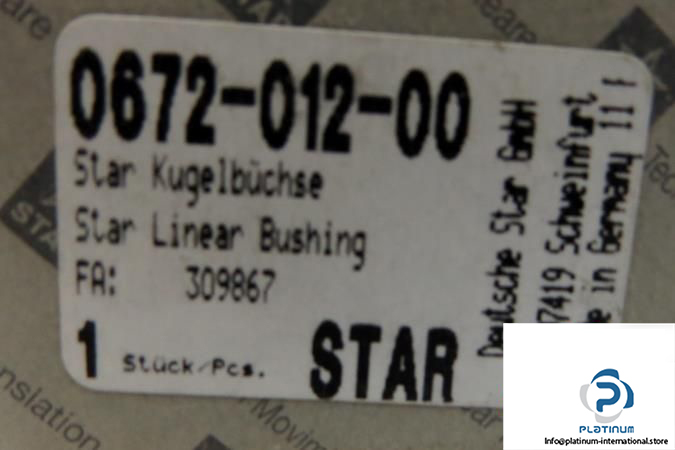

MNR: 0672-012-00

Dimensions:
Shaft diameter d0: 12 mm
Rows of Balls: 5
Design Type: Closed
Maximum permissible linear speed vmax: 3 m/s
Max. acceleration amax: 150 m/s²
Breakaway force: 1.5 N
Maximum dynamic load capacity Cmax: 1140 N
Dynamic Load rating C: 770 N
Static Load rating C₀: 420 N
Dimensions:
D: 22 mm
C: 32   mm
C1: 22.6 mm
D1: 21
Seals: With two integrated wiper seals
Permissible Ambient Temperature: -10 … +80 °C
