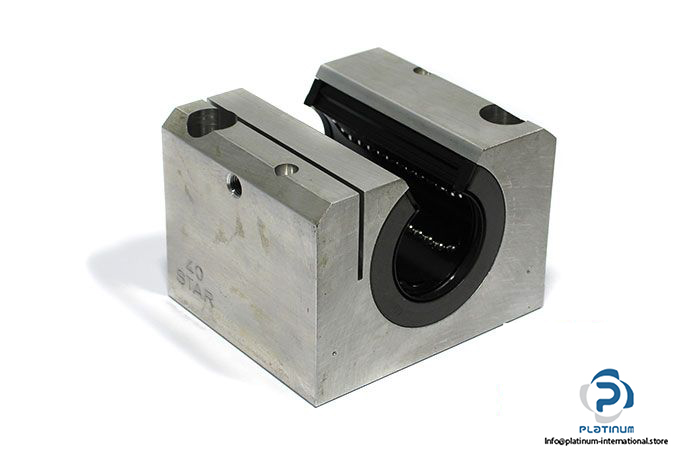

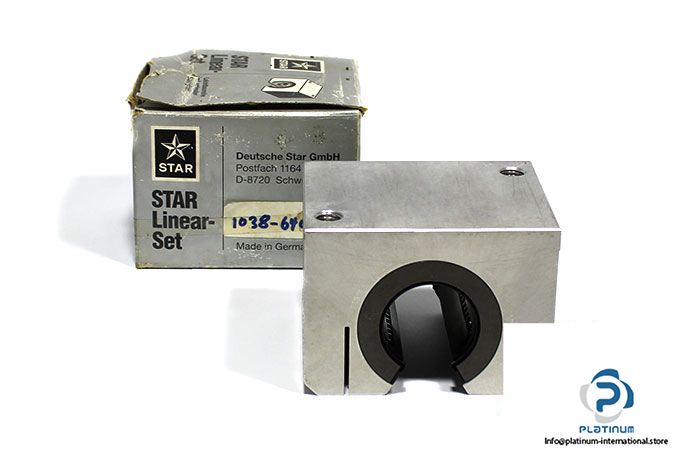

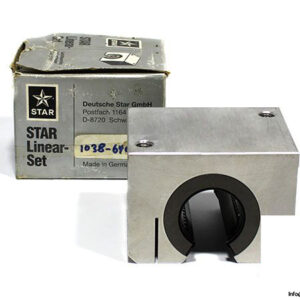

Rexroth Star 1038-640-00 Linear SET With Super Linear Bushing A

Manufacturer: REXROTH STAR

Type: Linear Sets with Super Linear Bushings A, Open Type, Adjustable

MNR: 103864000

Replaces: 103864020

Model: LSAOE-A-40-DD

Shaft diameter d: 40 mm

Design type: Open Type, Adjustable

Housing Format: Aluminum

Dynamic Load Capacity C: 7680 N

Static Load Capacity C₀: 4480 N

Friction Force F_R: 3 N

Breakaway Force: 8 N

Maximum Acceleration Travel a_max: 150 m/s²

Maximum Permissible Speed v_max: 3 m/s

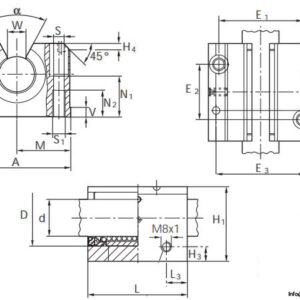

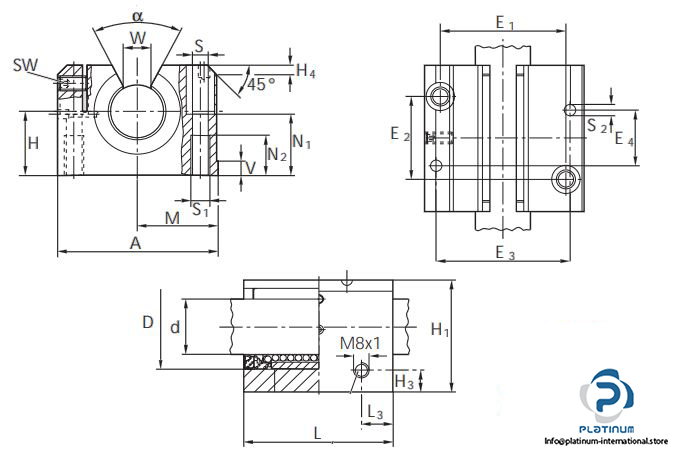

Dimensions:

A: 108 mm

L: 91 mm

H₁: 77 mm

E₁: 86 mm

E₂: 58 mm

Seals: With two seals

Operating temperature: -10… +80 °C

Weight: 1.6 kg
