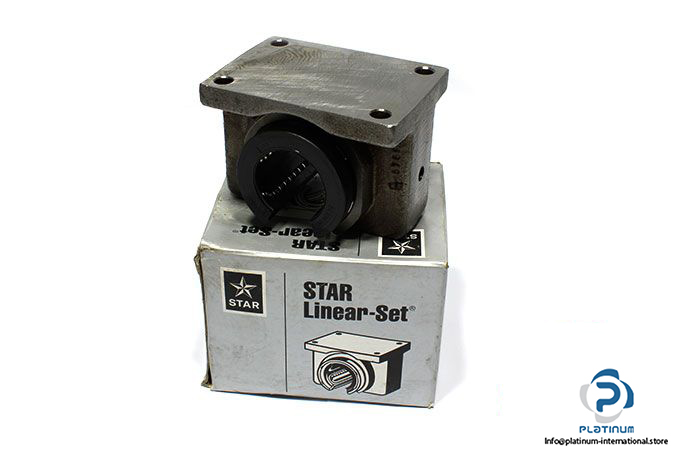

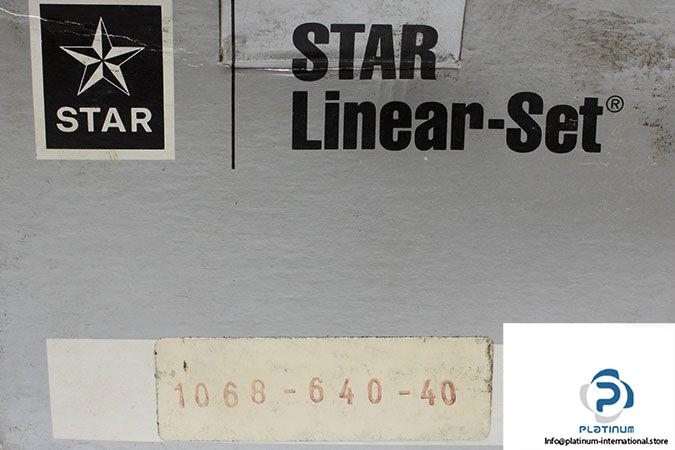

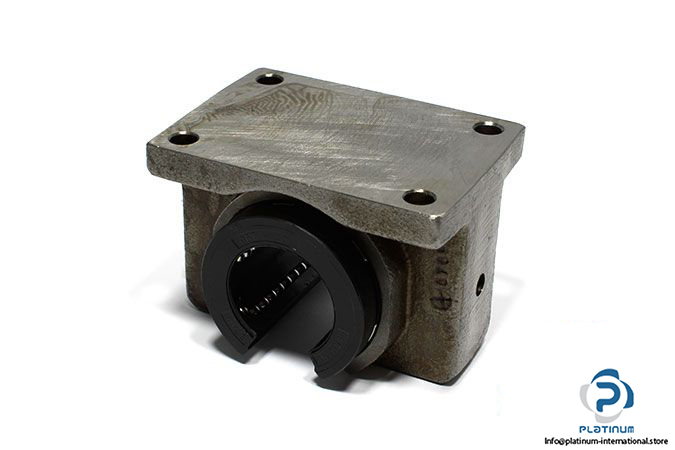

Rexroth Star 1068-640-40 Linear SET With Super Linear Bushing A

Manufacturer: REXROTH STAR

Type: Linear Sets with Super Linear Bushings A (Self-alignment)

MNR: 106864040

Model: LSGOE-A-40-DD

Shaft diameter d: 40 mm

Design type: Open type, Adjustable

Housing Format: Cast iron

Dynamic Load Capacity C: 7680 N

Static Load Capacity C₀: 4480 N

Friction Force F_R: 3 N

Breakaway Force: 8 N

Maximum Acceleration Travel a_max: 150 m/s²

Maximum Permissible Speed v_max: 3 m/s

Angle α: 56°

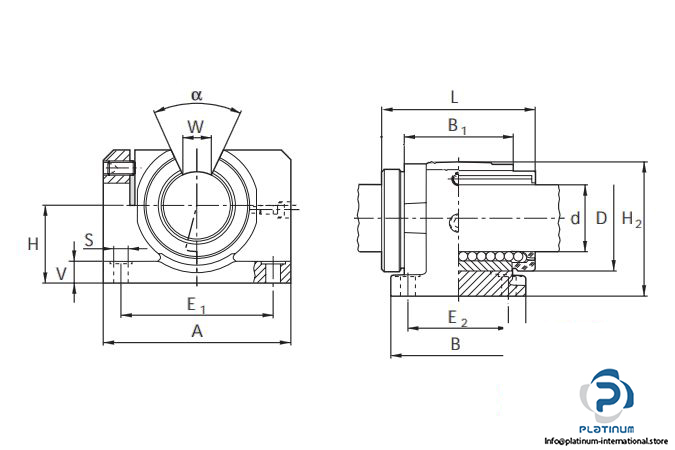

Dimensions:

A: 108 mm

L: 80 mm

H₂: 77 mm

E₁: 86 mm

E₂: 58 mm

Seals: With two integrated wiper seals

Operating temperature: up to 80°C

Weight: 2.1 kg
