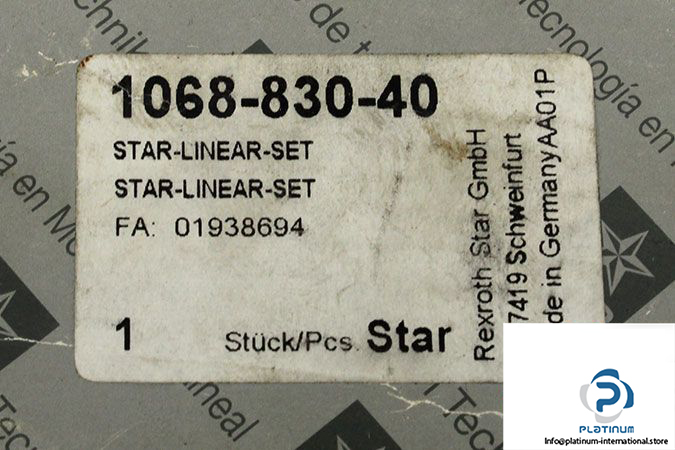

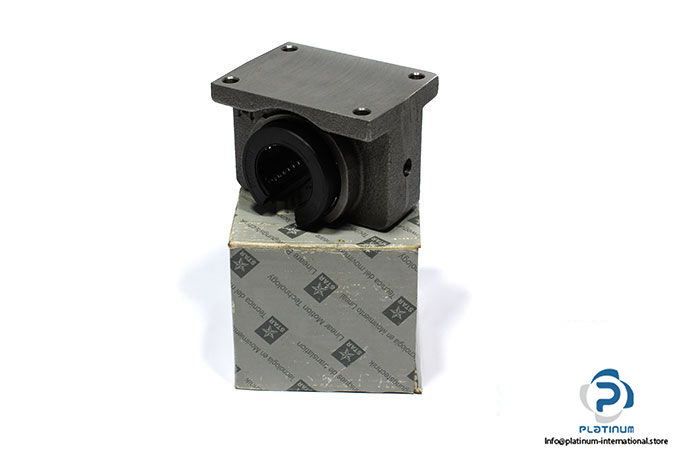

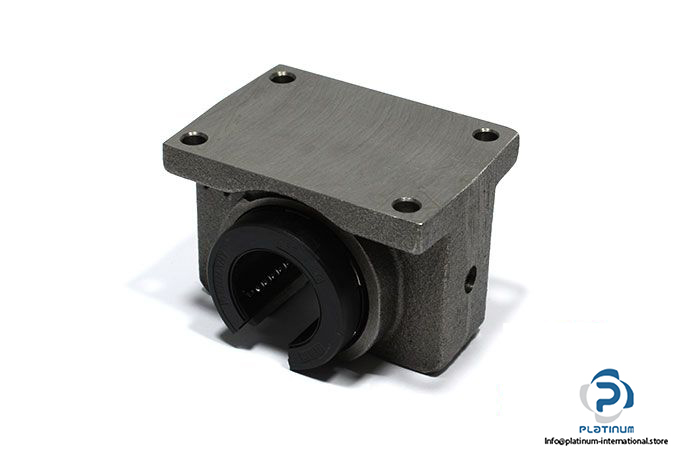

Rexroth Star 1068-830-40 Linear SET With Super Linear Bushing B
Manufacturer: REXROTH STAR
Type: Linear Sets with Super Linear Bushings B
MNR: 106883040
Model: LSGOE-B-30-DD
Shaft diameter d: 30 mm
Design type: Open type, Adjustable
Housing Format: Cast Iron
Dynamic Load Capacity C: 4470 N
Static Load Capacity C0: 2880 N
Friction Force FR: 2.5 N
Breakaway Force: 6 N
Maximum Acceleration Travel amax: 150 m/s2
Max. Permissible Speed vmax: 3 m/s
Angle α: 57°

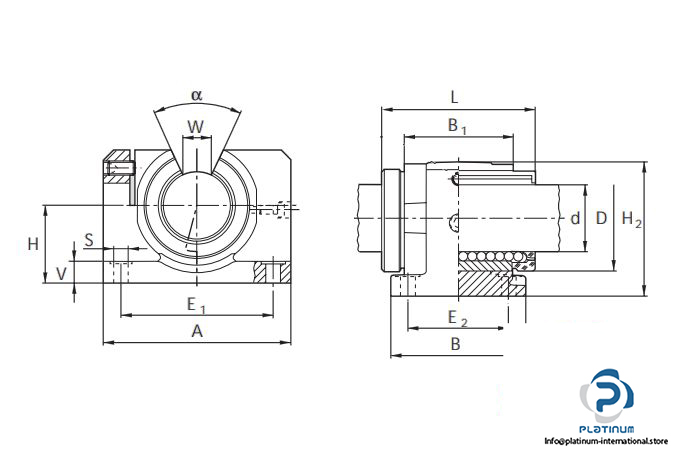

Dimensions:
A: 84 mm
L: 68 mm
H2: 60 mm
E1: 68 mm
E2: 45 mm
Seals: With two internal seals
Operating temperature: up to 80°C
Weight: 1 kg
