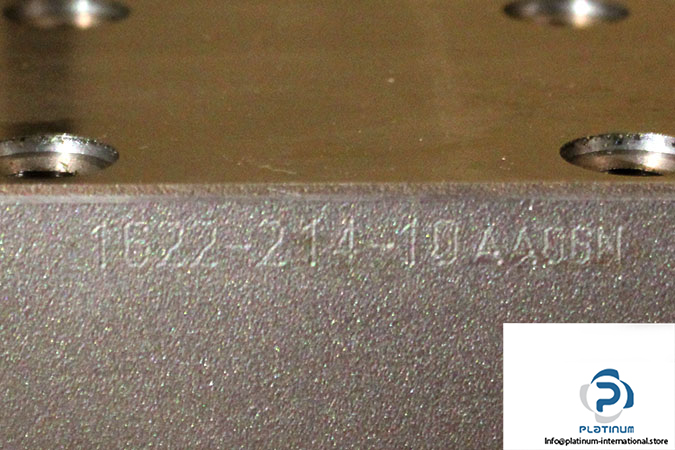

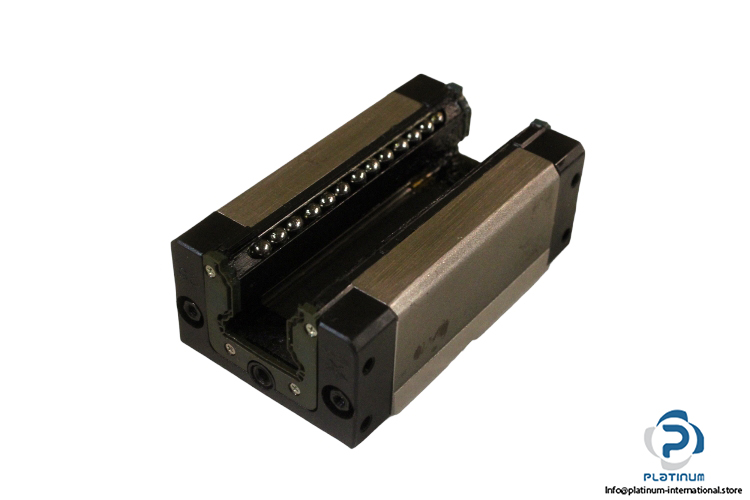

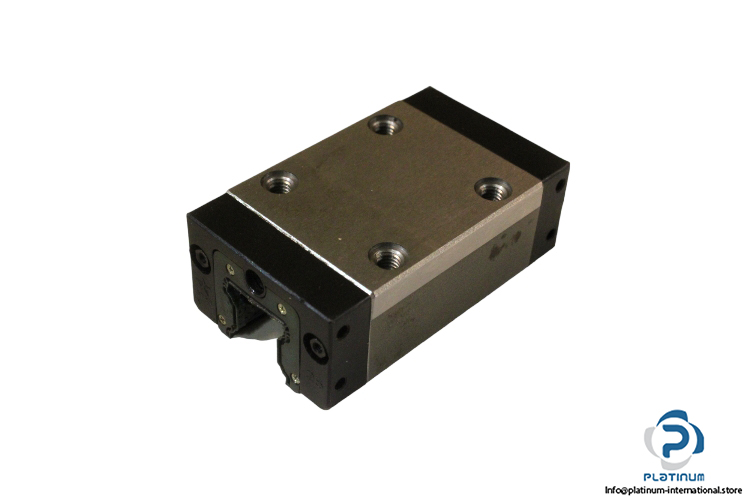

Rexroth Star 1622-214-10 Ball Runner Block SNS

Manufacturer: Rexroth Star

Type: Ball Runner Block SNS

MNR: R162221410 , 162221410

Size: 25 mm

Mechanical Format: KWD

Design: SNS – Slimline, normal, standard height

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 22800 N

Static Load Capacity C₀: 30400 N

Dynamic Torsional Moment Load Capacity M_t:  320 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 180 Nm

Accuracy Class: N – Normal

Preload Class: C1 – Low

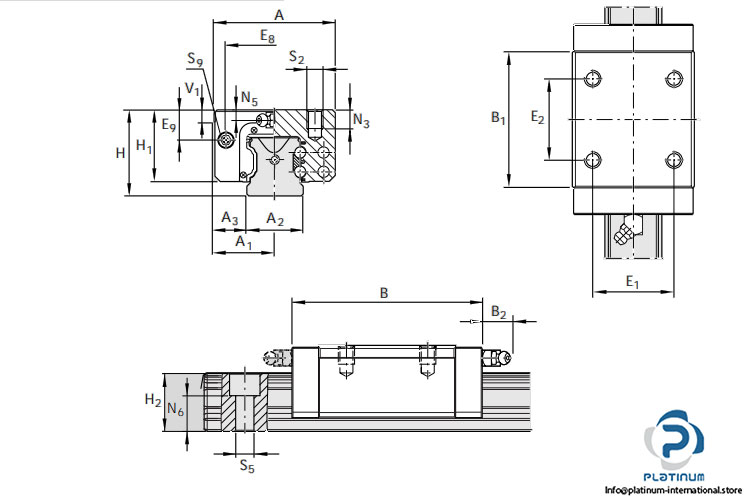

Dimensions

Width (A): 48 mm

Length (B): 81 mm

Block Height (H₁): 29.5 mm

Total height (H): 36 mm

Admissible Operating Temperature: -10 … +80 °C
