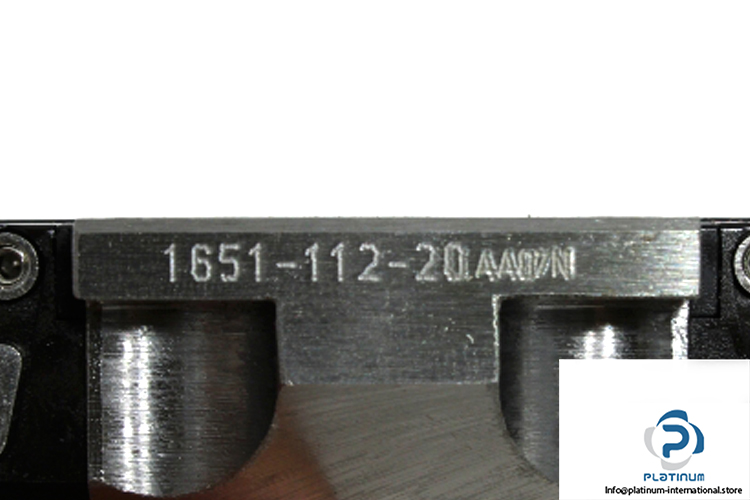

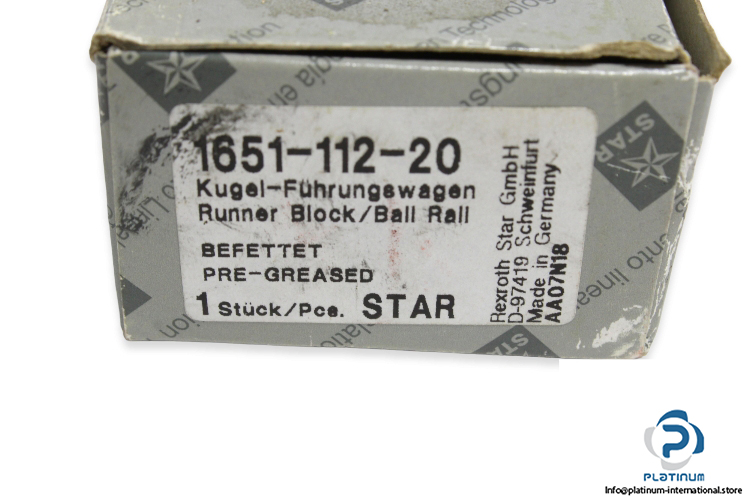

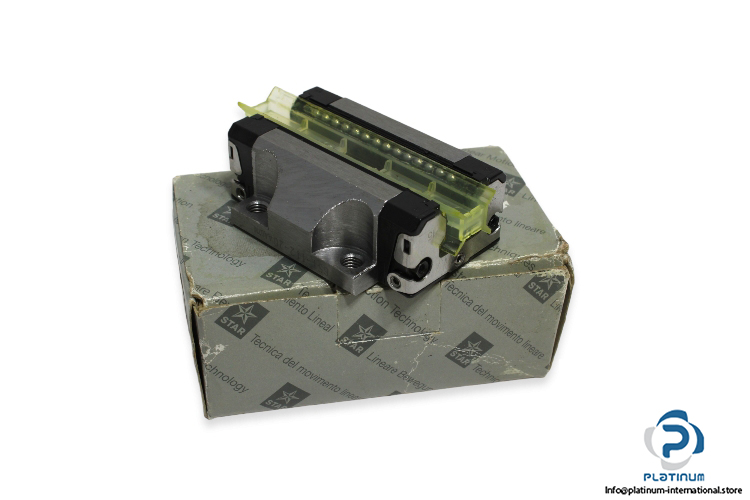

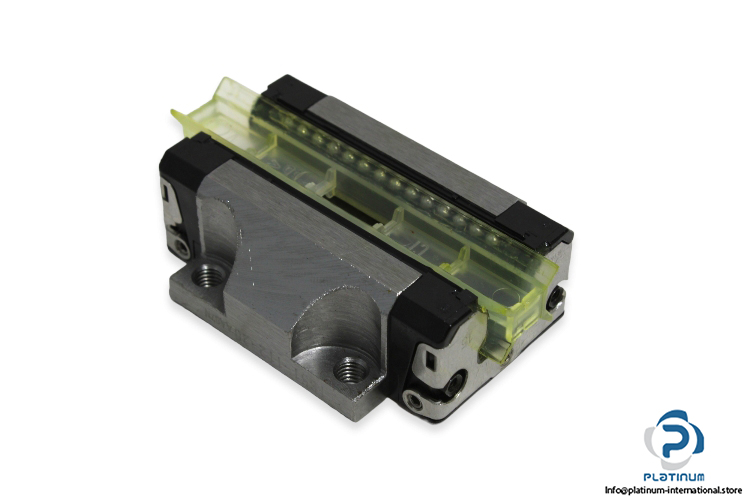

Rexroth Star 1651-112-20 Ball Runner Block FNS

Manufacturer: Rexroth Star

Type: Ball Runner Block FNS

MNR: R165111220 , 165111220

Size: 15 mm

Mechanical Format: KWD

Design: FNS – Flanged, Normal, Standard Height

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 7800 N

Static Load Capacity C₀: 13500 N

Dynamic Torsional Moment Load Capacity M_t:  130 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 40 Nm

Accuracy Class: P – Precise

Preload Class: C1 – Low

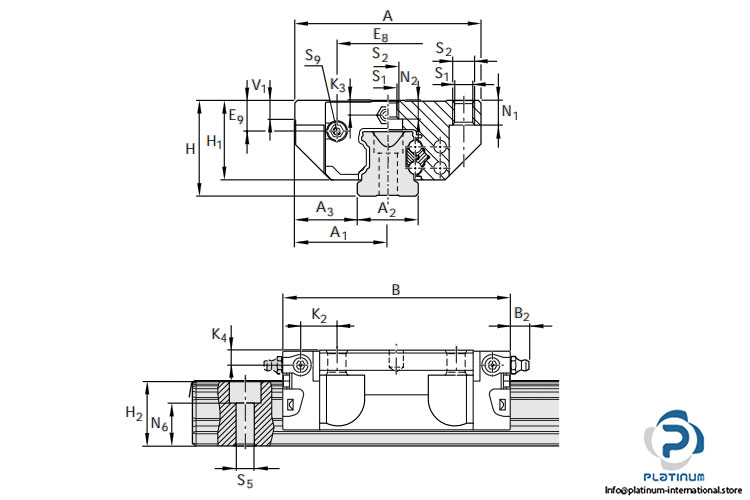

Dimensions

Width (A): 47 mm

Length (B): 58.2 mm

Block Height (H₁): 19.9 mm

Total height (H): 24 mm

Admissible Operating Temperature: -10 … +80 °C
