Rexroth Star 1651-214-10 Ball Runner Block FNS

Available on request

60,00$

Ball Runner Block

Rexroth Star flanged ball runner block (FNS design) size 25 mm with carbon steel construction, normal accuracy class, and low preload for precise and smooth linear motion systems.

Manufacturer
REXROTH STAR
SKU
1003864
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

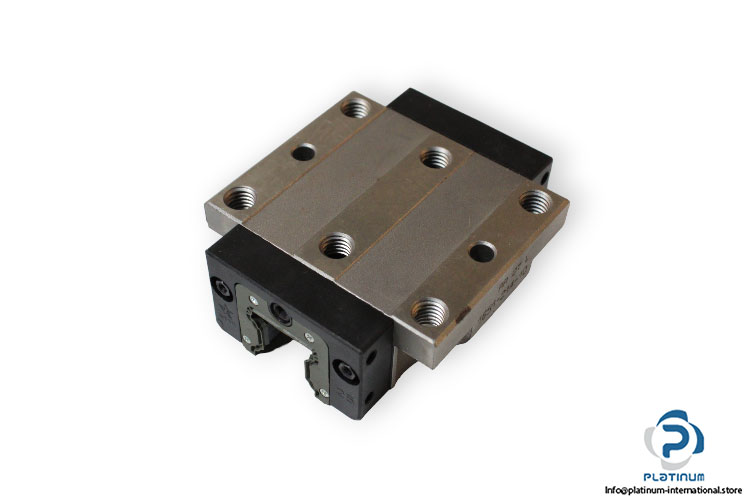

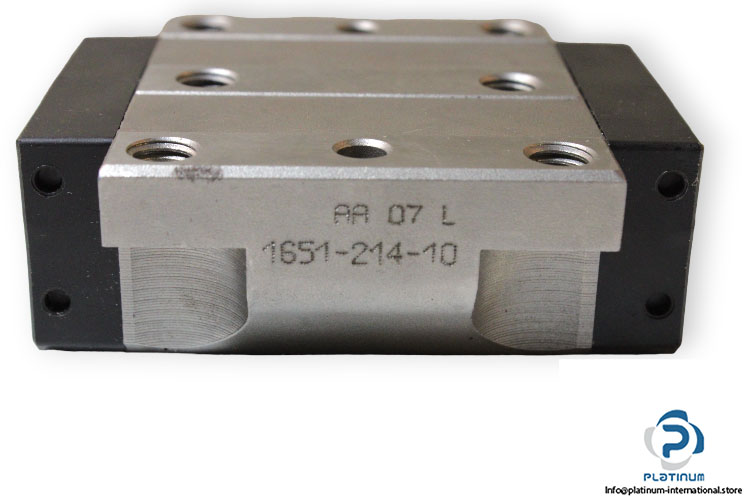

Rexroth Star R165121410 Ball Runner Block FNS

The Rexroth Star R165121410 Ball Runner Block is a high-precision linear motion component designed for profiled rail guide systems. Manufactured from durable carbon steel, this flanged runner block (FNS design) provides reliable load capacity, smooth motion, and excellent rigidity for industrial automation, CNC machinery, and precision linear applications.

Manufacturer: Rexroth Star

Type: Ball Runner Block FNS

MNR: R165121410

Size: 25 mm

Mechanical Format: KWC

Design: FNS œ Flanged, Normal, Standard Height

Material (Profiled Rail Systems): Carbon Steel

Accuracy Class: N œ Normal

Preload Class: C1 œ Low Preload

Maximum Acceleration Travel (amax)500 m/s²
Maximum Permissible Speed (vmax)5 m/s
Dynamic Load Capacity (C)22800 N
Static Load Capacity (C0)30400 N
Dynamic Torsional Moment Load Capacity (Mt)320 Nm
Static Torsional Moment Load Capacity (Mt0)430 Nm
Dynamic Longitudinal Moment Load Capacity (ML)180 Nm
Static Longitudinal Moment Load Capacity (ML0)240 Nm

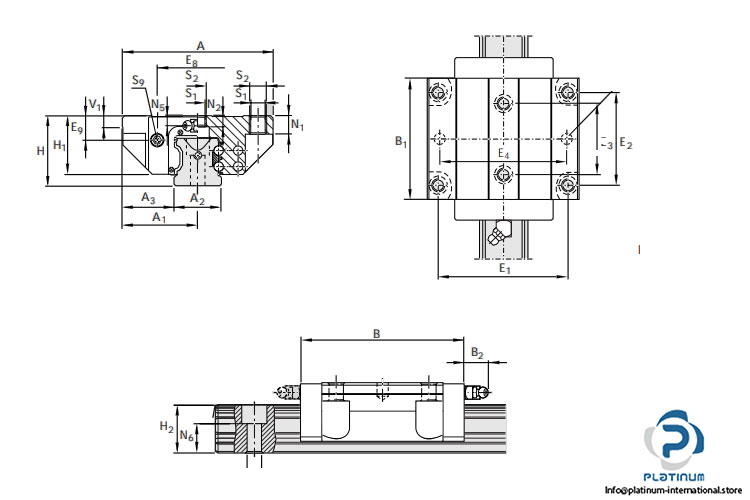

Width (A)70 mm
Length (B)81 mm
Height of System (H)36 mm
Height of Block (H1)29.5 mm
E157 mm
E245 mm
Admissible Operating Temperature-10 °C / +80 °C
LinearNote: We also provide the corresponding rails (guideways) in a wide range of lengths”please ask us if you need rails to match your bearing.
RecommendationFor optimal performance and long service life, pairing this runner block with the correct Rexroth profiled guide rail ensures precise alignment and smooth linear motion in demanding automation systems.
