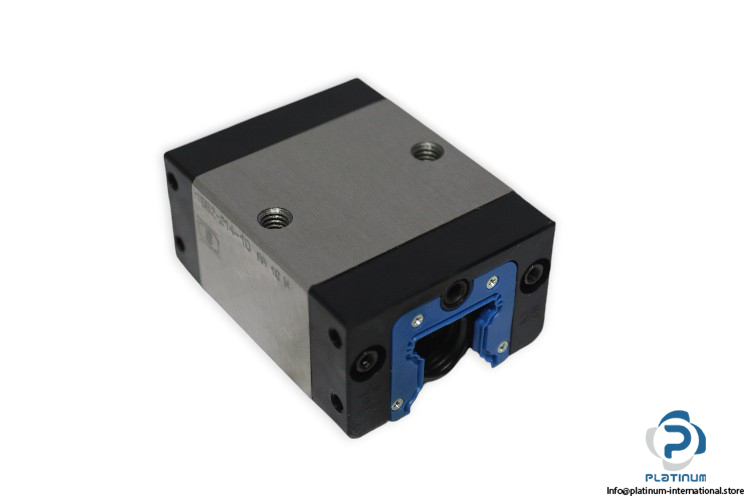

Rexroth Star 1662-214-10 Ball Runner Block
Manufacturer: REXROTH STAR
Type: BALL RUNNER BLOCK SKS
MNR: R166221410
Size: 25 mm

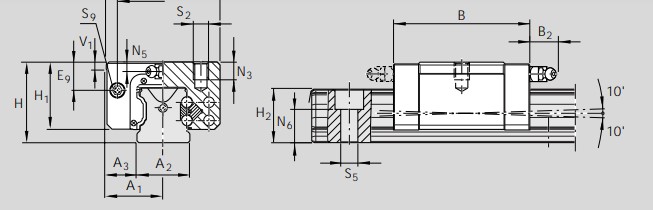

Dimensions
Width (A): 48 mm
Length (B): 61.5 mm
Height of runner block: 29.5 mm
Height runner block with guide rail: 36 mm
E1: 35 mm
E8: 38.3 mm
Design: SKS – slimline, Short, standard height
Dynamic Load Capacity C: 11400 N
Max. acceleration a max: 500 m/s²
Maximum permissible linear speed v max: 5 m/s
Dynamic Torsional Moment Load Capacity Mt: 170 Nm
Dynamic Torsional Moment Load Capacity Mt max: 65 Nm
Accuracy Class: N – Normal
Preload Class: C1 – Low Preload
