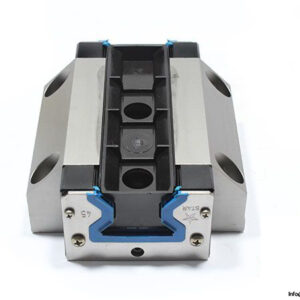

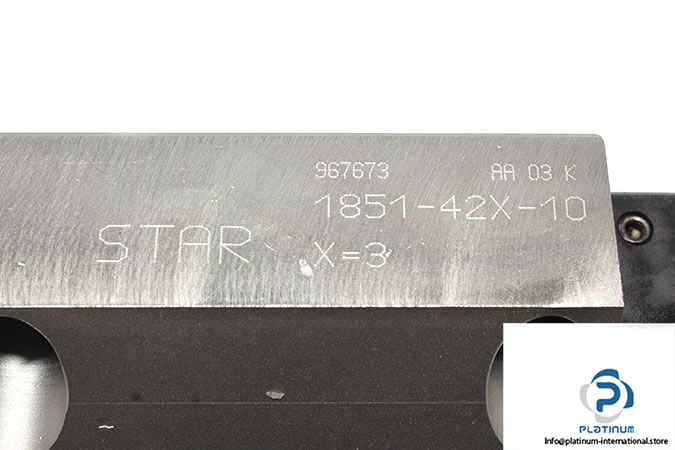

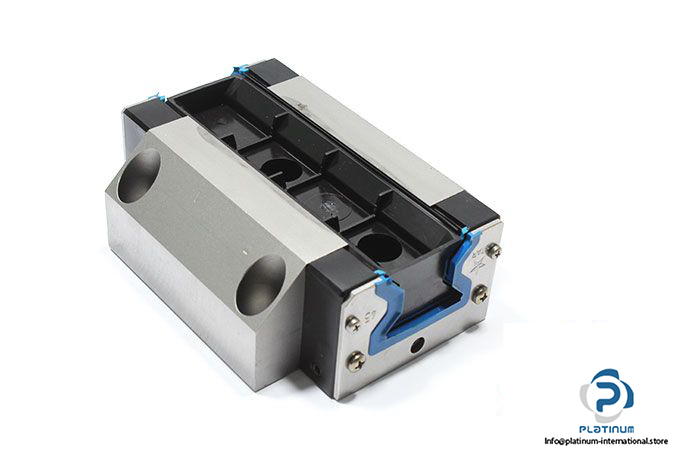

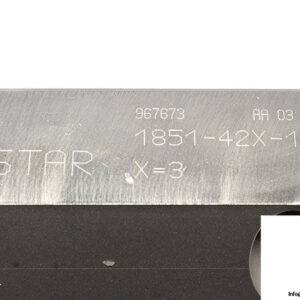

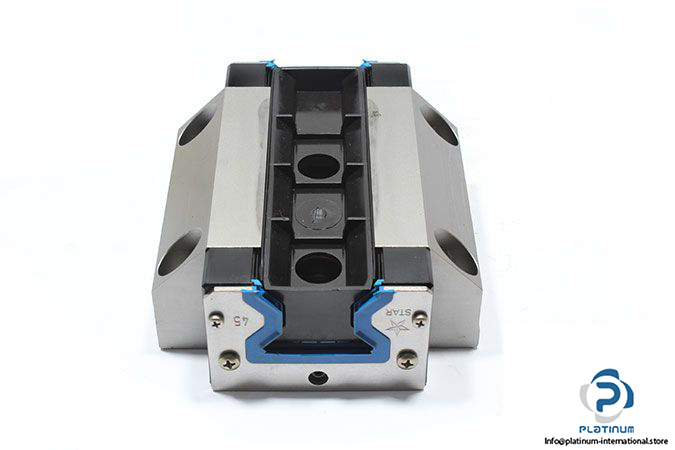

Rexroth Star 1851-423-10 Roller Runner Block FNS

Manufacturer: Rexroth Star

Type: Roller Runner Blocks FNS

MNR: 185142310

Size: 45 mm

Mechanical Format: RWA

Design: FNS – Flanged, Normal, Standard Height

Format: CS – Carbon Steel

Maximum Acceleration Travel a_max: 150 m/s²

Maximum Permissible Speed v_max: 4 m/s

Dynamic Load Capacity C: 92300 N

Static Load Capacity C₀ : 184800 N

Dynamic Torsional Moment Load Capacity M_t:  2277 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 1430 Nm

Accuracy Class: H

Preload Class: C2 -Average Preload

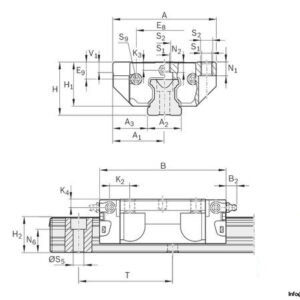

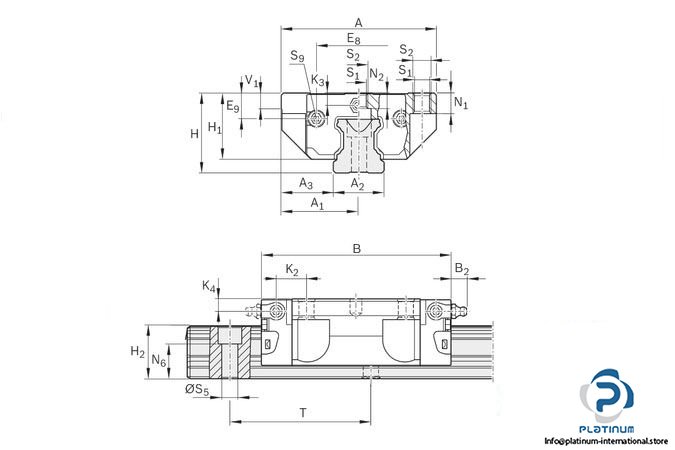

Dimensions

Width ( A ): 120 mm

Length ( B ): 140 mm

Height ( H₁ ): 51 mm

Admissible Operating Temperature: -10… +80 °C

Weight: 3.3 kg
