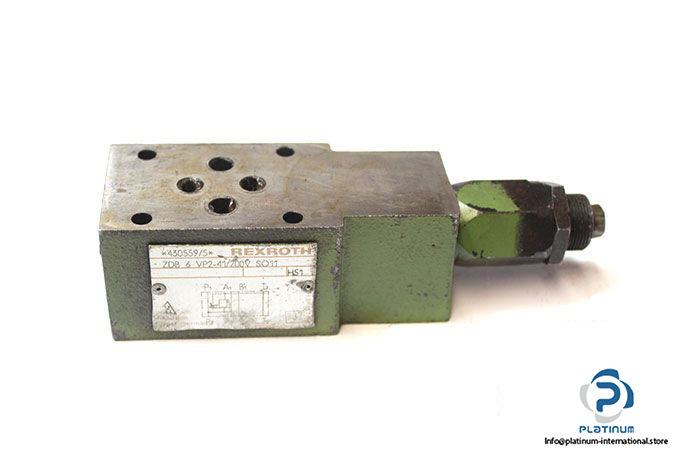

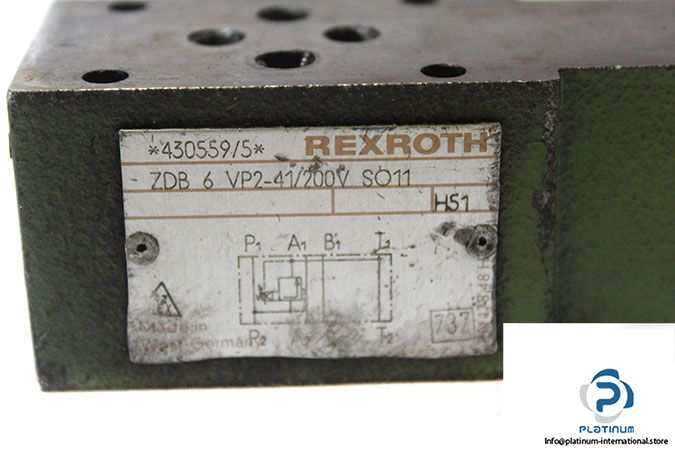

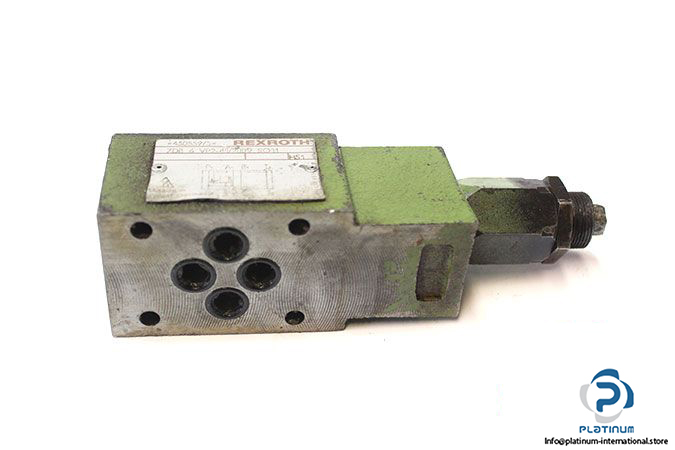

Rexroth ZDB 6 VP2-41/200V SO11 Pressure Relief Valve Pilot Operated

Manufacturer: REXROTH

Type: Pressure Relief Valve Pilot Operated

Model: ZDB6VP2-41/200V SO11

Nominal Size: 6

Adjustment Element: Sleeve with hexagon and protective cap

Ambient Temperature Range: -20 ….. +80 °C

Maximum Operating Pressure: 315 bar

Maximum Settable Pressure :200 bar

Back pressure port (Y): 315 bar

Maximum Flow Rate: 60 L/min

Fluid Temperature Range: -20 ….. +80 °C

Viscosity range: 10…800 mm²/s

Connection: Sub-plate

Weight: 1.08 kg
