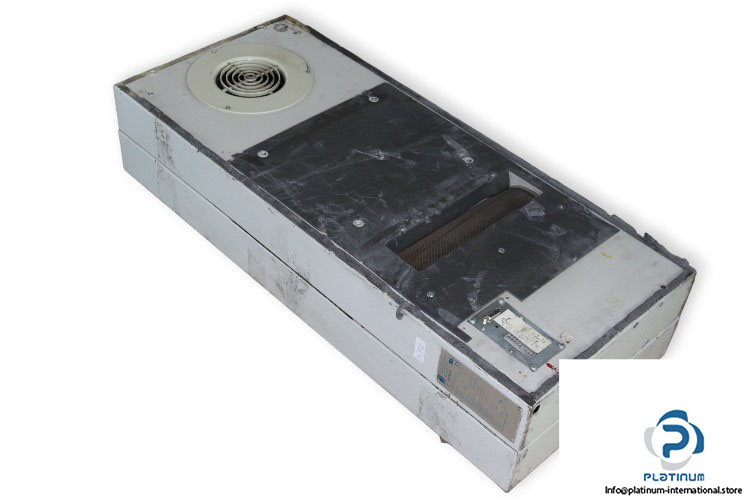

Rittal SK 3393500 Enclosure Cooling Unit

Manufacture: Rittal
Type: Enclosure Cooling Unit
Model: SK3393500
Series: SK

Rated Voltage: 230 V AC
Frequency: 50/60 Hz
Rated current max.:
At 50 Hz: 4.2 A
At 60 Hz: 4.4 A
Start-up current max.:
At 50 Hz: 9.8 A
At 60 Hz: 11.4 A
Nominal refrigeration capacity: L35 L35 (590/660 W), L35 L50 (670/750 W) , L35 L35 (1100/1150 W), L35 L50 (830/850 W)
Noise level: 62 dB(A)
Refrigerant: R 134a,550 g
Allowable pressure: High 24 bar, low 6 bar
Pre-fuse T: 6 A
Temperature range: 20 … 55°C
Protection degree: External circuit IP 34, Internal circuit IP 54
Dimensions: 400 x 950 x 230 mm
