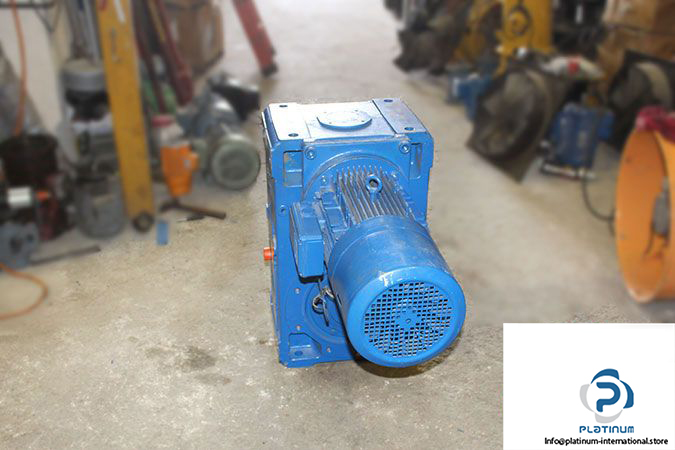

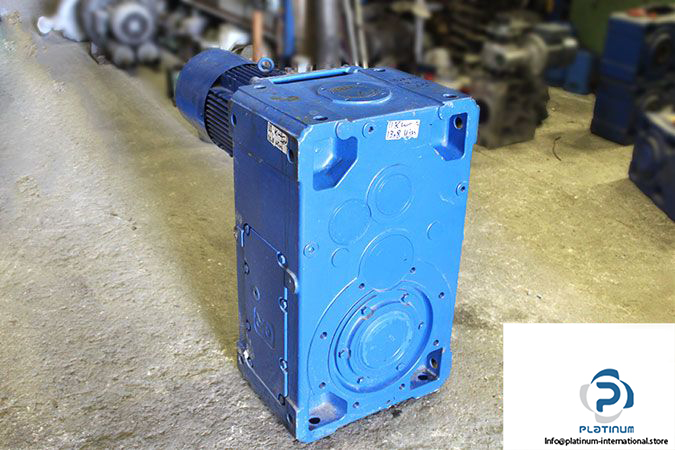

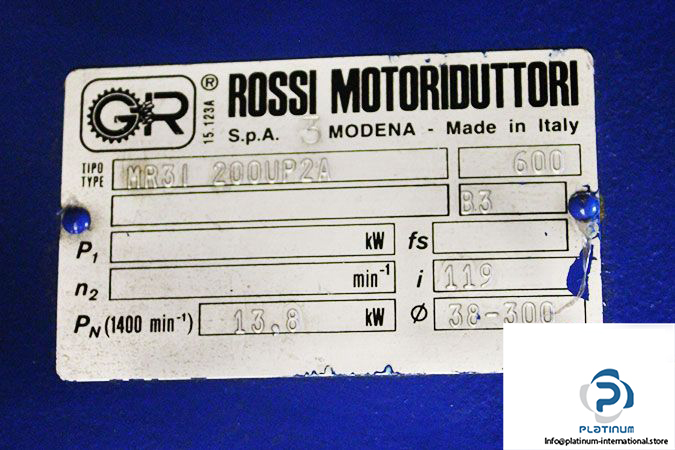

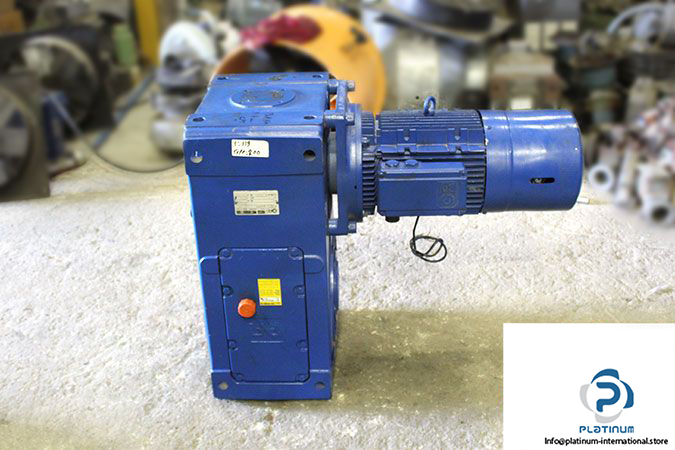

Rossi MR3I 200 UP2A Helical Gear Motor

Manufacturer: ROSSI MOTORIDUTTORI GR

Type: Helical Gear Motor

Model: MR3I200UP2A

Design: UP2A

Train of Gears: 3I (3 Helical Gear Pairs)

Size: 200 mm

Motor Coupling Dimensions (Ød × ØP): 38 × 300

Hollow Shaft Diameter (Output): 100 mm

Mounting Position: B3

Power P_n (1400 min^-1): 13.8 kW

Transmission Ratio: 119

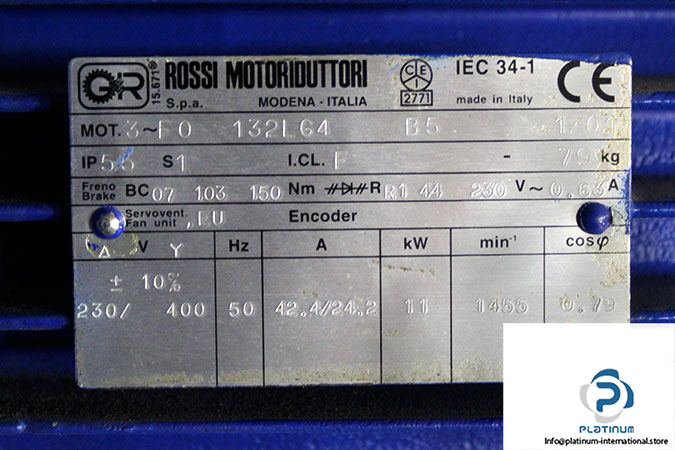

ROSSI 132LG4 MOTOR



Manufacturer: ROSSI MOTORIDUTTORI GR

Type: 3 Phase Electric Motor

Motor Designation: 132 LG 4

Motor Terminal Box Position: B5

Frequency: 50 Hz

Voltage:

• Delta (Δ): 230 V
• Star (Y):  400 V

Current:

• Delta (Δ): 4 A
• Star (Y): 24.2 A

Power: 11 kW

Speed: 1455 min^-1

Power Factor:  0.79 cos ϕ

Protection Class: IP55

Attachment: ROSSI BC 07 103 ELECTRIC MOTOR BRAKE

Brake Torque: 150 Nm

Brake Voltage: 230 V

Brake Current: 0.63 A
