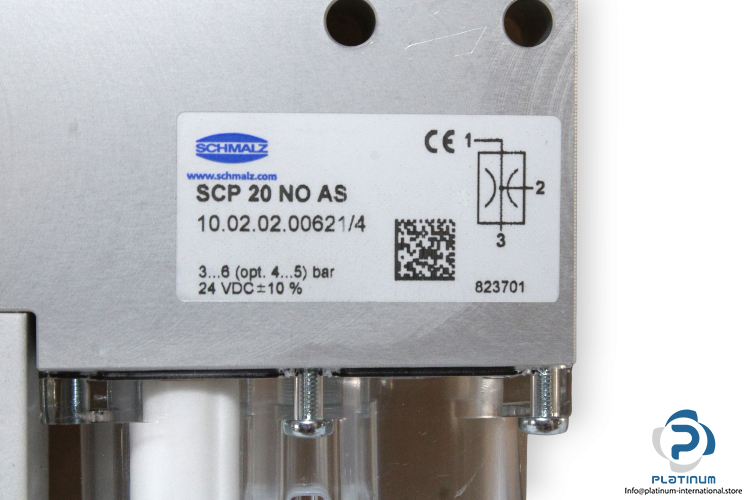

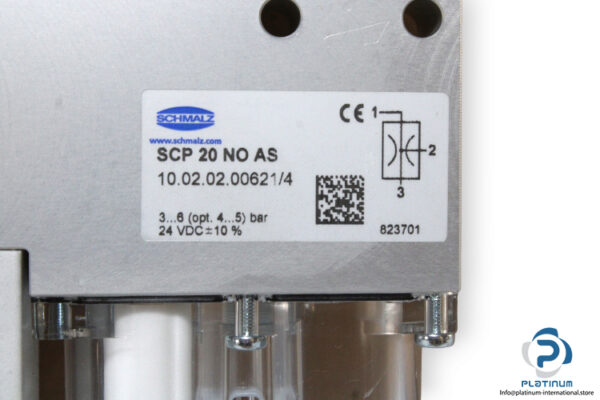

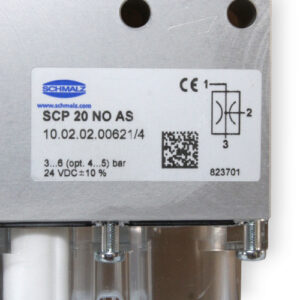

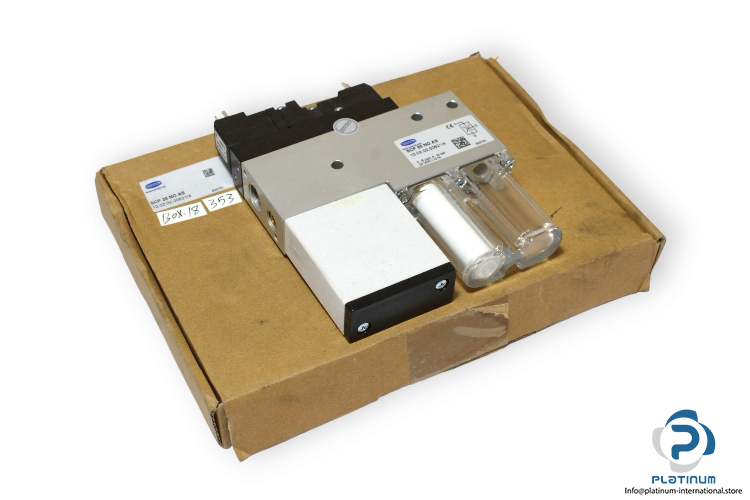

Schmalz SCP 20 NO AS Compact Ejector With Integrated Function
Manufacturer: SCHMALZ
Type: Compact Ejector With Integrated Function
Model: SCP20NOAS
Part no.: 10.02.02.00621/4
Suction rate (max.): 4.10 cfm
Product family: SCP
Nozzle diameter: 2 mm
Suction rate (max.): 116 l/min
Air consumption suction: 190 l/min
Pressure range (operating pressure): 3… 6 bar(4 … 5 bar)
Control valve: Normally open
construction shape compact ejectors: With blow-off system
Port size: G1/4, G3/8
Supply Voltage: 24 V DC

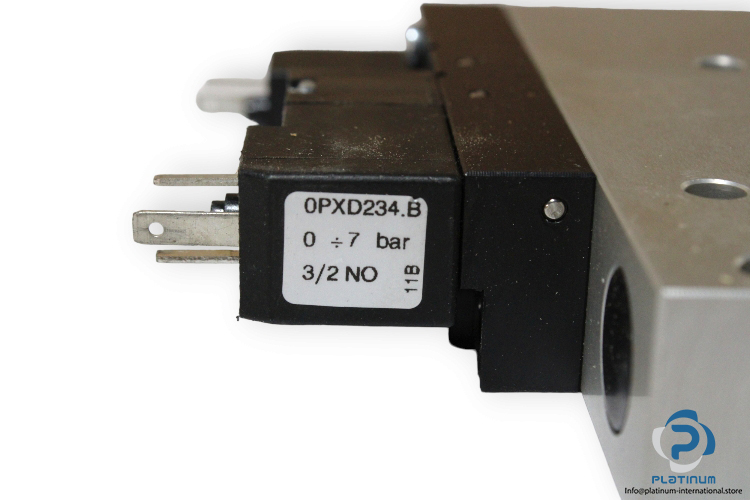

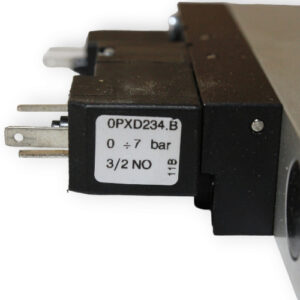

Attachment: OPXD234.B SINGLE SOLENOID VALVE
Type: Single Solenoid Valve
Model: OPXD234.B
Type of Actuation: Electrical
Pressure: 0 … 7 bar
Valve Function: 3/2,Normally open
