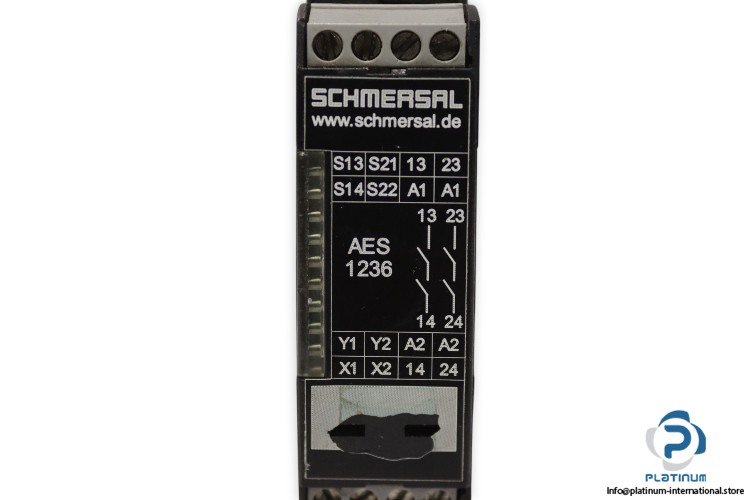

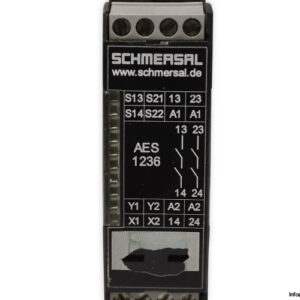

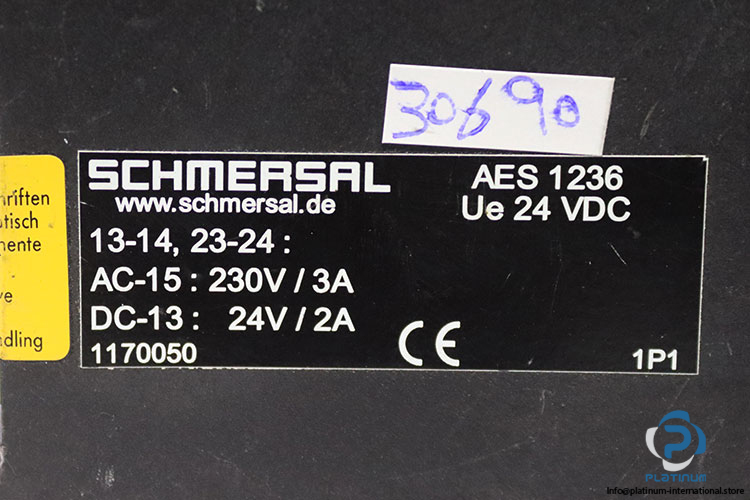

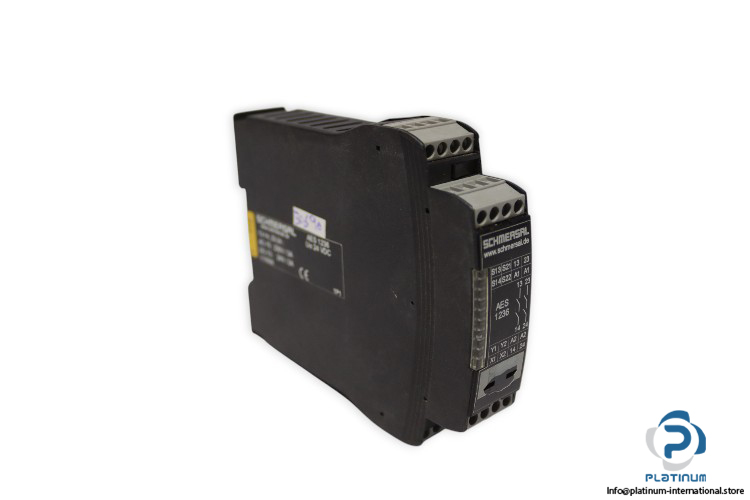

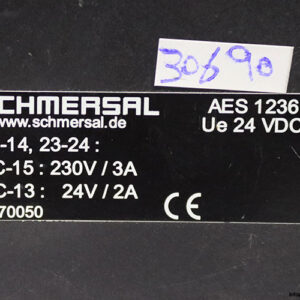

Schmersal AES 1236 Safety Monitoring Module

In stock1 unitReady to ship

Safety Monitoring Module

The SCHMERSAL AES1236 is a compact 22.5 mm safety monitoring module featuring dual safety contacts, multiple outputs, and compliance with EN ISO 13849-1 and EN IEC 61508 standards for industrial safety applications.

Manufacturer
SCHMERSAL
SKU
1083143
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

SCHMERSAL AES1236 Safety Monitoring Module

The SCHMERSAL AES1236 is a high-performance safety monitoring module designed for reliable machine safety and industrial automation. Built to comply with international safety standards, it offers multiple safety contacts, robust protection, and precise monitoring capabilities.

Manufacturer: SCHMERSAL

Type: Safety Monitoring Module

Model: AES1236

Item Number: 1170050

Switching Capacity (Max)24 VDC
Switching Capacity (Max Current)2 A
Input Signal HIGH "1"10 / 30 VDC
Input Signal LOW "0"0 / 2 VDC
Conduction Resistance (Max)40 Ω
Number of LEDs1
Number of Normally Closed (NC)2
Number of Normally Open (NO)1
Undelayed Semi-Conductor Outputs with Signaling Function2
Number of Safety Contacts2
Number of Signaling Outputs2
Safety Classification StandardsEN ISO 13849-1, EN IEC 61508
Cable Section (Min)0.25 mm²
Cable Section (Max)2.5 mm²
Tightening Torque of Clips0.6 Nm
Allowed Cable TypeSolid Single-Wire
Width22.5 mm
Height100 mm
Depth121 mm
Degree of Protection (Enclosure)IP40
Degree of Protection (Installation Space)IP54
Degree of Protection (Clips/Terminals)IP20
Ambient Temperature+0 / +55 °C
Material of Electrical ContactsAg-Ni 10 with 0.2 µm Gold-Plating
