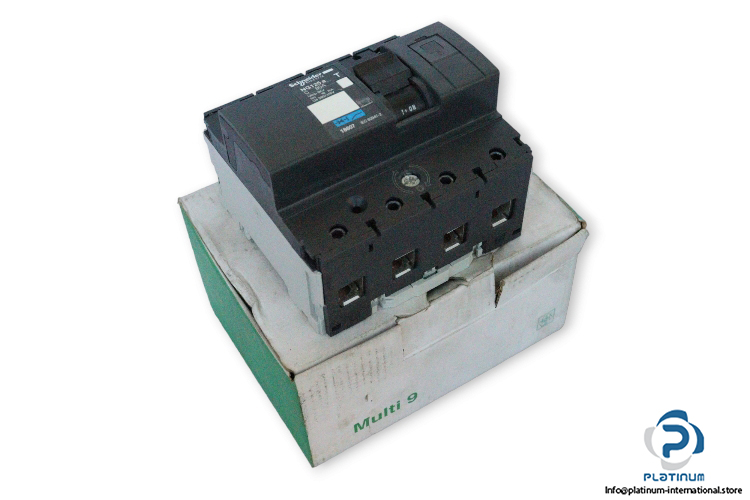

Schneider 18607 Miniature Circuit-Breaker

Manufacture: Schneider
Type: Miniature circuit-breaker

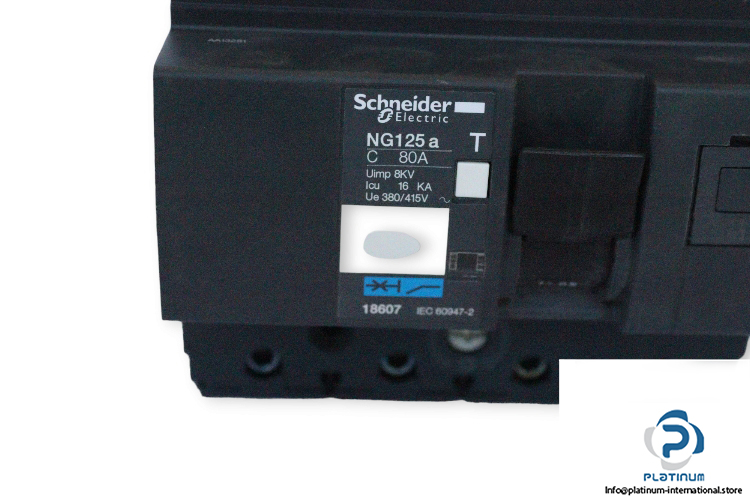

Model: NG125A

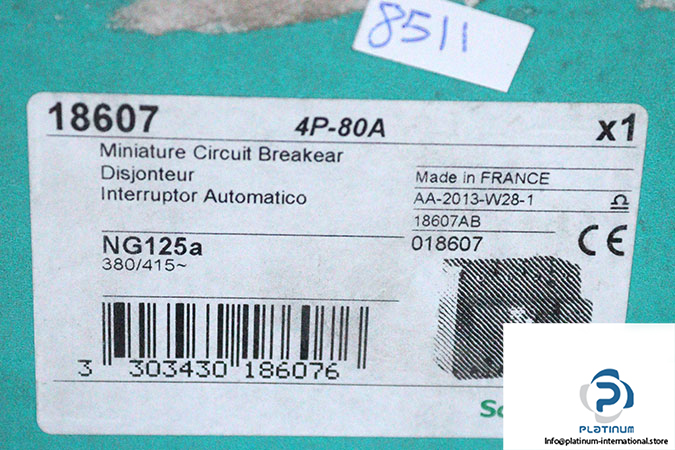

Part No.: 18607
Product name: Acti9 NG125

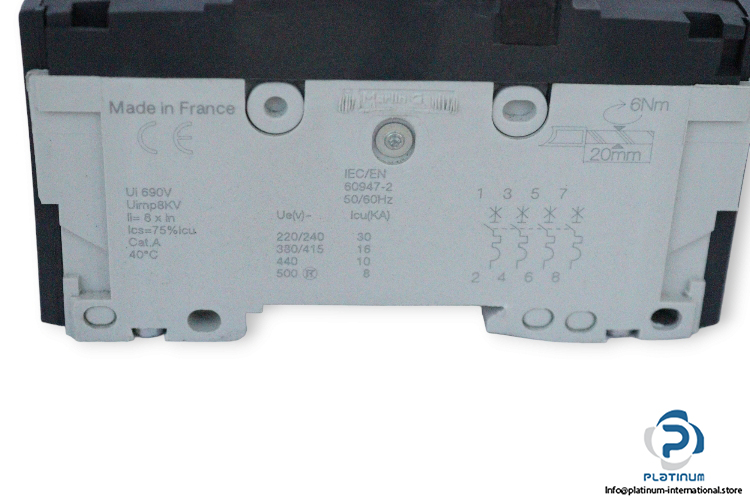

Rated operational voltage Ue: 380 … 415 V AC
Rated impulse withstand voltage Uimp: 8 kV
No. of Poles: 4P
Magnetic tripping limit: 8 x In
Rated current: 80 A at 40 °C
Curve code: C
Breaking capacity: 16 kA
Mounting mode: Clip-on
Mounting support: 35 mm symmetrical DIN rail
Tightening torque: 6 N.m
Degree of protection: IP20
Ambient air temperature for Operation: -30 … 70 °C
Dimensions: 103 x 108 x 81 mm
