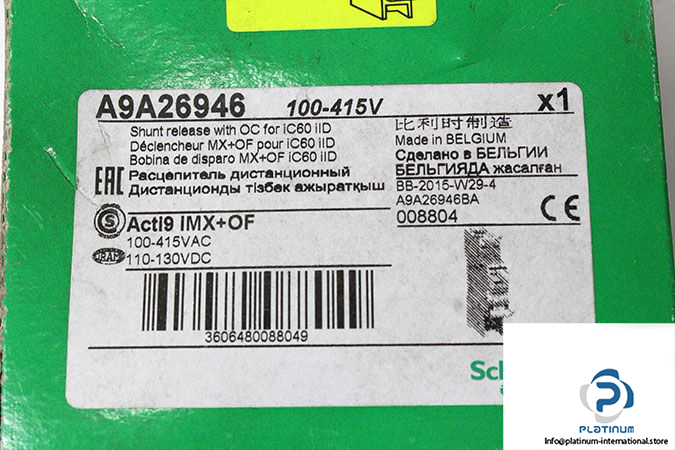

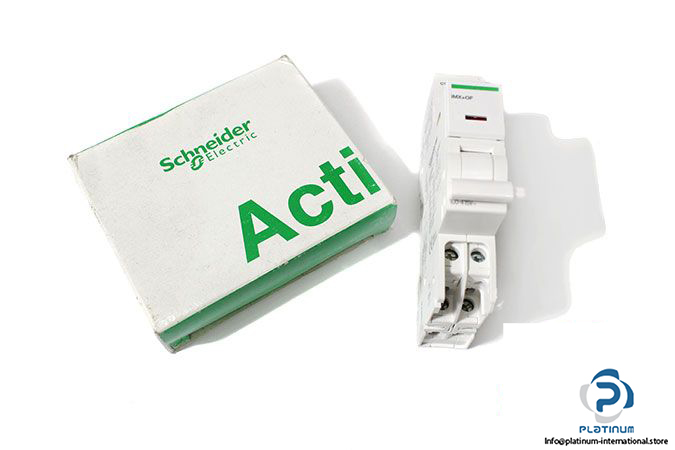

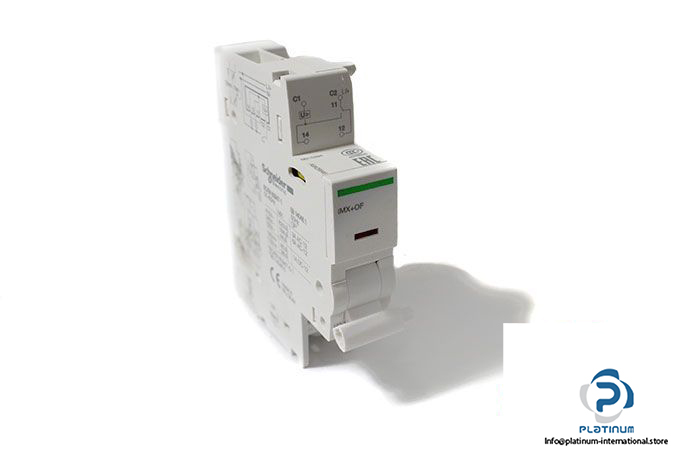

Schneider A9A26946 Shunt Trip Release
Manufacturer: SCHNEIDER ELECTRIC
Type: Shunt Trip Release With OC Contact
Model: A9A26946
Application:
• Motor starters/Control systems
• Switching contactors/relay coils
• Control/Signalling equipment
Device Short Name: IMX+OF
Signal Contacts Composition: 1 C/O
Rated Control Voltage:
100…415 V AC
110…130 V DC
Frequency: 50/60 Hz
Range: Acti 9
Local Signalling: Action indicator
Mounting Mode: Clip-on
Tightening torque: 1 N.m
Width: 18 mm
Operating Temperature: -25 … 50 °C
Weight: 0.08 kg
