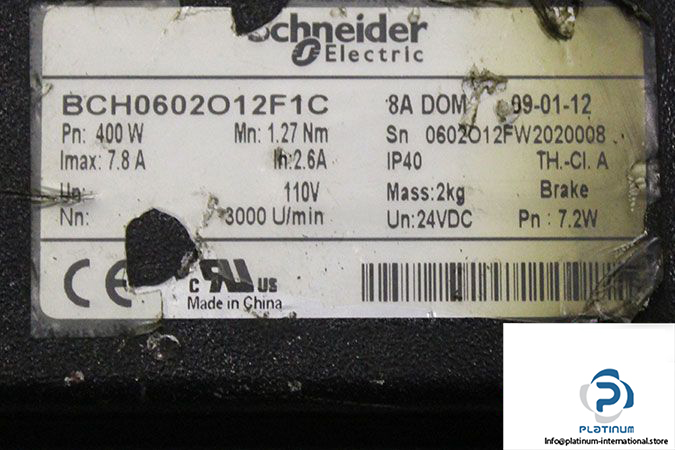

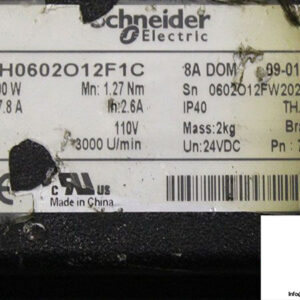

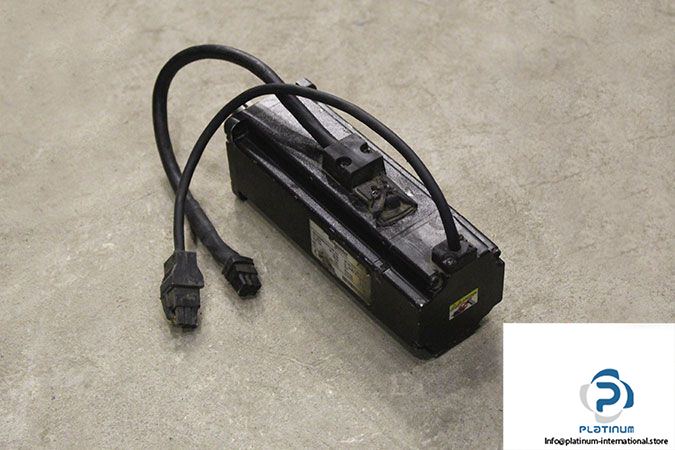

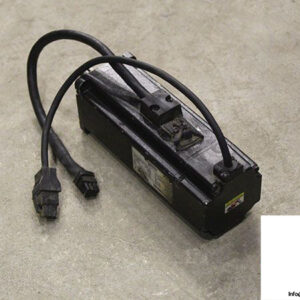

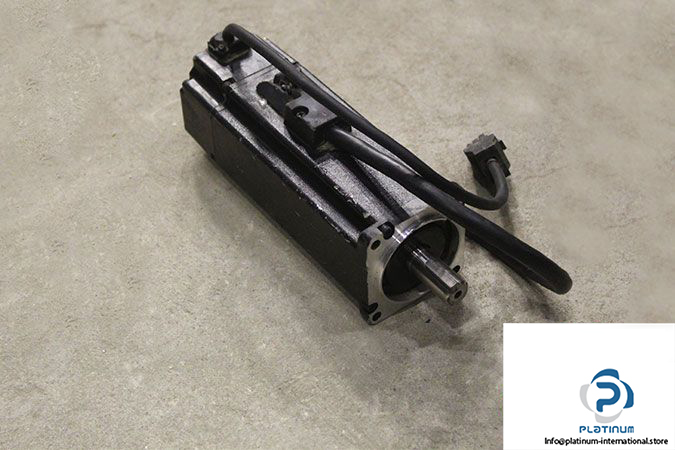

Schneider BCH0602O12F1C Servo Motor

Manufacturer: Schneider Electric, Elau

Type: Servo Motors

Model: BCH0602O12F1C

Rated Torque [Nm]: 1.27

Rated Current [A]: 2.6

Max Current [A]: 7.8

Rated Voltage [V]: 110

Rated Power [W]: 400

Rated Speed [rpm]: 3000

Max Speed [rpm]: 5000

Shaft End: Keyed

Brake Voltage [VDC]: 24

Brake Power [W]: 7.2

Flange Size [mm]: 60

Shaft Diameter [mm]: 14

Shaft Length [mm]: 24

Key Width [mm]: 5

Protection Class [IP]: 40

Thermal Class: A

Weight [kg]: 2.055
