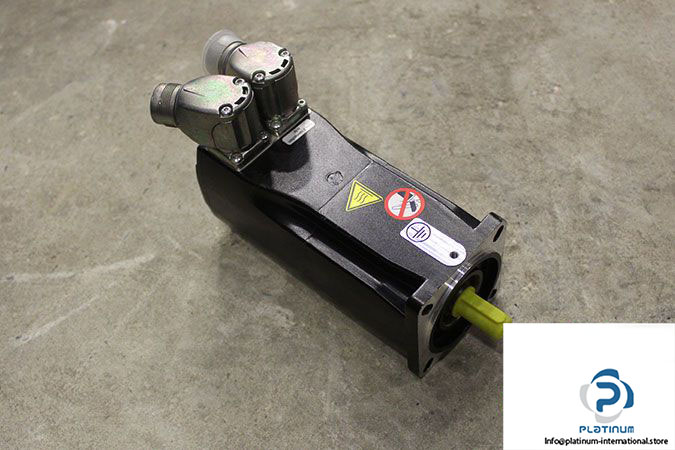

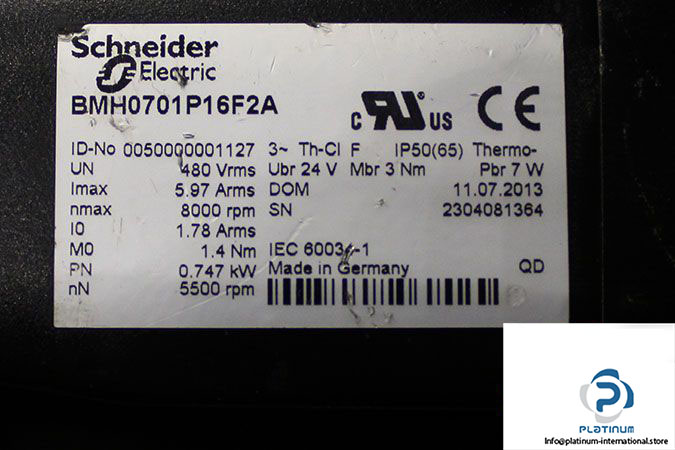

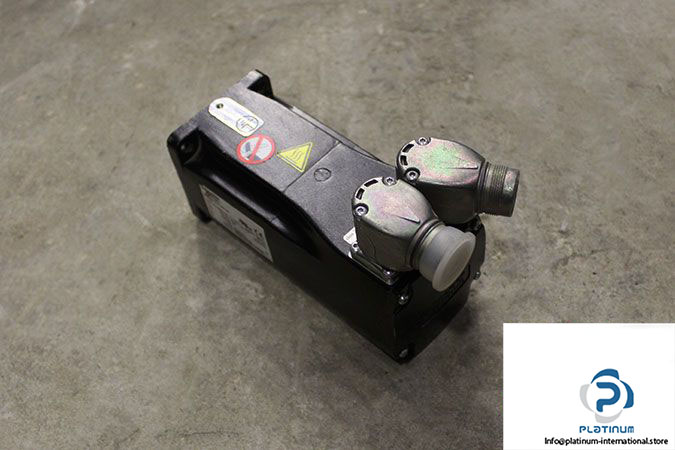

Schneider BMH0701P16F2A Servo Motor

Manufacturer: Schneider Electric, Elau

Type: Servo Motor

Model: BMH0701P16F2A

Device Short Name: BMH

Rated Supply Voltage [V]: 480

Nominal Speed [rpm]: 5500

Maximum Mechanical Speed [rpm]: 8000

Continuous Power [W]: 1.05

Continuous Stall Current [A]: 1.78

Maximum Permanent Current [A]: 5.97

Continuous Stall Torque [Nm]: 1.4

Torque Constant [Nm/A]: 0.79

Back emf Constant [V/krpm]: 50.72

Number of Motor Pole: 10

Brake Voltage [VDC]: 24

Brake Torque [Nm]: 3

Brake Power [W]: 7

Shaft End: Keyed

Shaft Diameter [mm]: 11

Shaft Length [mm]: 23

Key Width [mm]: 18

Motor Flange Size [mm]: 70

Network Number of Phases: Three phase

Speed feedback resolution: 32768 points/turn

Degree of Protection [IP]: 50 (65)

Thermal Class: F

Weight [kg]: 1.15
