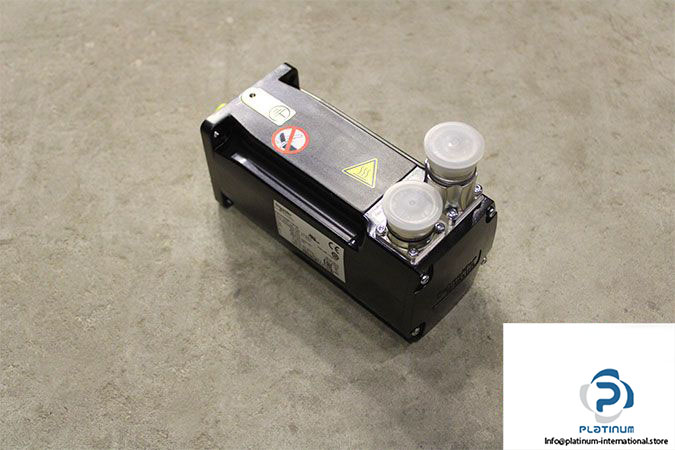

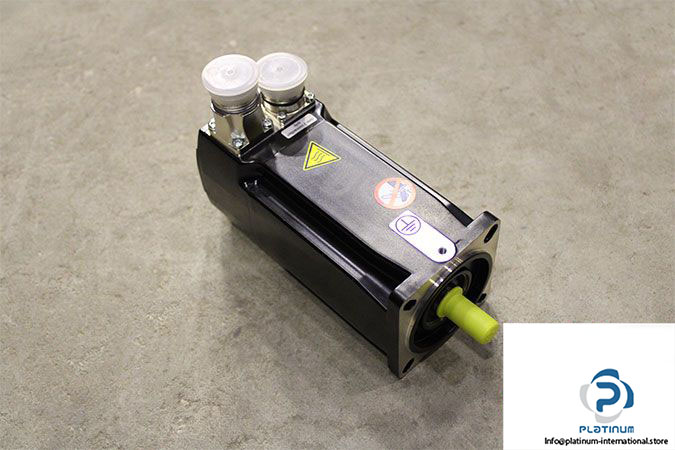

Schneider BMH0702P11A1A AC Servo Motor
New
In stock1 unitReady to ship
994,44$
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: Schneider Electric, Elau
Type: AC Servo Motors

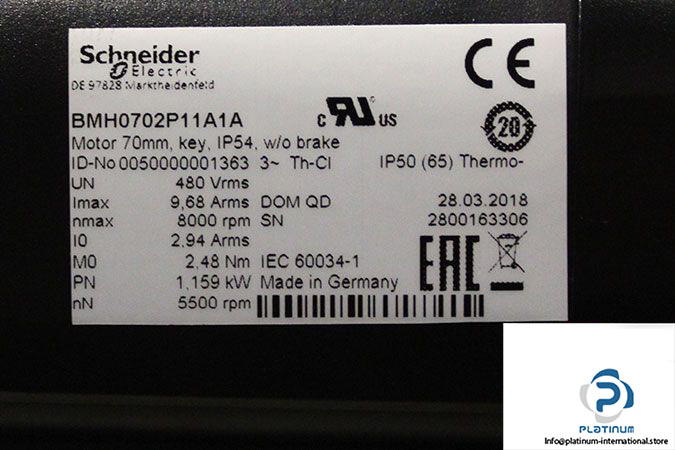

Model: BMH0702P11A1A
Stall Torque [Nm]: 2.48
Stall Current [A]: 2.94
Max Current [A]: 9.68
Rated Voltage [V]: 480
Rated Power [kW]: 1.159
Rated Speed [rpm]: 5500
Max Speed [rpm]: 8000
Number of Poles: 10
Flange Size [mm]: 70
Shaft Diameter [mm]: 14
Shaft Length [mm]: 23
Key Width [mm]: 18
Protection Class [IP]: 65
Thermal Class: F
Weight [kg]: 2.32
