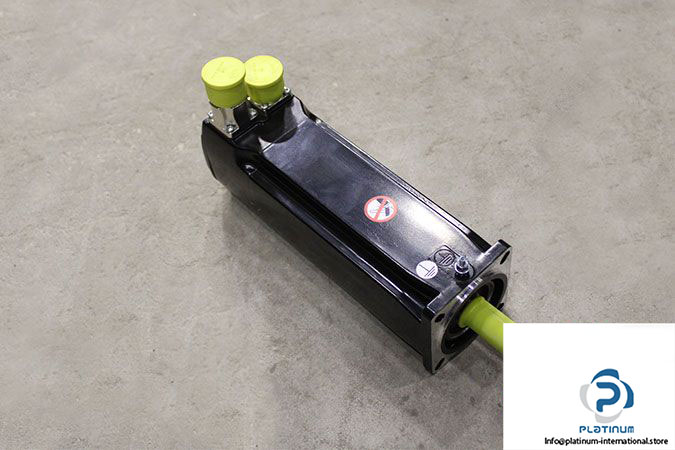

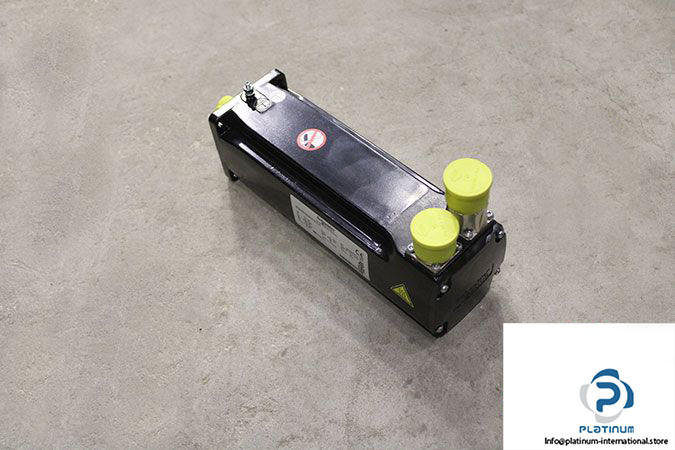

Schneider BSH0703P31A1A AC Servo Motor

Manufacturer: Schneider Electric, Elau

Type: AC Servo Motors

Model: BSH0703P31A1A

Stall Torque [Nm]: 3.1

Stall Current [A]: 4.1

Max Current [A]: 17.0

Rated Voltage [V]: 400

Max Supply Voltage [V]: 480

Rated Power [kW]: 1.45

Rated Speed [rpm]: 6000

Max Speed [rpm]: 8000

Number of Poles: 6

Flange Size [mm]: 70

Shaft Diameter [mm]: 14

Shaft Length [mm]: 30

Key Width [mm]: 20

Protection Class [IP]: 65

Thermal Class: F

Weight [kg]: 3.41
