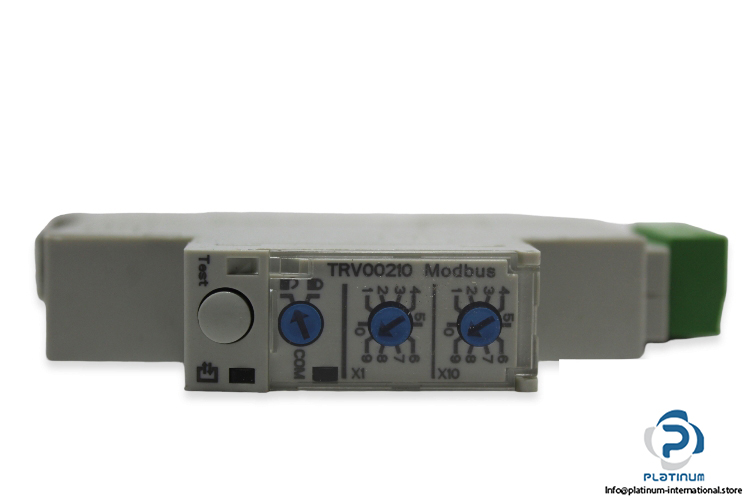

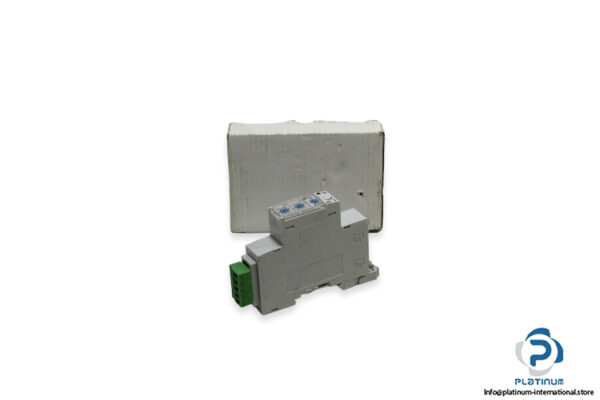

Schneider Electric TRV00210 Communication Interface Module

Manufacturer: Schneider Electric

Type: Communication Interface Module

Model: TRV00210

Rated supply voltage: 24 V DC -20 … 10 %

Maximum supply current: 3 A

Current consumption: 21 mA

Communication network type: Universal Logic Plug on 2-port RJ45 Modbus

Connections–terminals: Screw terminal block

Mounting: DIN rail

Frequency: 5 … 8.4 Hz

Degree of protection: Connectors: IP2X, Other parts: IP3x, IP4X

Operation temperature: -20 …7 0 °C

Dimension: 89 x 18 x 72 mm
