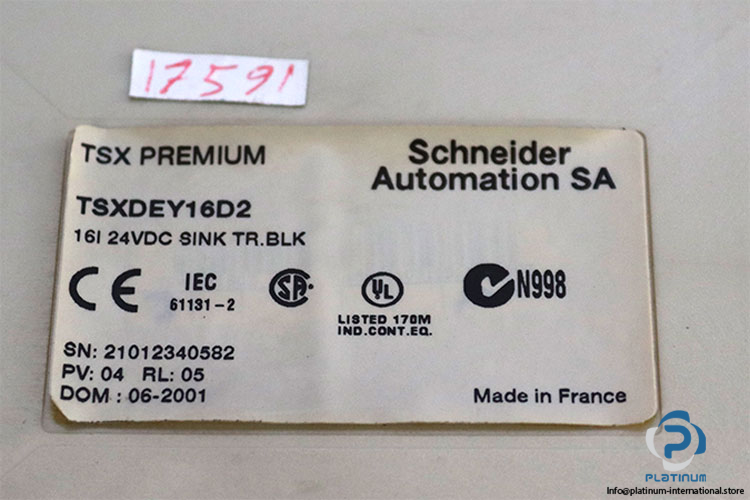

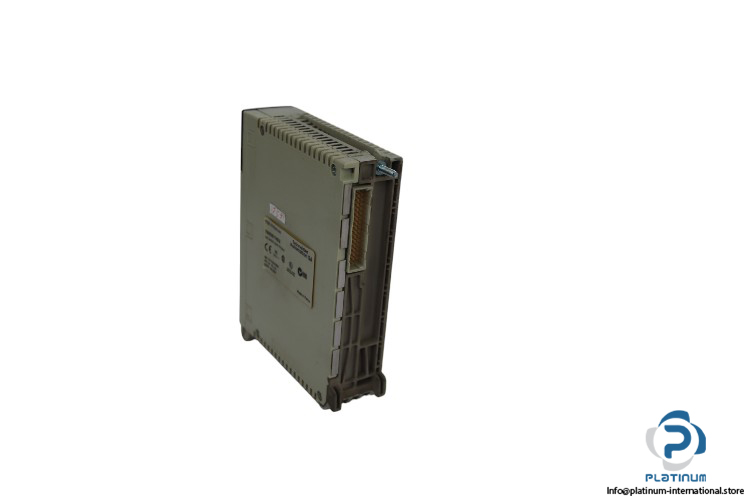

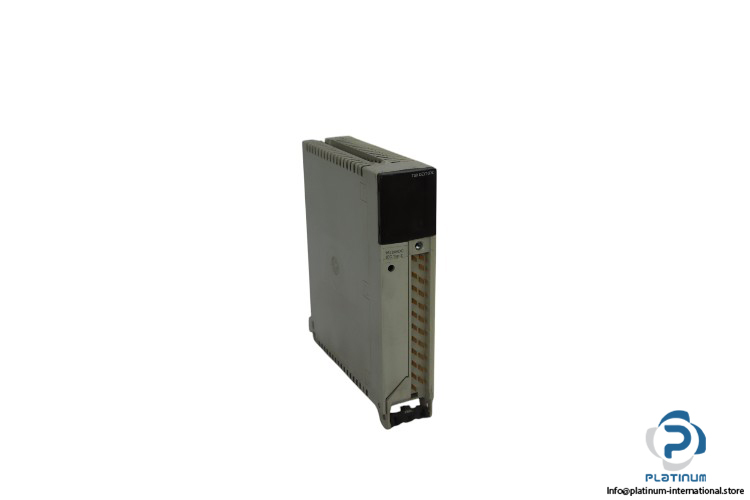

Schneider Electric TSXDEY16D2 Discrete Input Module

Schneider Electric Discrete Input Module TSXDEY16D2

The Schneider Electric Discrete Input Module TSXDEY16D2 is a reliable and versatile module for the Modicon Premium Automation platform. With 16 current sink isolated discrete inputs, this module operates at 24 V DC and consumes 7 mA per input. It ensures optimal performance with a response time of 4 ms (‰¤7 ms). With a power dissipation of 1 W + 0.15 W per channel, this module also provides a sensor power supply ranging from 19 to 30 V. Its robust design makes it suitable for industrial applications with an operating temperature range of 0 to 60°C. The electrical connection is made via screw terminals, and the protection degree is rated at IP20.

🔧 Technical Specifications:

• Manufacturer: Schneider Electric
• Type: Discrete Input Module
• Model Number: TSXDEY16D2
• Range: Modicon Premium Automation Platform
• Discrete Input Number: 16 current sink isolated
• Discrete Input Voltage: 24 V DC
• Discrete Input Current: 7 mA
• Current Consumption: 135 mA at 24 V DC, 80 mA at 5 V DC
• Sensor Power Supply: 19 to 30 V
• Response Time: 4 ms (‰¤7 ms)
• Power Dissipation: 1 W + 0.15 W x No. of channels used
• Electrical Connection: Screw terminal
• Operating Temperature: 0 to 60°C
• Standard: IEC 61131-2
• Protection Degree: IP20
