Schneider GV2P04 Circuit Breaker
Motor Circuit Breaker

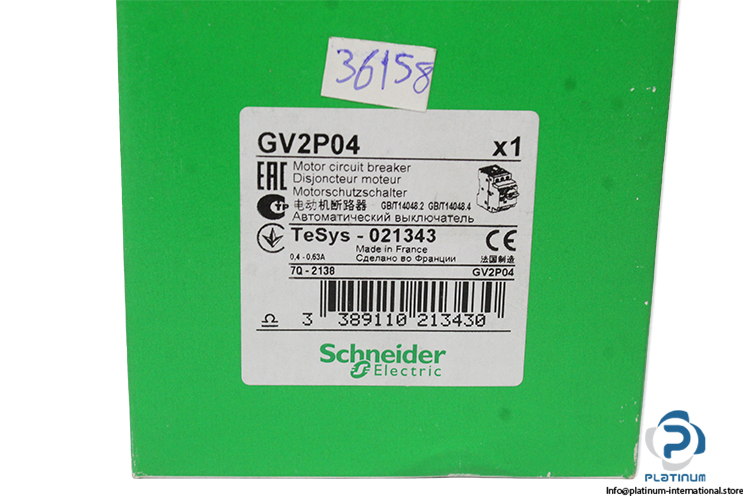

SCHNEIDER GV2P04 thermal-magnetic motor circuit breaker, 3P, 0.63 A rated current, adjustable 0.4“0.63 A range, 690 V AC, designed for reliable motor protection.SCHNEIDER GV2P04 Motor Circuit Breaker
The SCHNEIDER GV2P04 is a thermal-magnetic motor circuit breaker from the TeSys Deca range, designed for reliable motor protection in industrial AC networks. It provides precise overload and short-circuit protection with phase failure sensitivity and suitability for isolation.
Manufacturer: SCHNEIDER
Type: Circuit Breaker
Model: GV2P04
Part No.: 021343
Serial No.: 3389110213430
Range: TeSys Deca
Product Name: TeSys GV2
Product Or Component Type: Motor Circuit Breaker
Device Short Name: GV2P
Device Application: Motor Protection
Trip Unit Technology: Thermal-Magnetic
Motor Power (kW):
0.12 kW 400/415 V AC 50/60 Hz
0.18 kW 400/415 V AC 50/60 Hz
0.37 kW 690 V AC 50/60 Hz
Connections “ Terminals:
Power Circuit Screw Clamp Terminal 2 0.002 / 0.009 in² (1 / 6 mm²) Solid
Power Circuit Screw Clamp Terminal 2 0.002 / 0.009 in² (1.5 / 6 mm²) Flexible Without Cable End
Power Circuit Screw Clamp Terminal 2 0.002 / 0.006 in² (1 / 4 mm²) Flexible With Cable End
Dimensions:
Standards:
EN/IEC 60947-2
EN/IEC 60947-4-1
UL 60947-4-1
| Poles Description | 3P |
| Network Type | AC |
| Utilisation Category | Category A IEC 60947-2 / AC-3 IEC 60947-4-1 / AC-3e IEC 60947-4-1 |
| Network Frequency | 50/60 Hz IEC 60947-2 |
| Control Type | Rotary Handle |
| Line Rated Current | 0.63 A |
| Thermal Protection Adjustment Range | 0.4 / 0.63 A IEC 60947-2 |
| Magnetic Tripping Current | 9.3 A |
| [Ith] Conventional Free Air Thermal Current | 0.63 A IEC 60947-2 |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Ui] Rated Insulation Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-2 |
| Phase Failure Sensitivity | Yes IEC 60947-4-1 |
| Suitability For Isolation | Yes IEC 60947-1 |
| Power Dissipation Per Pole | 2.5 W |
| Rated Duty | Uninterrupted IEC 60947-4-1 |
| Tightening Torque | 15.05 lbf.in (1.7 N.m) Screw Clamp Terminal |
| Fixing Mode | 35 mm Symmetrical DIN Rail Clipped / Panel Screwed With 2 x M4 Screws |
| Mounting Position | Horizontal / Vertical |
| Width | 1.8 in (45 mm) |
| Height | 3.5 in (89 mm) |
| Depth | 3.8 in (97 mm) |
| CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40 | Annex JJ |
| IEC/EN 60335-1 | Clause 30.2 |
