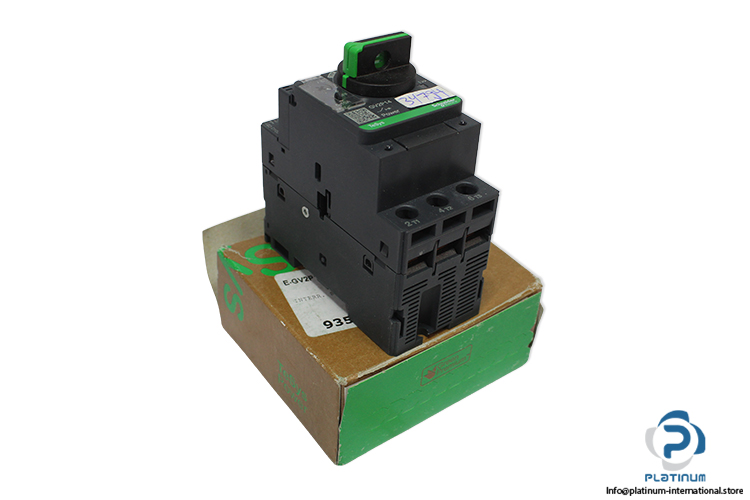

Schneider GV2P14 Motor Circuit Breaker
Motor Circuit Breaker
Schneider GV2P14 thermal-magnetic motor circuit breaker, 3P, 10 A rated current, 100 kA breaking capacity, designed for reliable motor protection in AC industrial systems.Schneider GV2P14 Motor Circuit Breaker
The Schneider GV2P14 Motor Circuit Breaker from the TeSys Deca range is designed for reliable motor protection in industrial AC networks. It features thermal-magnetic trip technology and a rotary handle control, ensuring safe and efficient motor control and protection.
Manufacturer: Schneider
Type: Motor Circuit Breaker
Model: GV2P14

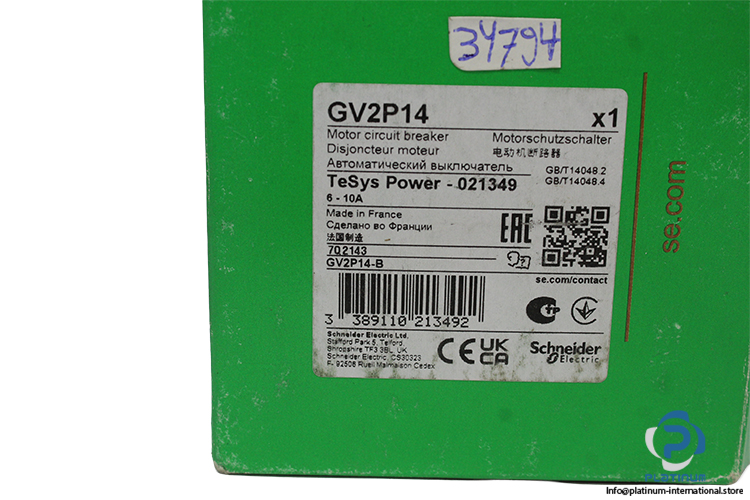

Code: GV2P14-B / 702143
Serial Number: 3389110213492
Range: TeSys Deca
Product Name: TeSys GV2 TeSys Deca
Device Short Name: GV2P
Device Application: Motor Protection
Fixing Mode:
Motor Power:
3 kW At 400/415 V AC 50/60 Hz
5 kW At 500 V AC 50/60 Hz
5.5 kW At 690 V AC 50/60 Hz

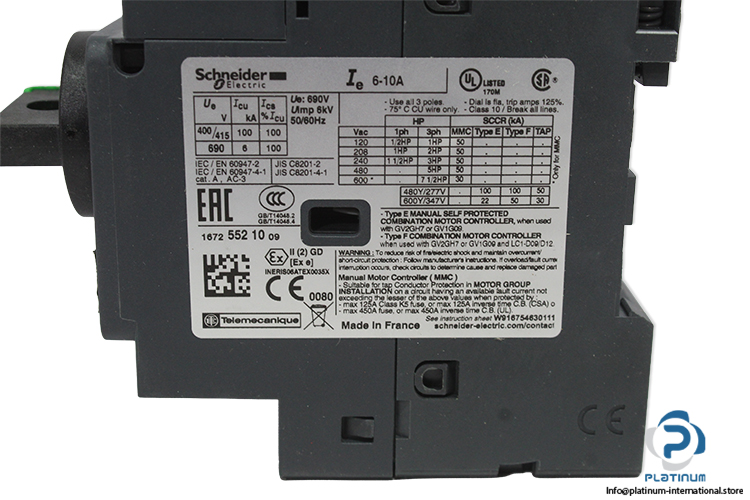

Breaking Capacity:
100 kA Icu At 230/240 V AC 50/60 Hz Conforming To IEC 60947-2
100 kA Icu At 400/415 V AC 50/60 Hz Conforming To IEC 60947-2
Dimensions:
| Product Or Component Type | Motor Circuit Breaker |
| Trip Unit Technology | Thermal-Magnetic |
| Poles Description | 3P |
| Network Type | AC |
| Utilisation Category | Category A Conforming To IEC 60947-2, AC-3 Conforming To IEC 60947-4-1 |
| Network Frequency | 50/60 Hz Conforming To IEC 60947-4-1 |

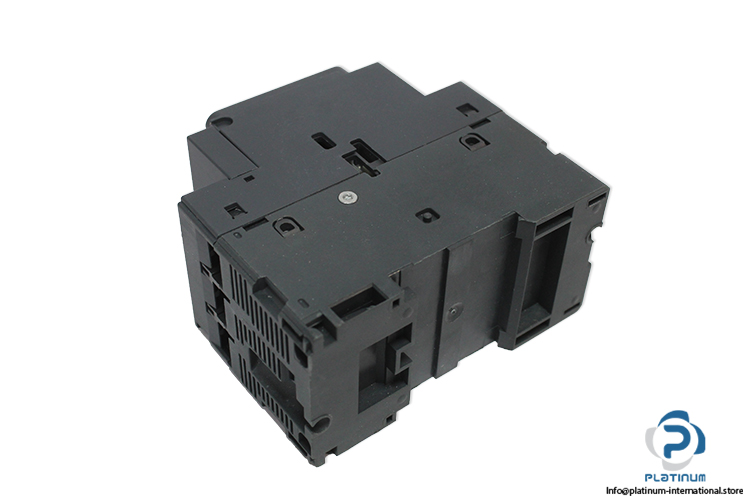

| 35 mm Symmetrical DIN Rail | Clipped |
| Panel | Screwed (With 2 x M4 Screws) |

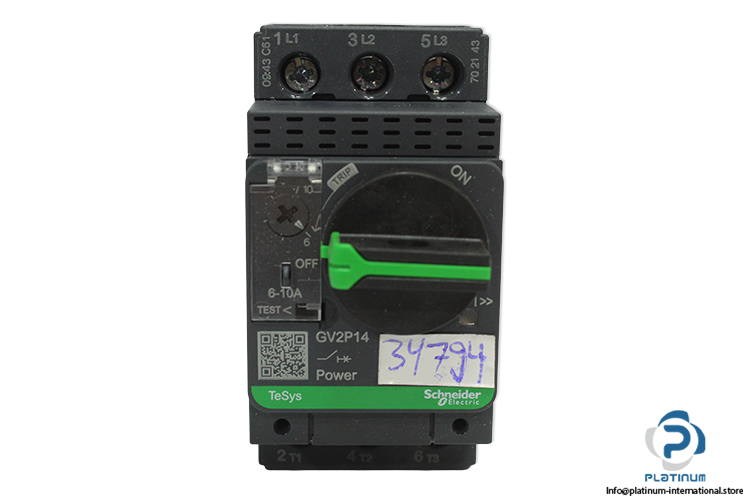

| Control Type | Rotary Handle |
| Rated Current [In] | 10 A |
| Thermal Protection Adjustment Range | 6 / 10 A Conforming To IEC 60947-4-1 |
| Magnetic Tripping Current | 138 A |
| Conventional Free Air Thermal Current [Ith] | 10 A Conforming To IEC 60947-4-1 |
| Rated Operational Voltage [Ue] | 690 V AC 50/60 Hz Conforming To IEC 60947-2 |
| Rated Insulation Voltage [Ui] | 690 V AC 50/60 Hz Conforming To IEC 60947-2 |
| Rated Impulse Withstand Voltage [Uimp] | 6 kV Conforming To IEC 60947-2 |
| Width | 45 mm |
| Height | 89 mm |
| Depth | 97 mm |
| Standards | EN/IEC 60947-2, EN/IEC 60947-4-1 |
| IP Degree Of Protection | IP20 |
| Ambient Air Temperature For Operation | -20 / 60 °C |
