Schneider GV2P22 Motor Circuit Breaker
Motor Circuit Breaker

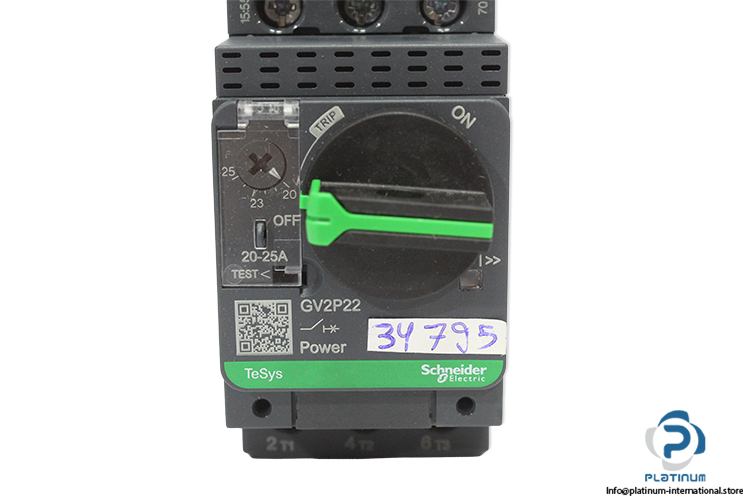

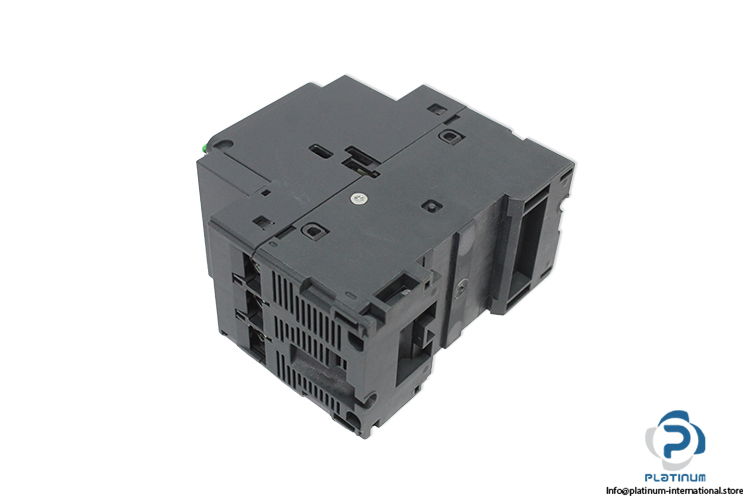

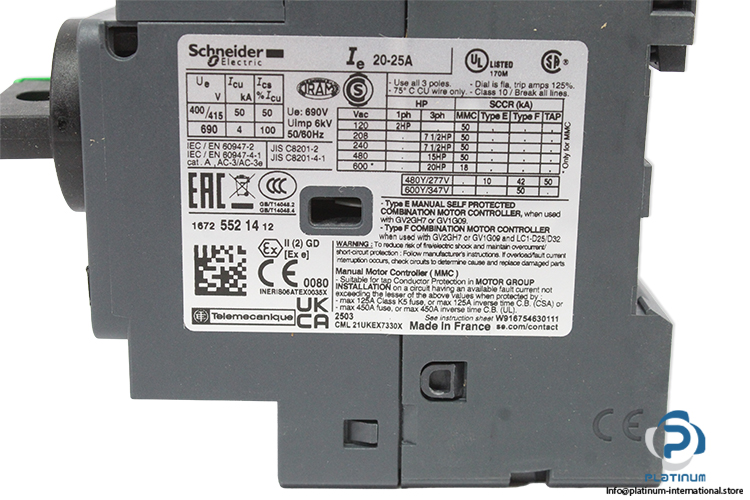

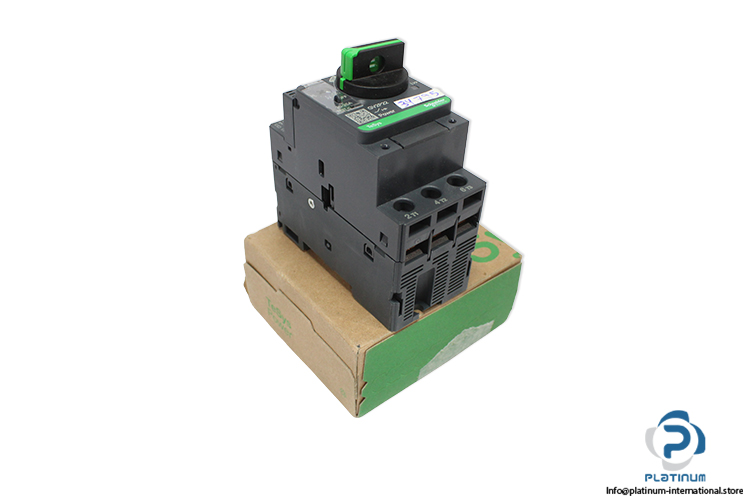

SCHNEIDER GV2P22 3P motor circuit breaker with thermal-magnetic trip unit, 25 A rated current, and high breaking capacity up to 100 kA for reliable motor protection.SCHNEIDER GV2P22 Motor Circuit Breaker
The SCHNEIDER GV2P22 motor circuit breaker from the TeSys Deca range is designed for reliable motor protection in industrial applications. It features thermal-magnetic trip technology and provides high breaking capacity with precise overload and short-circuit protection.
Manufacturer: SCHNEIDER
Type: Motor Circuit Breaker
Model: GV2P22
Code: 702421
Range: TeSys Deca
Product Name: TeSys GV2
Device Short Name: GV2P
Device Application: Motor Protection
Trip Unit Technology: Thermal-Magnetic
Poles Description: 3P
Network Type: AC
Utilisation Category:
Category A conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1
AC-3e conforming to IEC 60947-4-1
Motor Power:
11 kW at 400/415 V AC 50/60 Hz
15 kW at 500 V AC 50/60 Hz
Breaking Capacity:
100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Dimensions:
Standards:
EN/IEC 60947-2
EN/IEC 60947-4-1
UL 60947-4-1
| Network Frequency | 50/60 Hz conforming to IEC 60947-2 |
| Control Type | Rotary Handle |
| Rated Current [In] | 25 A |
| Thermal Protection Adjustment Range | 20 / 25 A conforming to IEC 60947-2 |
| Magnetic Tripping Current | 388.3 A |
| Conventional Free Air Thermal Current [Ith] | 25 A conforming to IEC 60947-2 |
| Rated Operational Voltage [Ue] | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated Insulation Voltage [Ui] | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Rated Impulse Withstand Voltage [Uimp] | 6 kV conforming to IEC 60947-2 |
| Phase Failure Sensitivity | Yes conforming to IEC 60947-4-1 |
| Suitability For Isolation | Yes conforming to IEC 60947-1 |
| Power Dissipation Per Pole | 2.5 W |
| Width | 45 mm |
| Height | 89 mm |
| Depth | 97 mm |
| CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40 | Annex JJ |
| IEC/EN 60335-1 | Clause 30.2 |
| Ambient Air Temperature For Operation | -20 / 60 °C |
